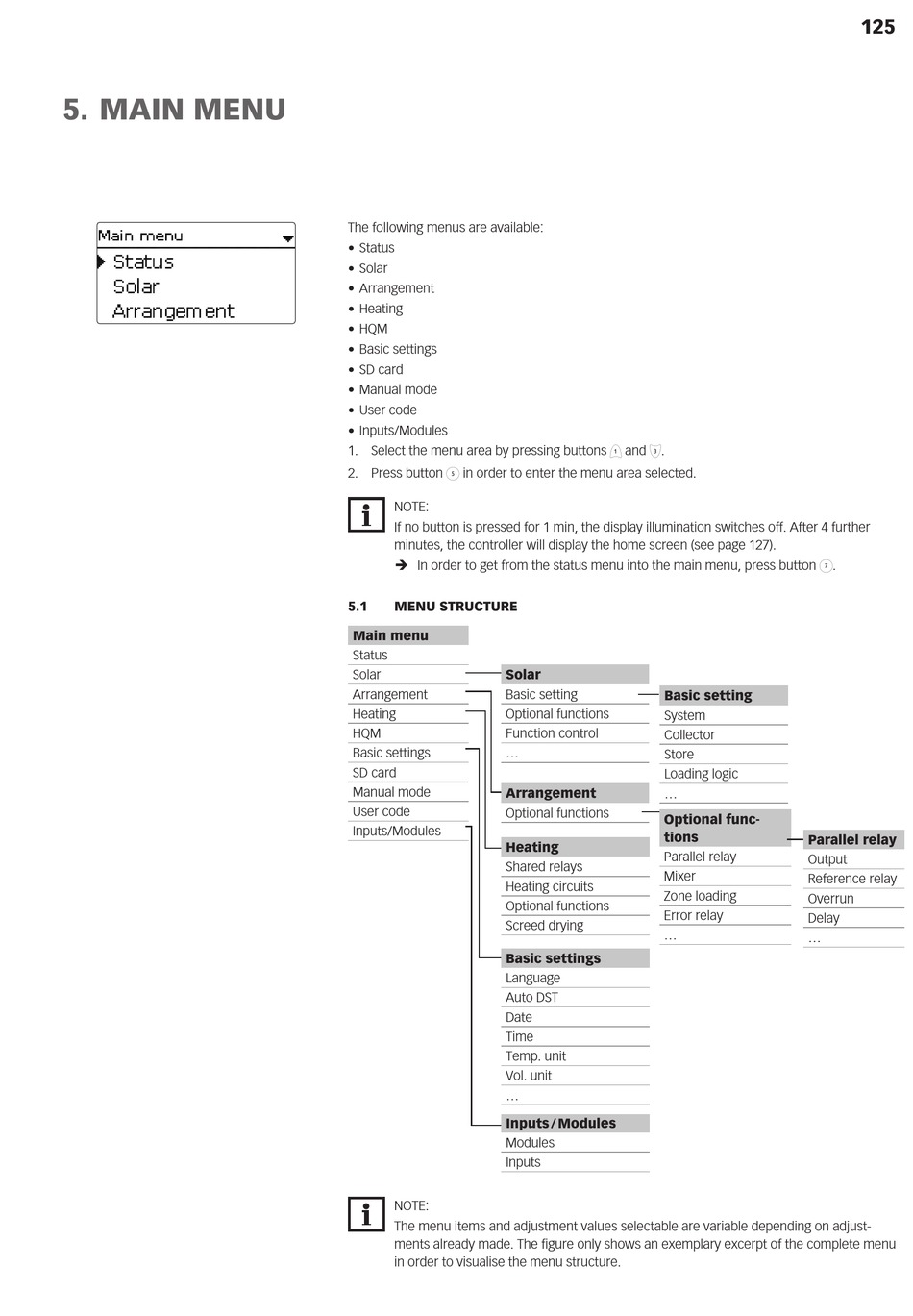

5. MAIN MENU

The following menus are available:
• Status
• Solar
• Arrangement
• Heating
• HQM
• Basic settings
• SD card
• Manual mode
• User code
• Inputs/Modules
1. Select the menu area by pressing buttons ❶ and ❸.
2. Press button ➄ in order to enter the menu area selected.
NOTE:
If no button is pressed for 1 min, the display illumination switches off. After 4 further
minutes, the controller will display the home screen (see page 127).
Î In order to get from the status menu into the main menu, press button ➆.
5.1

MENU STRUCTURE

Main menu
Status
Solar Solar
Arrangement Basic setting
Heating Optional functions
HQM Function control
Basic settings ...
SD card
Manual mode
Arrangement
User code
Optional functions
Inputs/Modules
Heating
Shared relays
Heating circuits
Optional functions
Screed drying
Basic settings
Language
Auto DST
Date
Time
Temp. unit
Vol. unit
...
Inputs / Modules
Modules
Inputs
NOTE:
The menu items and adjustment values selectable are variable depending on adjust-
ments already made. The figure only shows an exemplary excerpt of the complete menu
in order to visualise the menu structure.
Basic setting
System
Collector
Store
Loading logic
...
Optional func-
tions
Parallel relay
Parallel relay
Output
Mixer
Reference relay
Zone loading
Overrun
Error relay
Delay
...
...
