9. HEATING
Energy saving operation

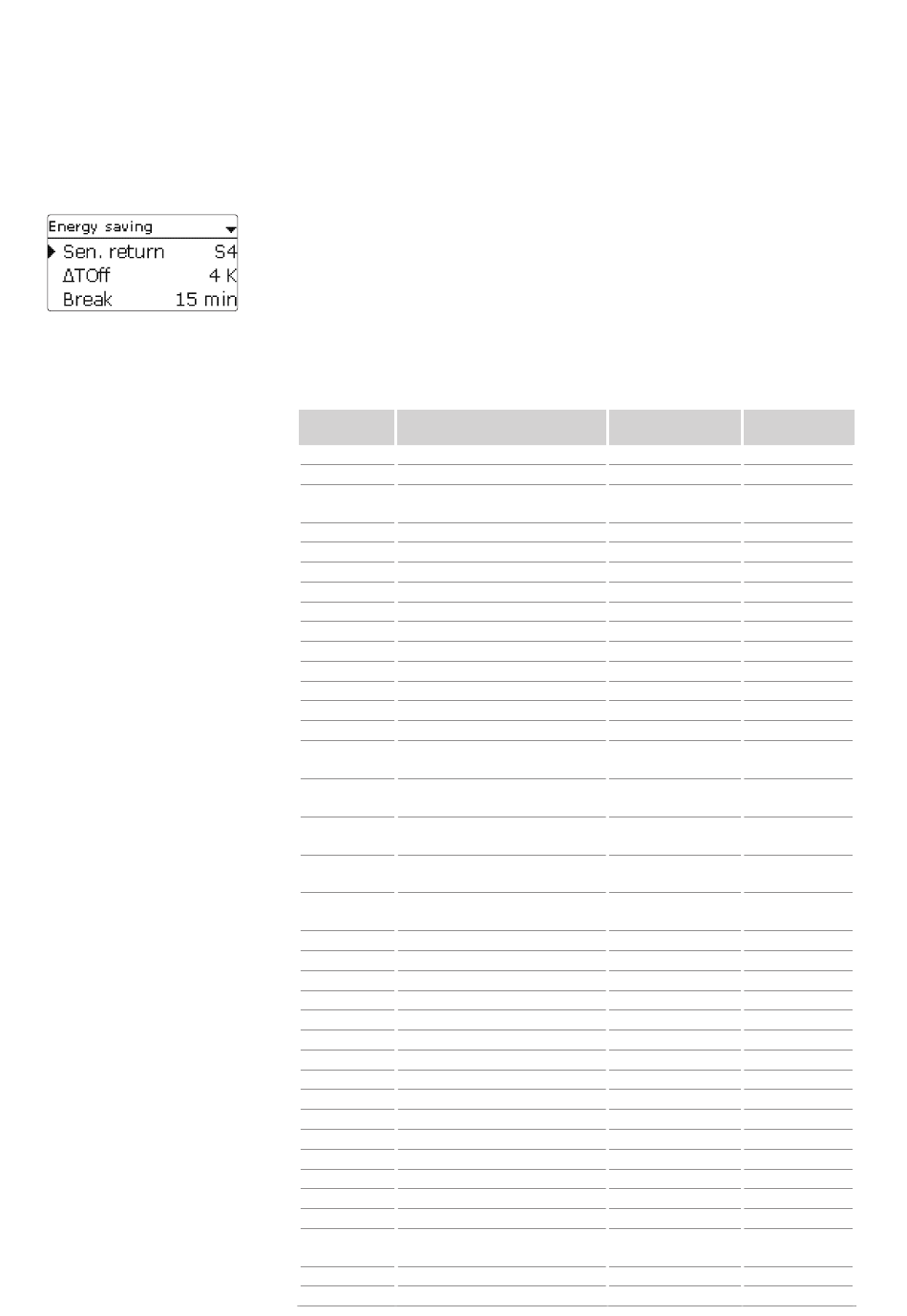

This option is used for optimising the energy consumption of the heating circuit pump. For this
purpose an additional sensor in the heating circuit return is required. The controller monitors the
temperature difference between the flow and the return of the heating circuit. If the tempera-
ture difference falls below the switch-off difference, the controller deactivates the heating circuit
pump for the adjusted break time. After the break time has elapsed, the pump is activated for
the runtime. If the temperature difference is higher than the switch-off difference, the pump
remains active. If the temperature difference is below the switch-off difference, the break time
will start again.
Heating / Heating circuits / New HC... / Internal or Module 1 ... 2
Adjustment
Description
channel
System Heating circuit mode selection
Heat. sys. Heating system submenu
Mode Heating system operating mode
Curve Heating curve
Room factor Room influence factor
TFlowset Set flow temperature
TOutdoor 1 Lower outdoor temperature
TFlow 1 Lower set flow temperature
TOutdoor 2 Upper outdoor temperature
TFlow 2 Upper set flow temperature
TStart Starting temperature
TFlowmin Minimum flow temperature
TFlowmax Maximum flow temperature
Interval Mixer interval
HC pump Heating circuit pump output
selection
Mixer op. Output selection mixer open
Mixer cl. Output selection mixer closed
Sen. flow Flow sensor selection
Sen. outd. Outdoor sensor selection
Day corr. Correction for day operation
Night corr. Correction for night operation
Timer Timer function correction mode
Mode Correction mode
Timer Timer function submenu
Summer oper. Summer operation option
Summer oper. Summer operation submenu
Mode Summer operating mode
TDay off Summer temperature day
TNight off Summer temperature night
Daytime on Day time frame on
Daytime off Day time frame off
Remote access Remote access option
Remote access Remote access submenu
Mode Remote access mode
Sen. BAS Allocation operating mode switch
input
Sen. RC Allocation remote control input
Room therm. Room thermostats submenu
Adjustment range
Factory setting
/ selection
Heat, Cool, Heat/Cool Heat
- -
Linear, Constant, Curve, Curve
Room, Room infl.
0.3 ... 3.0 1.0
1 ... 10 5
10 ... 90 °C 45 °C
-20 ... +20 °C +20 °C
20 ... 90 °C 20 °C
-20 ... +20 °C -20 °C
20 ... 90 °C 70 °C
20 ... 60 °C 40 °C
20 ... 89 °C 20 °C
21 ... 90 °C 50 °C
1 ... 20 s 2 s
system dependent system depend-
ent
system dependent system depend-
ent
system dependent system depend-
ent
system dependent system depend-
ent
system dependent system depend-
ent
-5 ... +45 K 0 K
-20 ... +30 K -5 K
Yes, No Yes
Day/Night, Day/Off Day/Night
- -
Yes, No Yes
- -
Day/Night, Day Day/Night
0 ... 40 °C 20 °C
0 ... 40 °C 14 °C
00:00 ... 23:45 06:00
00:00 ... 23:45 22:00
Yes, No No
- -
BAS, Fern, App BAS
all inputs type = BAS -
all inputs type = Fern -
- -
