Manual Mode - Cosmo Multi 3 Montage- Und Bedienungsanleitung

172

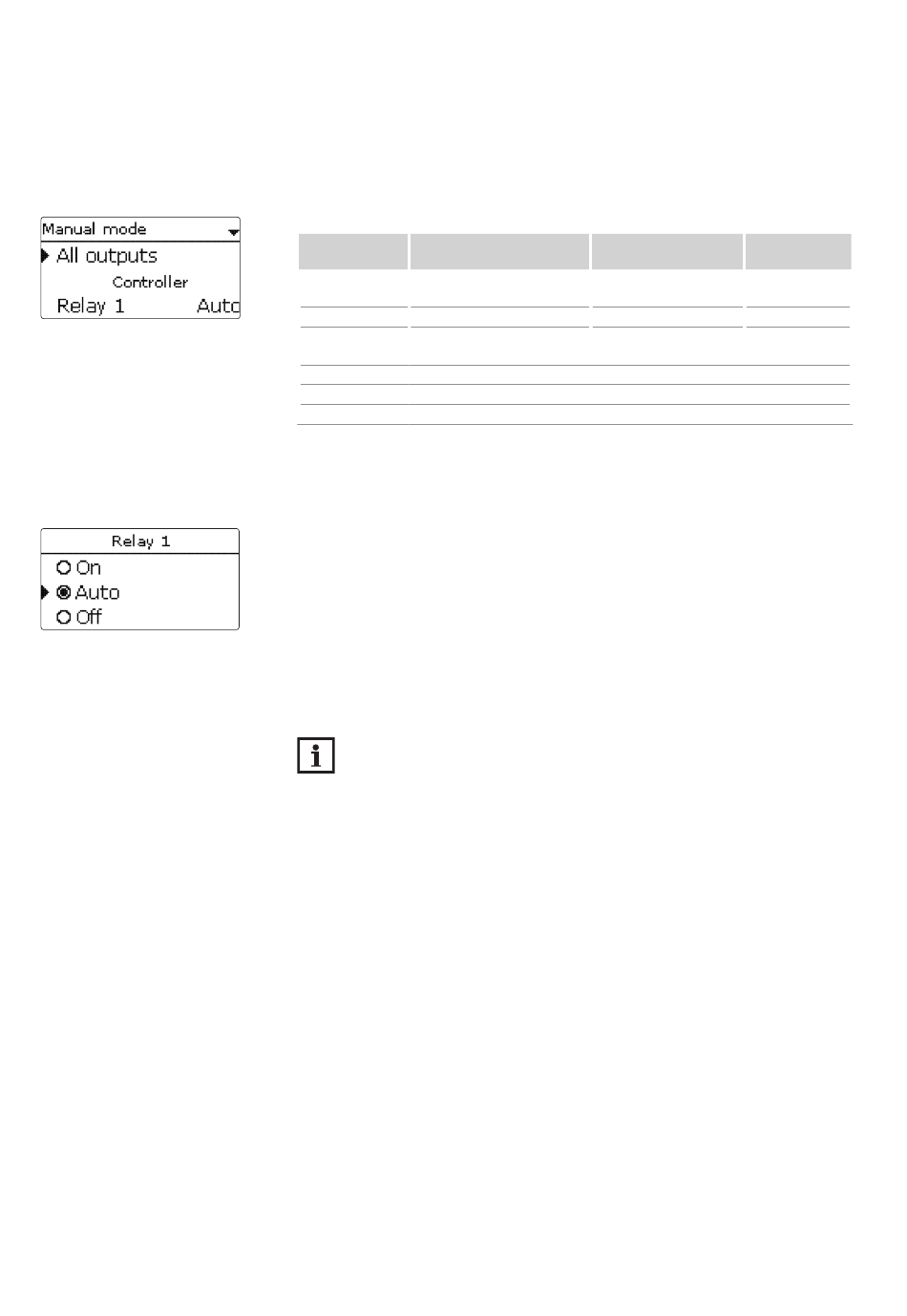

13. MANUAL MODE

Manual mode
Adjustment
Description
channel
All outputs... Selection operating mode of
all relays
Relay 1 ... X Operating mode of relay
Output A ... B Operating mode of signal
output
Demand 1 (2) Operating mode of demand
Pump 1 (2) Operating mode of pump
Valve 1 (2) Operating mode of valve
In the Manual mode menu, the operating mode of all outputs in the controller and in modules
connected can be adjusted.
In the All outputs... menu, all outputs can at once be switched off (Off) or set to automatic
mode (Auto):
Off = Output is switched off (manual mode)
Auto = Output is in automatic mode
The operating mode can be selected for each individual output, too. The following options are
available:
Off = Output is switched off (manual mode)
On = Output is active at 100 % speed (manual mode)
Auto = Output is in automatic mode
Min. = Output is active at minimum speed (manual mode)
Max. = Output is active at maximum speed (manual mode)
NOTE:
After service and maintenance work, the relay mode must be set back to Auto. In man-
ual mode the control logic is suspended.
Adjustment range / Factory set-
selection ting
Auto, Off Off
On, Auto, Off Auto
On, Max., Auto, Min., Off Auto
Max., Auto, Min., Off Auto
Max., Auto, Min., Off Auto
Max., Auto, Min., Off Auto
