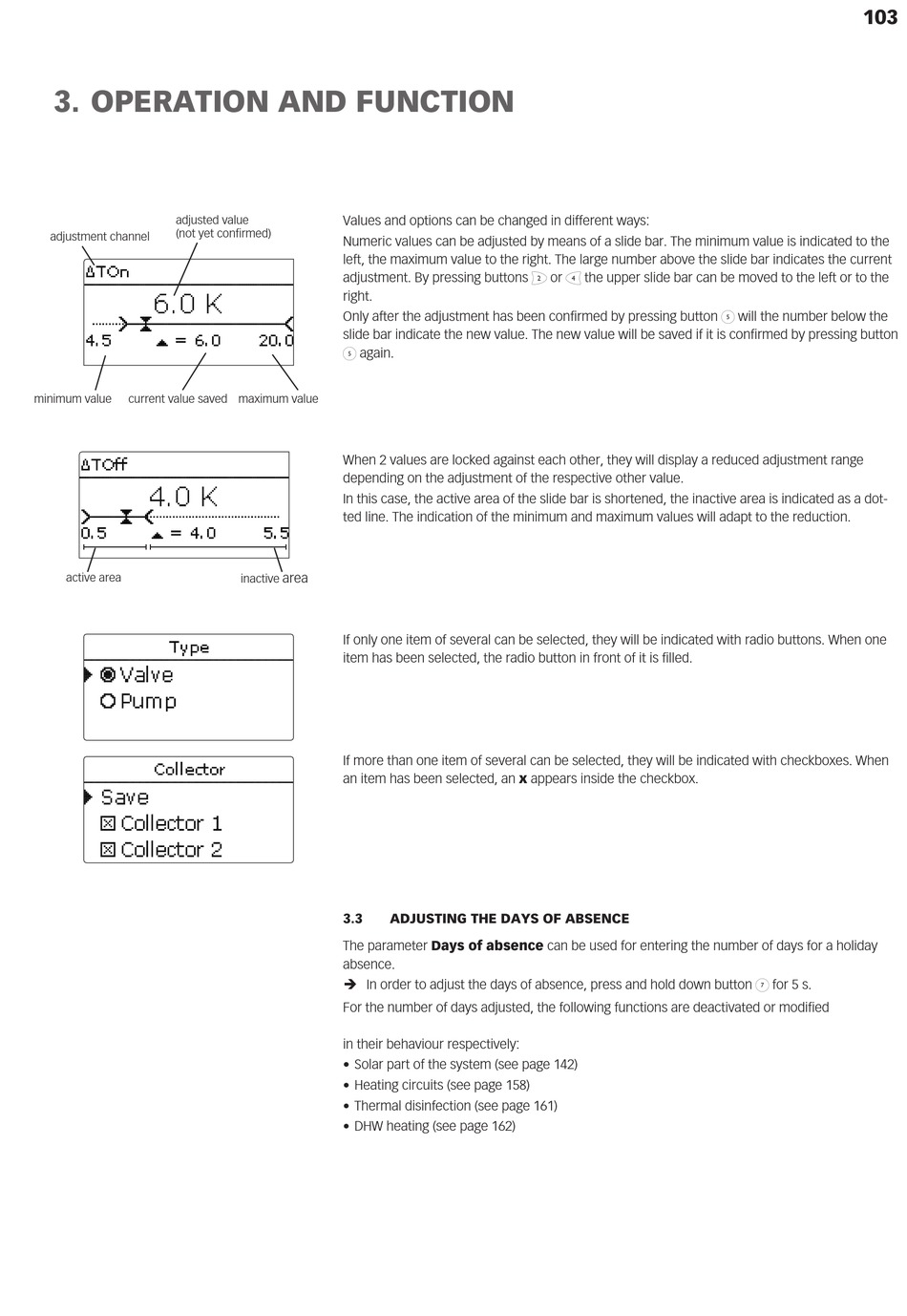

3. OPERATION AND FUNCTION
adjusted value
(not yet confirmed)
adjustment channel
minimum value current value saved
active area
Values and options can be changed in different ways:
Numeric values can be adjusted by means of a slide bar. The minimum value is indicated to the
left, the maximum value to the right. The large number above the slide bar indicates the current
adjustment. By pressing buttons ❷ or ❹ the upper slide bar can be moved to the left or to the
right.
Only after the adjustment has been confirmed by pressing button ➄ will the number below the
slide bar indicate the new value. The new value will be saved if it is confirmed by pressing button
➄ again.
maximum value
When 2 values are locked against each other, they will display a reduced adjustment range
depending on the adjustment of the respective other value.
In this case, the active area of the slide bar is shortened, the inactive area is indicated as a dot-
ted line. The indication of the minimum and maximum values will adapt to the reduction.
area
inactive
If only one item of several can be selected, they will be indicated with radio buttons. When one
item has been selected, the radio button in front of it is filled.
If more than one item of several can be selected, they will be indicated with checkboxes. When
an item has been selected, an x appears inside the checkbox.
3.3

ADJUSTING THE DAYS OF ABSENCE

The parameter Days of absence can be used for entering the number of days for a holiday
absence.
Î In order to adjust the days of absence, press and hold down button ➆ for 5 s.
For the number of days adjusted, the following functions are deactivated or modified
in their behaviour respectively:
• Solar part of the system (see page 142)
• Heating circuits (see page 158)
• Thermal disinfection (see page 161)
• DHW heating (see page 162)
103
