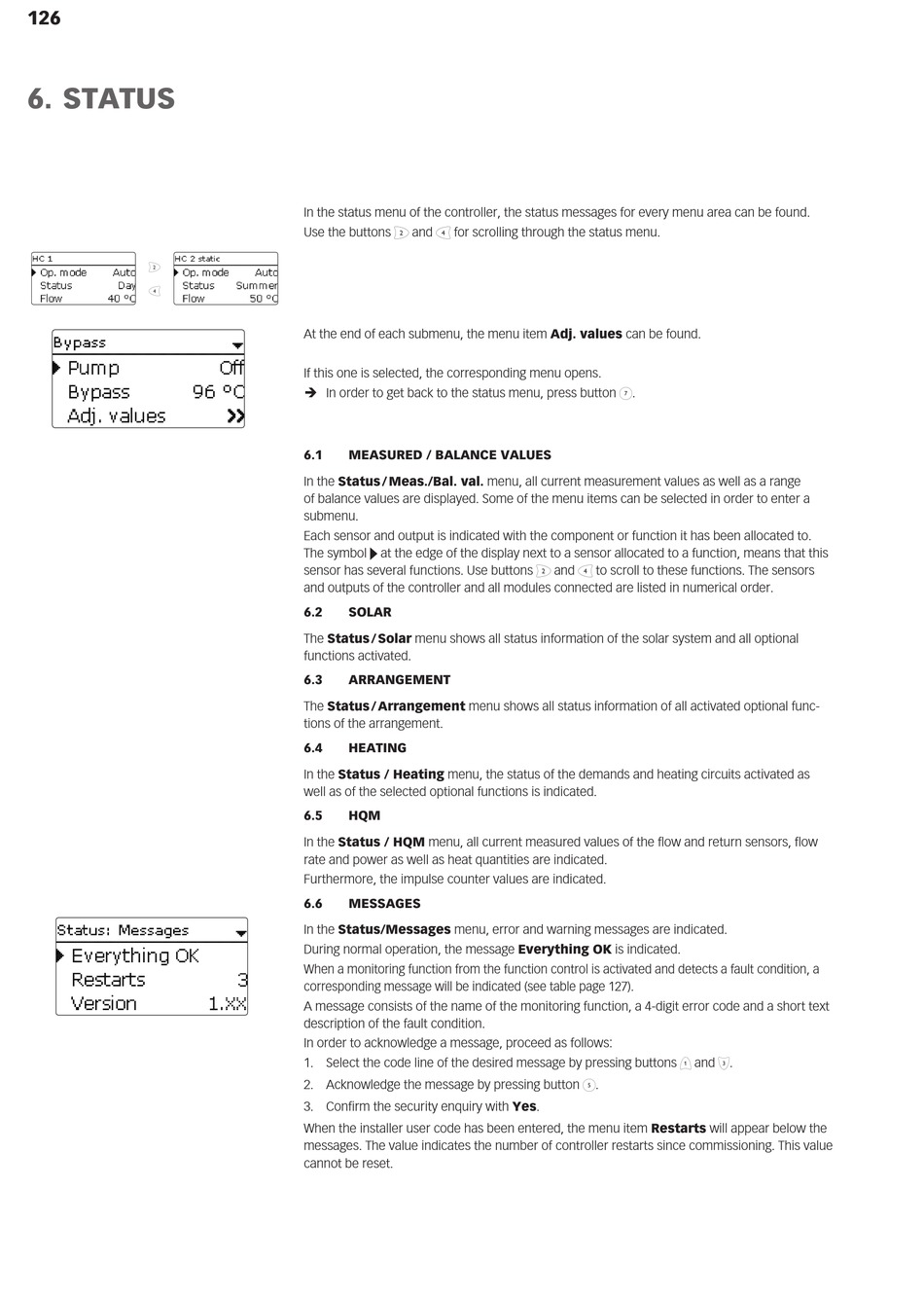

6. STATUS

❷
❹
In the status menu of the controller, the status messages for every menu area can be found.
Use the buttons ❷ and ❹ for scrolling through the status menu.
At the end of each submenu, the menu item Adj. values can be found.
If this one is selected, the corresponding menu opens.
Î In order to get back to the status menu, press button ➆.
6.1

MEASURED / BALANCE VALUES

In the Status / Meas./Bal. val. menu, all current measurement values as well as a range
of balance values are displayed. Some of the menu items can be selected in order to enter a
submenu.
Each sensor and output is indicated with the component or function it has been allocated to.
The symbol ▶ at the edge of the display next to a sensor allocated to a function, means that this
sensor has several functions. Use buttons ❷ and ❹ to scroll to these functions. The sensors
and outputs of the controller and all modules connected are listed in numerical order.
6.2

SOLAR

The Status / Solar menu shows all status information of the solar system and all optional
functions activated.
6.3

ARRANGEMENT

The Status / Arrangement menu shows all status information of all activated optional func-
tions of the arrangement.
6.4

HEATING

In the Status / Heating menu, the status of the demands and heating circuits activated as
well as of the selected optional functions is indicated.
6.5

HQM

In the Status / HQM menu, all current measured values of the flow and return sensors, flow
rate and power as well as heat quantities are indicated.
Furthermore, the impulse counter values are indicated.
6.6

MESSAGES

In the Status/Messages menu, error and warning messages are indicated.
During normal operation, the message Everything OK is indicated.
When a monitoring function from the function control is activated and detects a fault condition, a
corresponding message will be indicated (see table page 127).
A message consists of the name of the monitoring function, a 4-digit error code and a short text
description of the fault condition.
In order to acknowledge a message, proceed as follows:
1. Select the code line of the desired message by pressing buttons ❶ and ❸.
2. Acknowledge the message by pressing button ➄.
3. Confirm the security enquiry with Yes.
When the installer user code has been entered, the menu item Restarts will appear below the
messages. The value indicates the number of controller restarts since commissioning. This value
cannot be reset.
