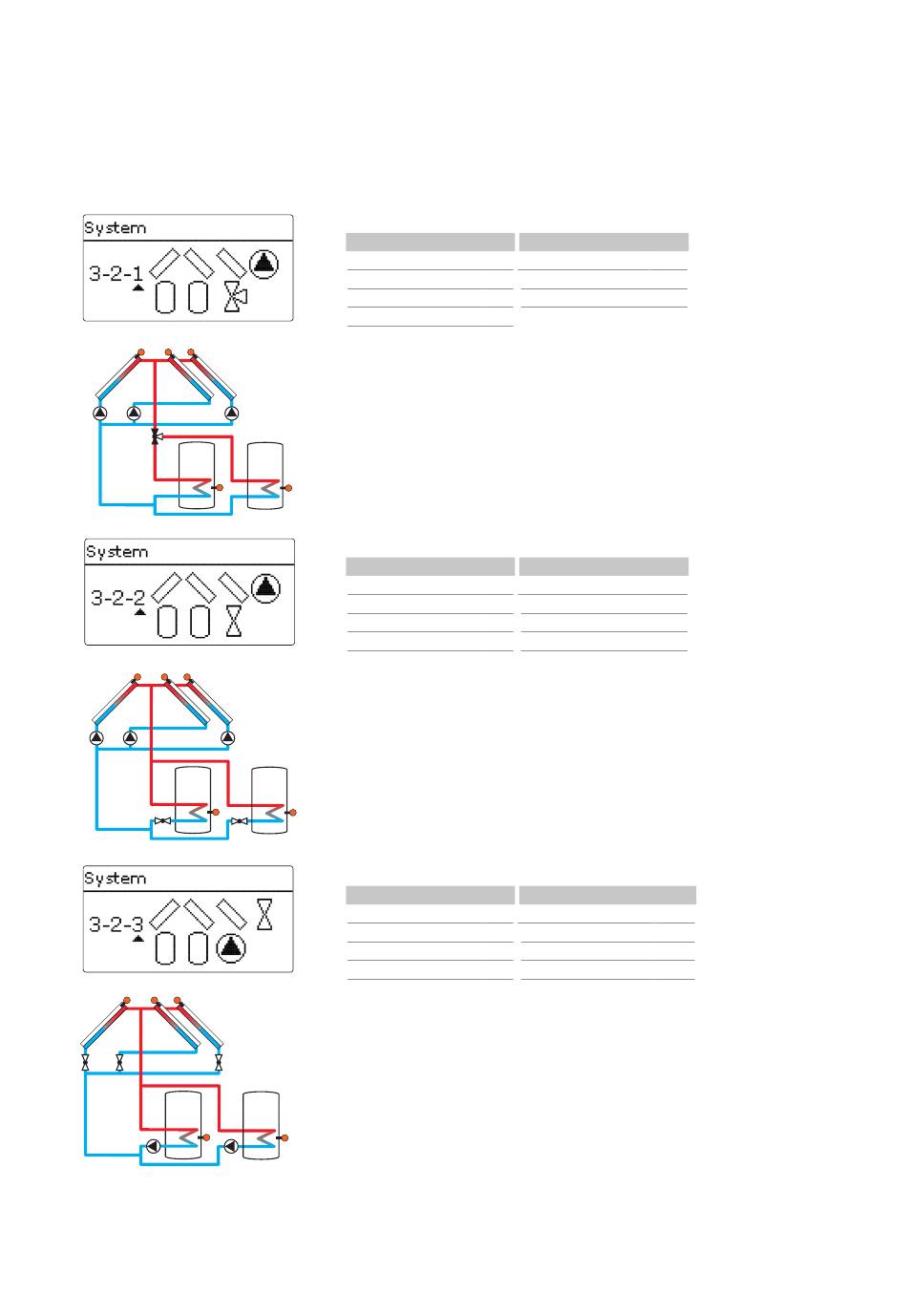

4. COMMISSIONING
S1 S6 S8
R1; A
R2; B
R3
S2
S1 S6 S8
R1; A
R2; B
S2
R3
S1 S6 S8
R2 R5
R1
S2
R3; A
R4; B
System 3.2.1
Sensors
Collector 1
Store 1 base
R3
Store 2 base
Collector 2
Collector 3
R4
S4
System 3.2.2
Sensors
Collector 1
Store 1 base
Store 2 base
Collector 2
Collector 3
R5
S4
R4
System 3.2.3
Sensors
Collector 1
Store 1 base
Store 2 base
Collector 2
Collector 3
S4
Relays; PWM / 0-10 V
S1 Pump collector 1 R1; A
S2 Pump collector 2 R2; B
S4 3-PV store 2 R3
S6 Pump collector 3 R4
S8
Relays; PWM / 0-10 V
S1 Pump collector 1 R1; A
S2 Pump collector 2 R2; B
S4 2-PV store 1 R3
S6 2-PV store 2 R4
S8 Pump collector 3 R5
Relays; PWM / 0-10 V
S1 2-PV collector 1 R1
S2 2-PV collector 2 R2
S4 Solar pump store 1 R3; A
S6 Solar pump store 2 R4; B
S8 2-PV collector 3 R5
