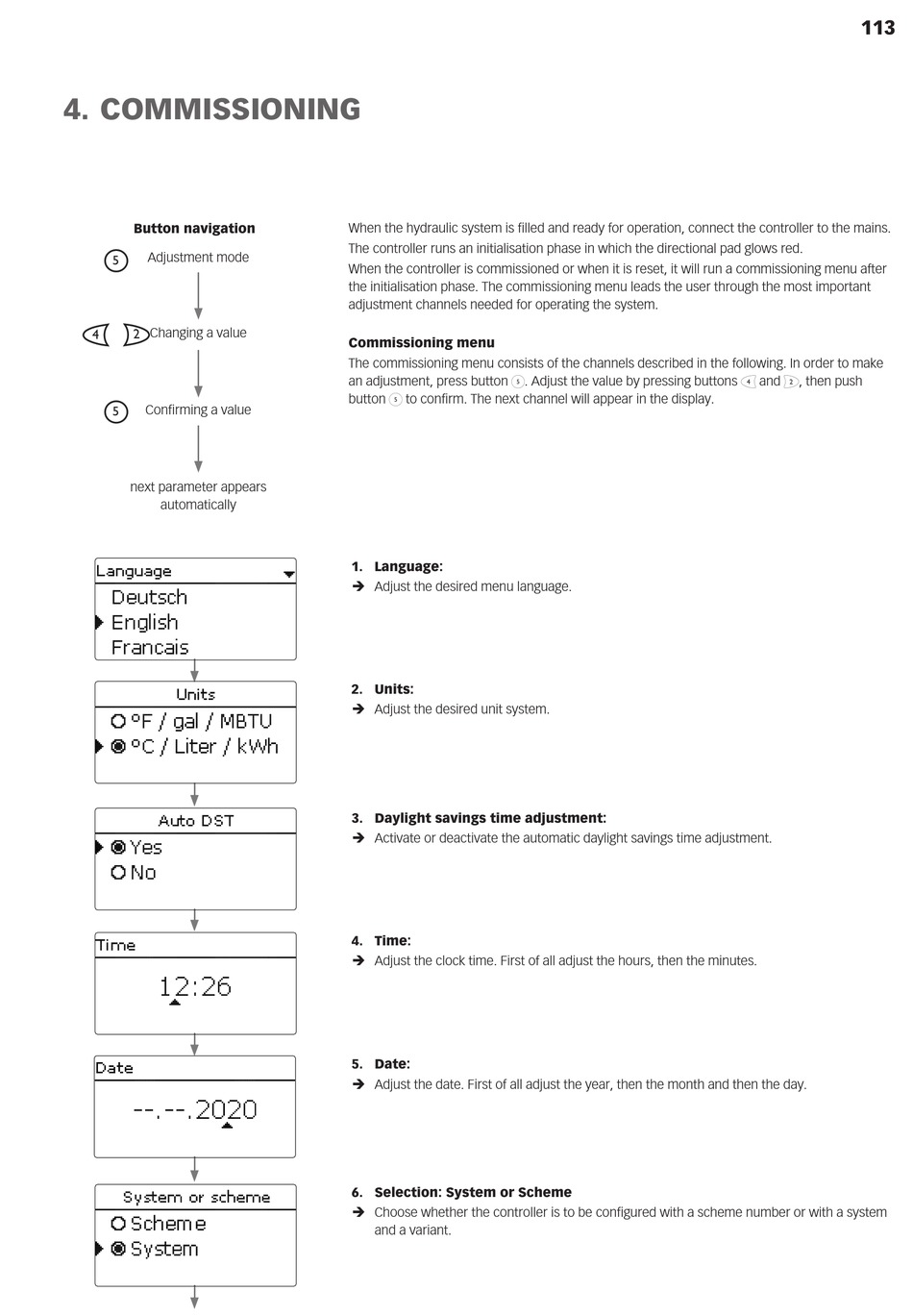

4. COMMISSIONING

Button navigation
Adjustment mode
5
Changing a value
2
4
Confirming a value
5
next parameter appears
automatically
When the hydraulic system is filled and ready for operation, connect the controller to the mains.
The controller runs an initialisation phase in which the directional pad glows red.
When the controller is commissioned or when it is reset, it will run a commissioning menu after
the initialisation phase. The commissioning menu leads the user through the most important
adjustment channels needed for operating the system.
Commissioning menu
The commissioning menu consists of the channels described in the following. In order to make
an adjustment, press button ➄. Adjust the value by pressing buttons ❹ and ❷, then push
button ➄ to confirm. The next channel will appear in the display.
1. Language:
Î Adjust the desired menu language.
2. Units:
Î Adjust the desired unit system.
3. Daylight savings time adjustment:
Î Activate or deactivate the automatic daylight savings time adjustment.
4. Time:
Î Adjust the clock time. First of all adjust the hours, then the minutes.
5. Date:
Î Adjust the date. First of all adjust the year, then the month and then the day.
6. Selection: System or Scheme
Î Choose whether the controller is to be configured with a scheme number or with a system
and a variant.
113
