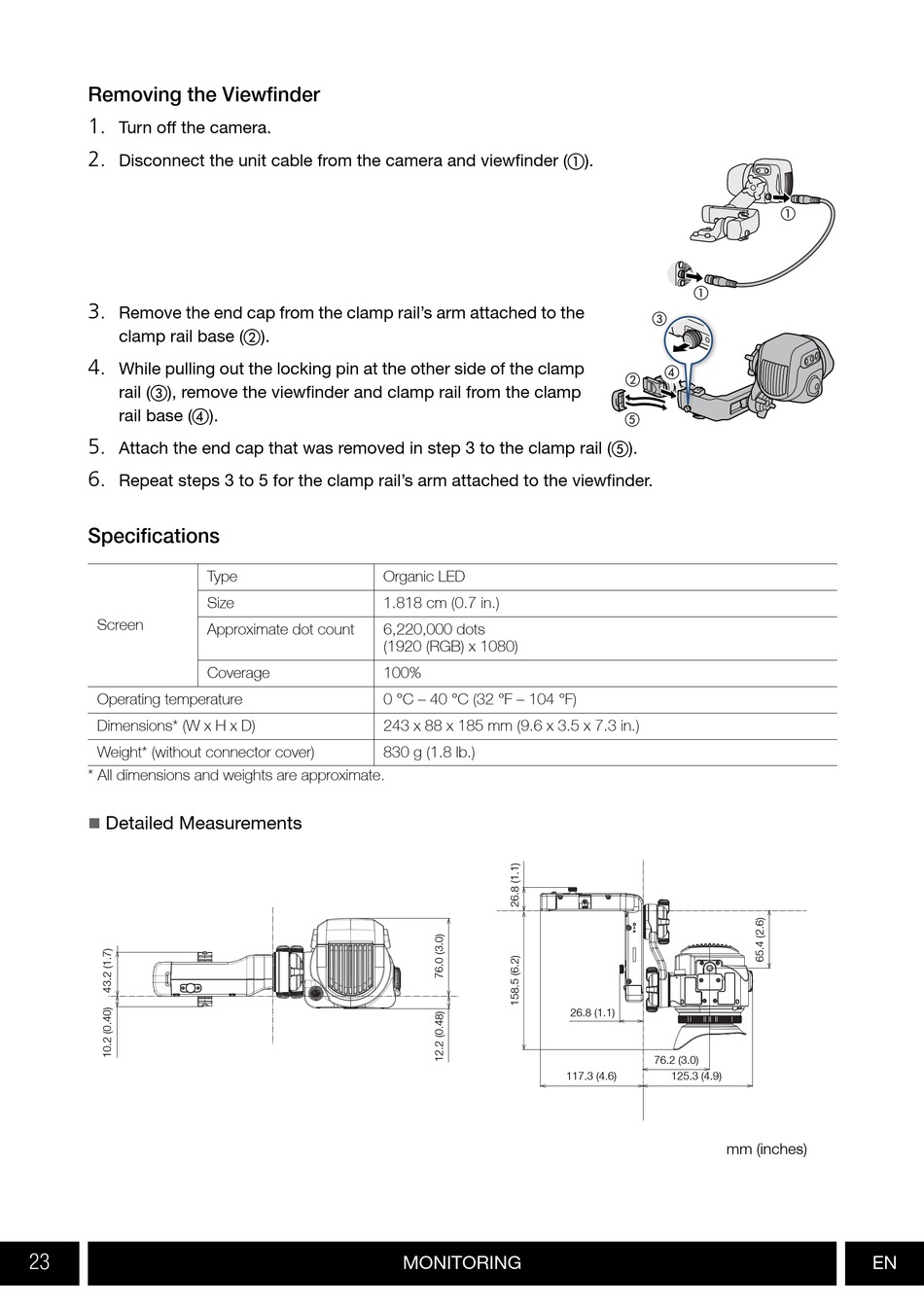

Removing the Viewfinder
1.
Turn off the camera.
2.
Disconnect the unit cable from the camera and viewfinder ( ).
3.
Remove the end cap from the clamp rail's arm attached to the
clamp rail base ( ).
4.
While pulling out the locking pin at the other side of the clamp
rail ( ), remove the viewfinder and clamp rail from the clamp
rail base ( ).
5.
Attach the end cap that was removed in step 3 to the clamp rail ( ).
6.
Repeat steps 3 to 5 for the clamp rail's arm attached to the viewfinder.
Specifications
Screen
Operating temperature
Dimensions* (W x H x D)
Weight* (without connector cover)
* All dimensions and weights are approximate.

Detailed Measurements
23
Type
Size
Approximate dot count
Coverage
Organic LED
1.818 cm (0.7 in.)
6,220,000 dots
(1920 (RGB) x 1080)
100%
0 °C – 40 °C (32 °F – 104 °F)
243 x 88 x 185 mm (9.6 x 3.5 x 7.3 in.)
830 g (1.8 lb.)
MONITORING
26.8 (1.1)
76.2 (3.0)
117.3 (4.6) 125.3 (4.9)
mm (inches)
