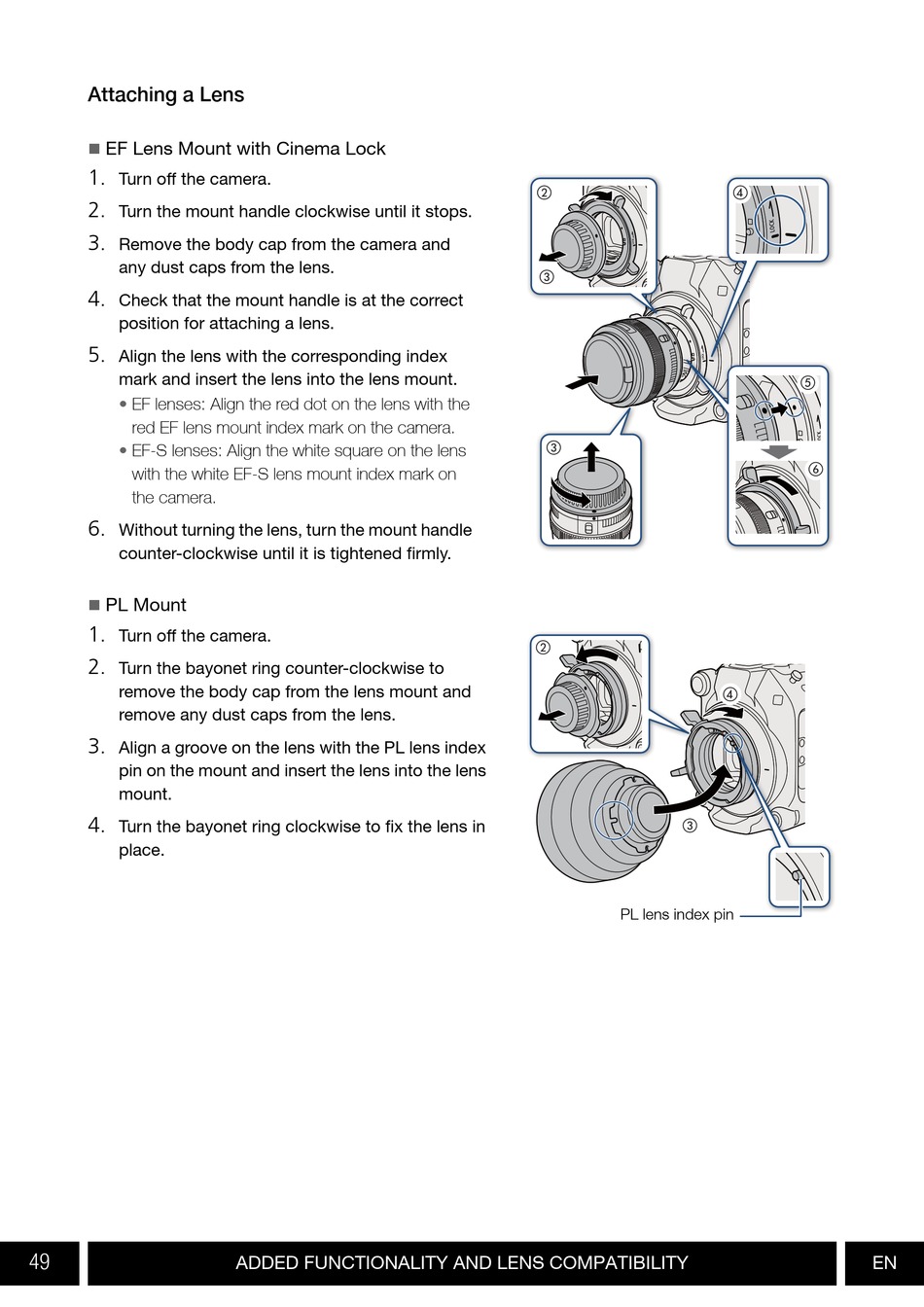

Attaching a Lens


EF Lens Mount with Cinema Lock
1.
Turn off the camera.
2.
Turn the mount handle clockwise until it stops.
3.
Remove the body cap from the camera and
any dust caps from the lens.
4.
Check that the mount handle is at the correct
position for attaching a lens.
5.
Align the lens with the corresponding index
mark and insert the lens into the lens mount.
• EF lenses: Align the red dot on the lens with the
red EF lens mount index mark on the camera.
• EF-S lenses: Align the white square on the lens
with the white EF-S lens mount index mark on
the camera.
6.
Without turning the lens, turn the mount handle
counter-clockwise until it is tightened firmly.

PL Mount
1.
Turn off the camera.
2.
Turn the bayonet ring counter-clockwise to
remove the body cap from the lens mount and
remove any dust caps from the lens.
3.
Align a groove on the lens with the PL lens index
pin on the mount and insert the lens into the lens
mount.
4.
Turn the bayonet ring clockwise to fix the lens in
place.
49
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
PL lens index pin
