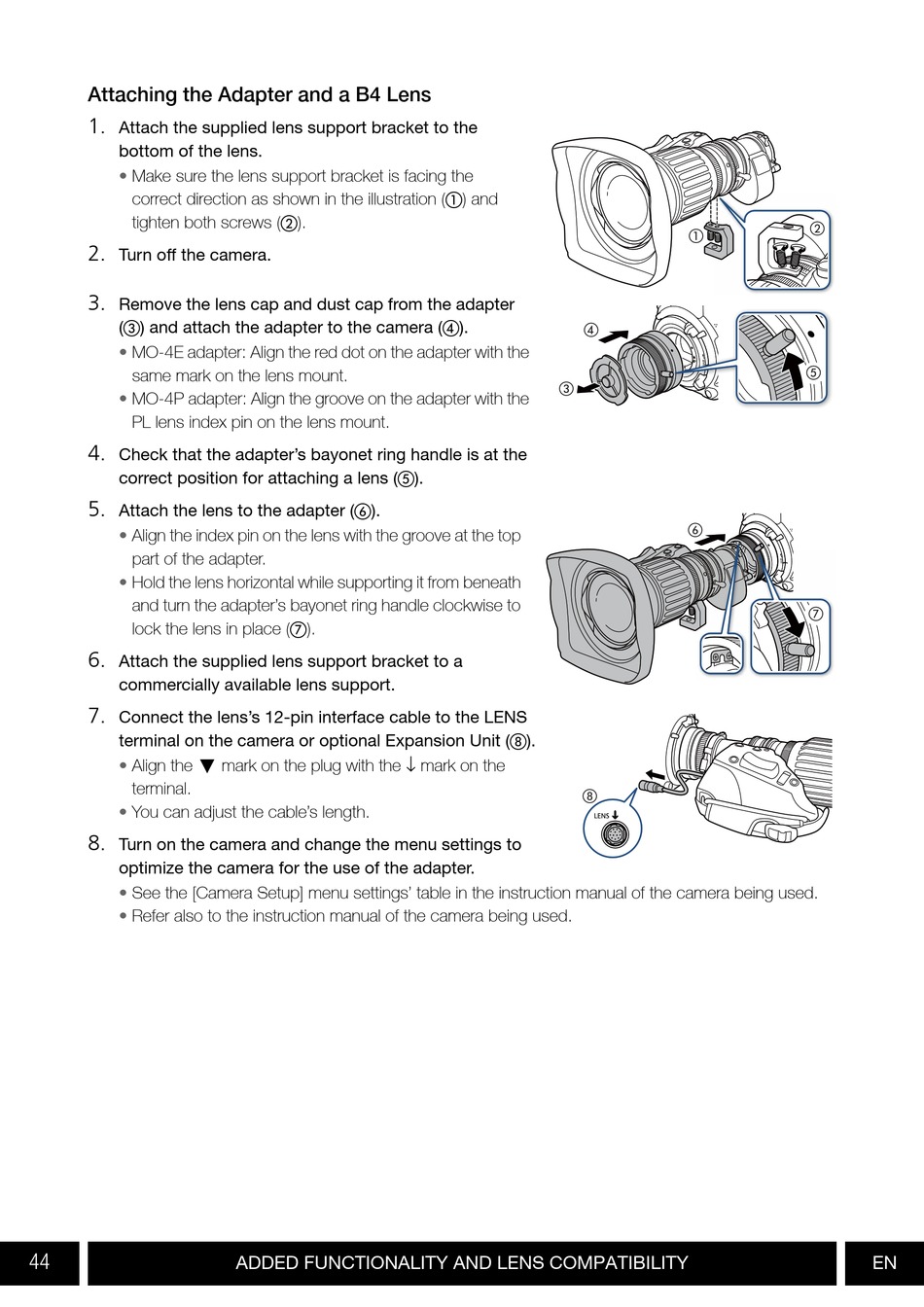

Attaching the Adapter and a B4 Lens
1.
Attach the supplied lens support bracket to the
bottom of the lens.
•
Make sure the lens support bracket is facing the
correct direction as shown in the illustration ( ) and
tighten both screws ( ).
2.
Turn off the camera.
3.
Remove the lens cap and dust cap from the adapter
( ) and attach the adapter to the camera ( ).
•
MO-4E adapter: Align the red dot on the adapter with the
same mark on the lens mount.
•
MO-4P adapter: Align the groove on the adapter with the
PL lens index pin on the lens mount.
4.
Check that the adapter's bayonet ring handle is at the
correct position for attaching a lens ( ).
5.
Attach the lens to the adapter ( ).
•
Align the index pin on the lens with the groove at the top
part of the adapter.
•
Hold the lens horizontal while supporting it from beneath
and turn the adapter's bayonet ring handle clockwise to
lock the lens in place ( ).
6.
Attach the supplied lens support bracket to a
commercially available lens support.
7.
Connect the lens's 12-pin interface cable to the LENS
terminal on the camera or optional Expansion Unit ( ).
Align the Î mark on the plug with the ↓ mark on the
•
terminal.
•
You can adjust the cable's length.
8.
Turn on the camera and change the menu settings to
optimize the camera for the use of the adapter.
•
See the [Camera Setup] menu settings' table in the instruction manual of the camera being used.
•
Refer also to the instruction manual of the camera being used.
44
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
EN
