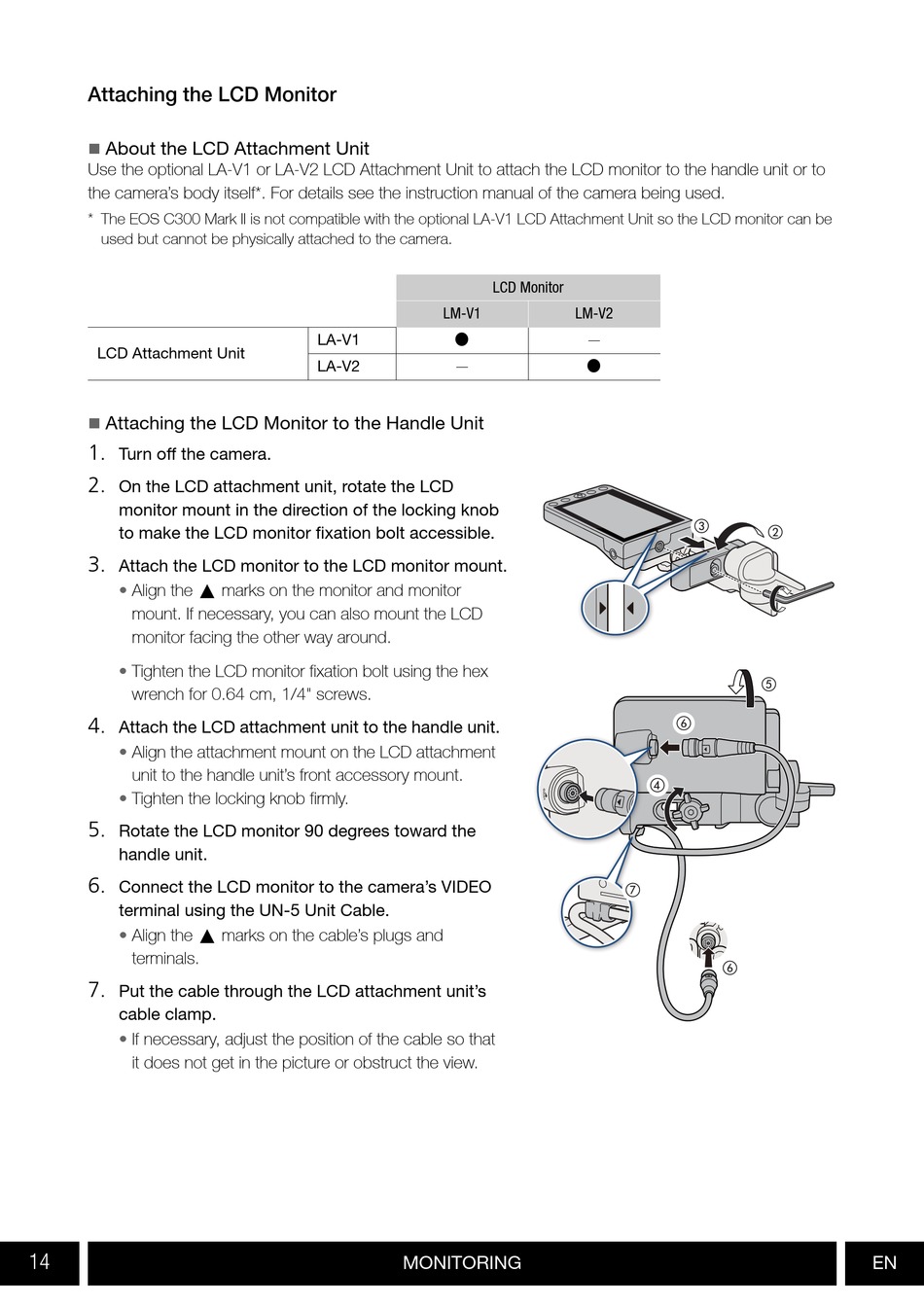

Attaching the LCD Monitor

About the LCD Attachment Unit
Use the optional LA-V1 or LA-V2 LCD Attachment Unit to attach the LCD monitor to the handle unit or to
the camera's body itself*. For details see the instruction manual of the camera being used.
* The EOS C300 Mark II is not compatible with the optional LA-V1 LCD Attachment Unit so the LCD monitor can be
used but cannot be physically attached to the camera.
LCD Attachment Unit

Attaching the LCD Monitor to the Handle Unit
1.
Turn off the camera.
2.
On the LCD attachment unit, rotate the LCD
monitor mount in the direction of the locking knob
to make the LCD monitor fixation bolt accessible.
3.
Attach the LCD monitor to the LCD monitor mount.
Align the Í marks on the monitor and monitor
•
mount. If necessary, you can also mount the LCD
monitor facing the other way around.
• Tighten the LCD monitor fixation bolt using the hex
wrench for 0.64 cm, 1/4" screws.
4.
Attach the LCD attachment unit to the handle unit.
• Align the attachment mount on the LCD attachment
unit to the handle unit's front accessory mount.
• Tighten the locking knob firmly.
5.
Rotate the LCD monitor 90 degrees toward the
handle unit.
6.
Connect the LCD monitor to the camera's VIDEO
terminal using the UN-5 Unit Cable.
Align the Í marks on the cable's plugs and
•
terminals.
7.
Put the cable through the LCD attachment unit's
cable clamp.
• If necessary, adjust the position of the cable so that
it does not get in the picture or obstruct the view.
