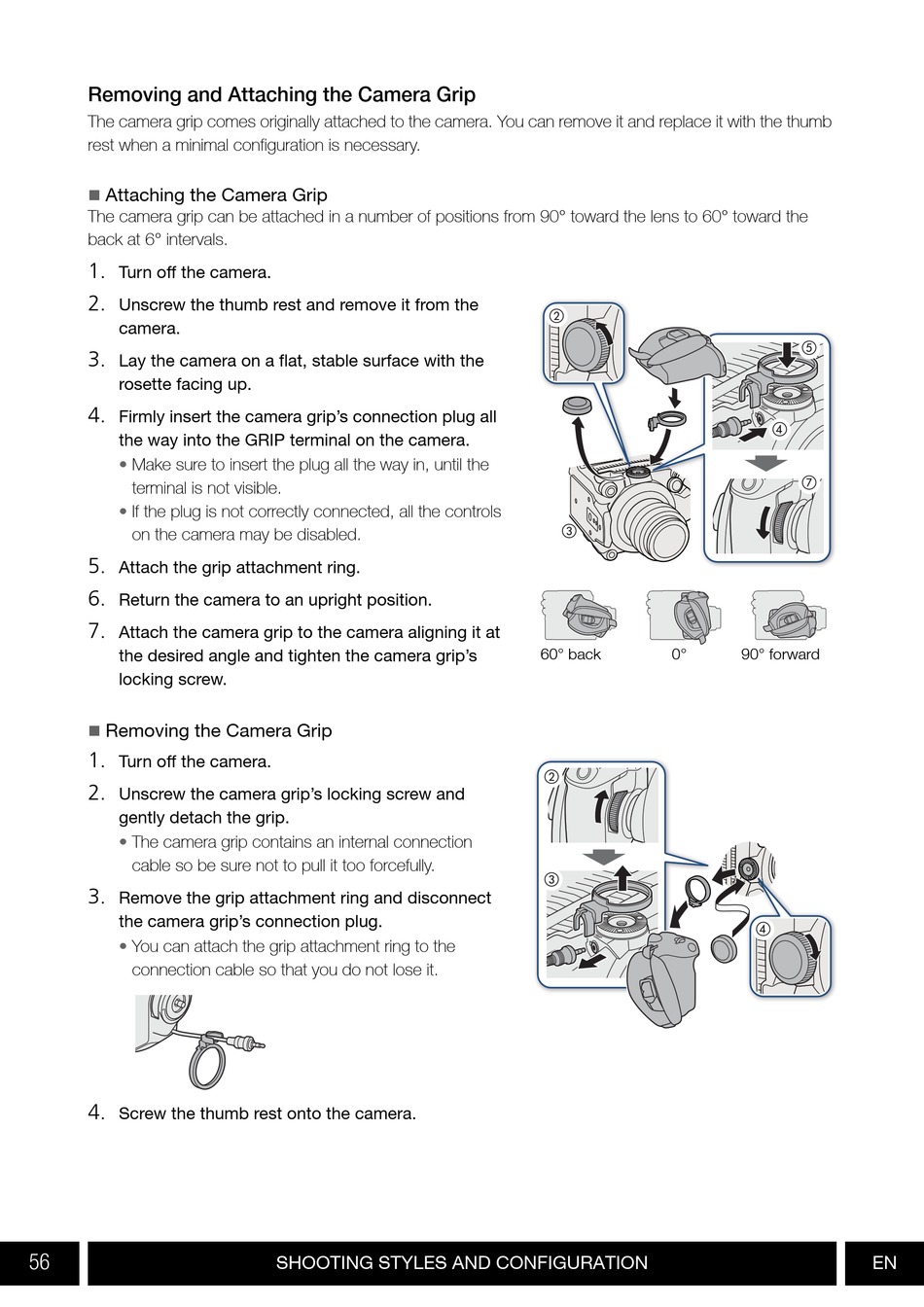

Removing and Attaching the Camera Grip
The camera grip comes originally attached to the camera. You can remove it and replace it with the thumb
rest when a minimal configuration is necessary.

Attaching the Camera Grip
The camera grip can be attached in a number of positions from 90° toward the lens to 60° toward the
back at 6° intervals.
1.
Turn off the camera.
2.
Unscrew the thumb rest and remove it from the
camera.
3.
Lay the camera on a flat, stable surface with the
rosette facing up.
4.
Firmly insert the camera grip's connection plug all
the way into the GRIP terminal on the camera.
• Make sure to insert the plug all the way in, until the
terminal is not visible.
• If the plug is not correctly connected, all the controls
on the camera may be disabled.
5.
Attach the grip attachment ring.
6.
Return the camera to an upright position.
7.
Attach the camera grip to the camera aligning it at
the desired angle and tighten the camera grip's
locking screw.

Removing the Camera Grip
1.
Turn off the camera.
2.
Unscrew the camera grip's locking screw and
gently detach the grip.
• The camera grip contains an internal connection
cable so be sure not to pull it too forcefully.
3.
Remove the grip attachment ring and disconnect
the camera grip's connection plug.
• You can attach the grip attachment ring to the
connection cable so that you do not lose it.
4.
Screw the thumb rest onto the camera.
56
SHOOTING STYLES AND CONFIGURATION
60° back 0° 90° forward
