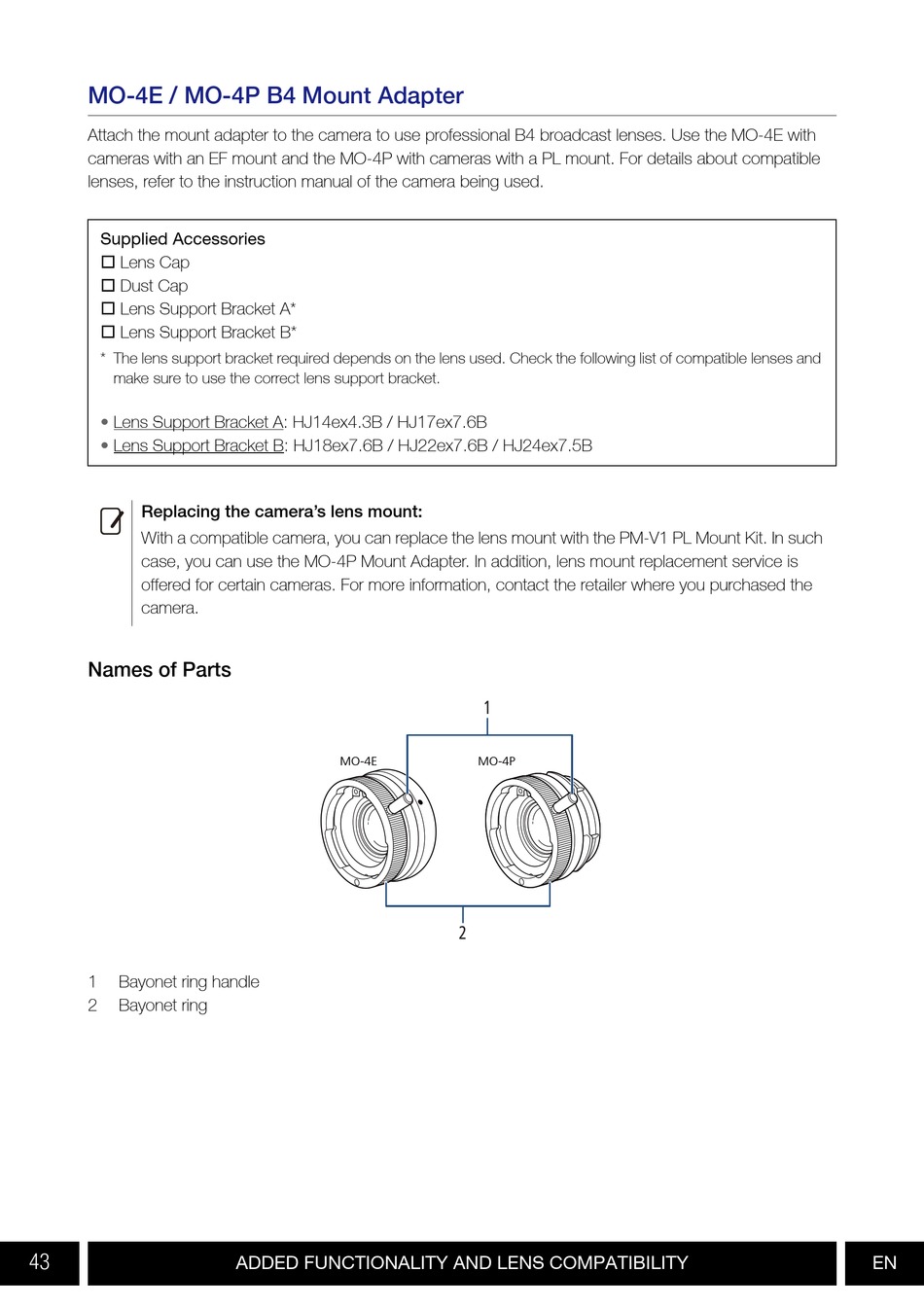

MO-4E / MO-4P B4 Mount Adapter

Attach the mount adapter to the camera to use professional B4 broadcast lenses. Use the MO-4E with
cameras with an EF mount and the MO-4P with cameras with a PL mount. For details about compatible
lenses, refer to the instruction manual of the camera being used.
Supplied Accessories
 Lens Cap
 Dust Cap
 Lens Support Bracket A*
 Lens Support Bracket B*
* The lens support bracket required depends on the lens used. Check the following list of compatible lenses and
make sure to use the correct lens support bracket.
• Lens Support Bracket A: HJ14ex4.3B / HJ17ex7.6B
• Lens Support Bracket B: HJ18ex7.6B / HJ22ex7.6B / HJ24ex7.5B
Replacing the camera's lens mount:
With a compatible camera, you can replace the lens mount with the PM-V1 PL Mount Kit. In such
case, you can use the MO-4P Mount Adapter. In addition, lens mount replacement service is
offered for certain cameras. For more information, contact the retailer where you purchased the
camera.
Names of Parts
1 Bayonet ring handle
2 Bayonet ring
43
MO-4E
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
1
MO-4P
2
