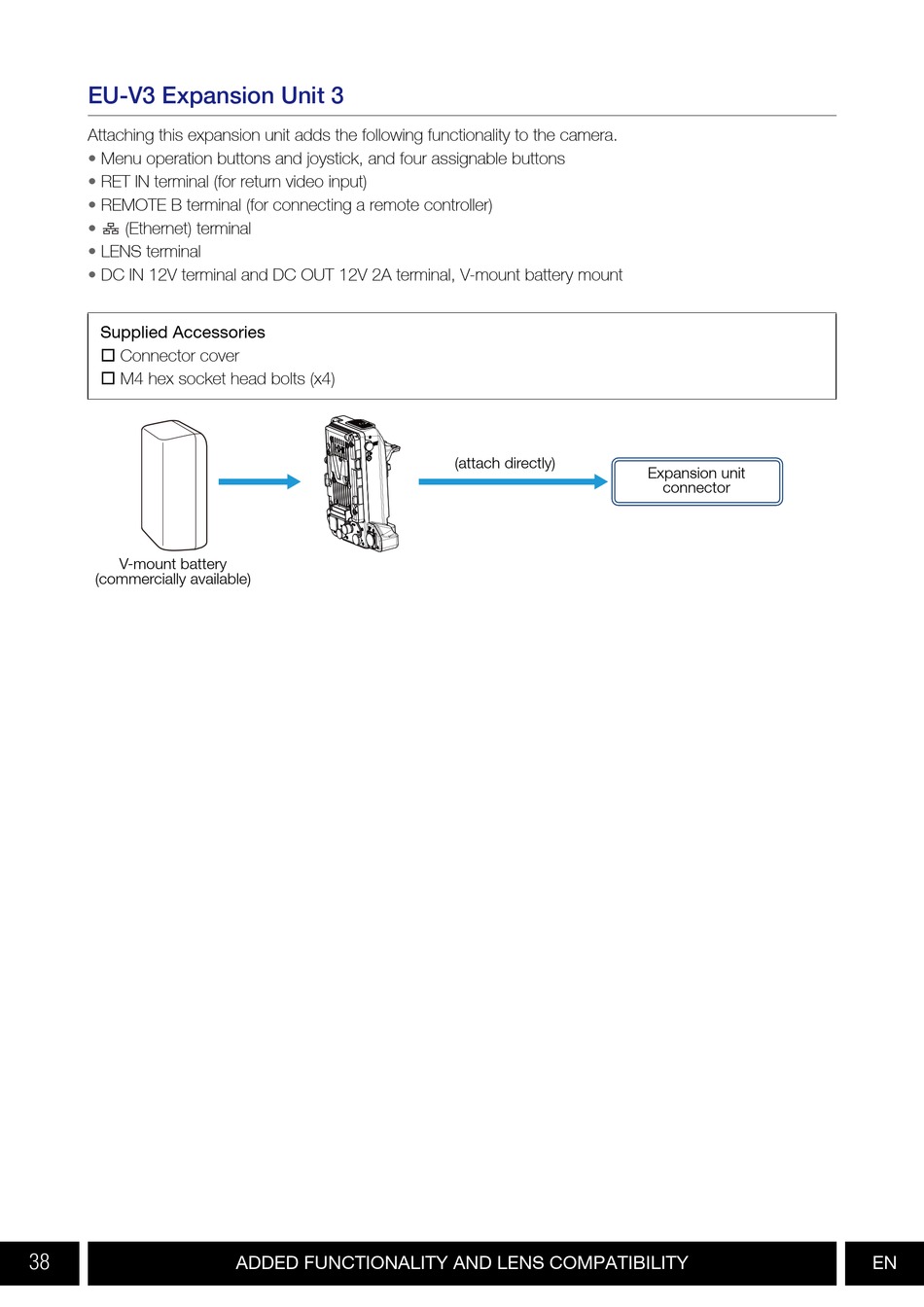

EU-V3 Expansion Unit 3

Attaching this expansion unit adds the following functionality to the camera.
• Menu operation buttons and joystick, and four assignable buttons
• RET IN terminal (for return video input)
• REMOTE B terminal (for connecting a remote controller)
• (Ethernet) terminal
• LENS terminal
• DC IN 12V terminal and DC OUT 12V 2A terminal, V-mount battery mount
Supplied Accessories
 Connector cover
 M4 hex socket head bolts (x4)
V-mount battery
(commercially available)
38
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
(attach directly)
Expansion unit
connector
