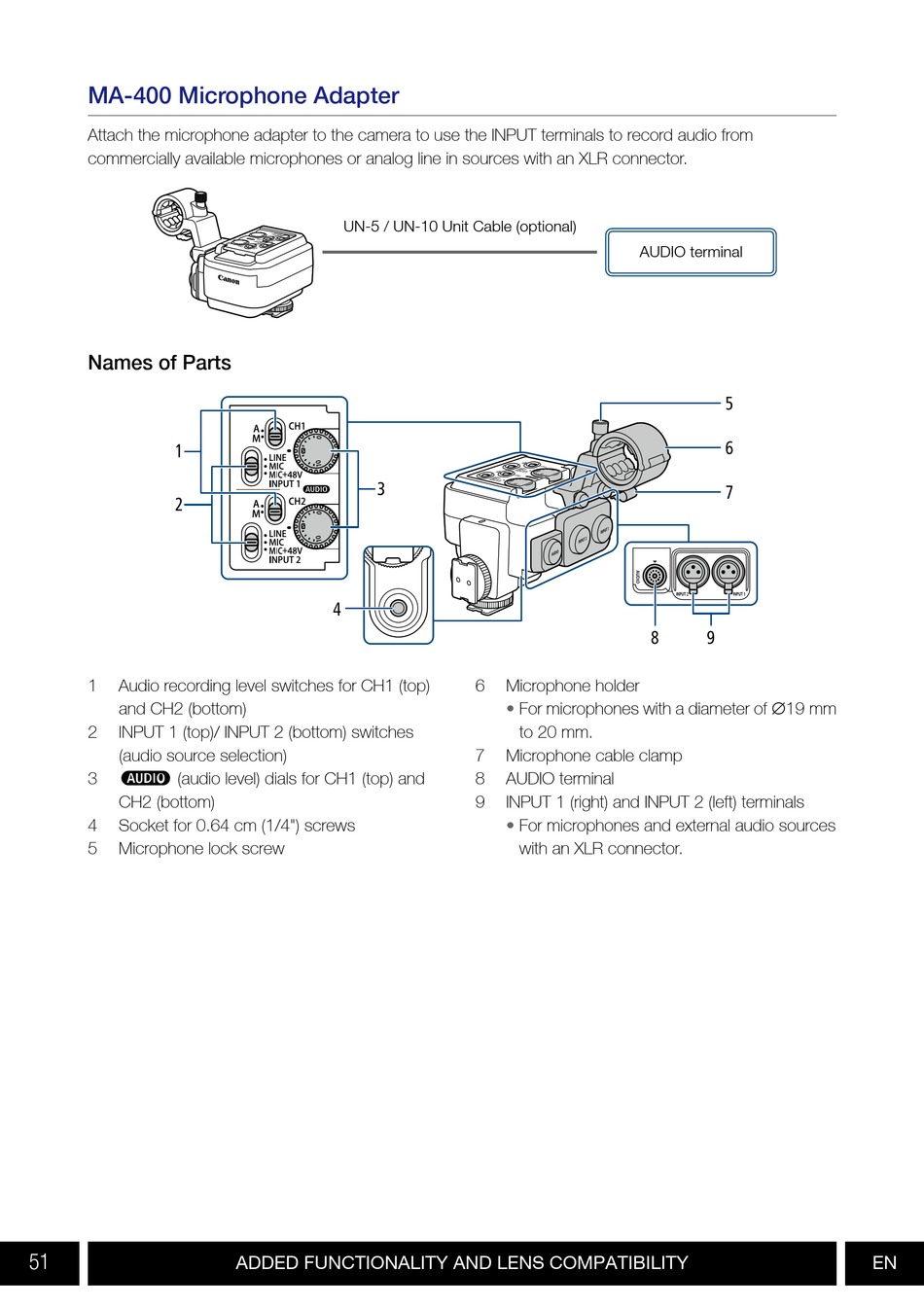

MA-400 Microphone Adapter

Attach the microphone adapter to the camera to use the INPUT terminals to record audio from
commercially available microphones or analog line in sources with an XLR connector.
Names of Parts
1
2
1 Audio recording level switches for CH1 (top)
and CH2 (bottom)
2 INPUT 1 (top)/ INPUT 2 (bottom) switches
(audio source selection)
– (audio level) dials for CH1 (top) and
3
CH2 (bottom)
4 Socket for 0.64 cm (1/4") screws
5 Microphone lock screw
51
UN-5 / UN-10 Unit Cable (optional)
3
4
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
AUDIO terminal
6 Microphone holder
For microphones with a diameter of ∅19 mm
•
to 20 mm.
7 Microphone cable clamp
8 AUDIO terminal
9 INPUT 1 (right) and INPUT 2 (left) terminals
• For microphones and external audio sources
with an XLR connector.
5
6
7
8 9
