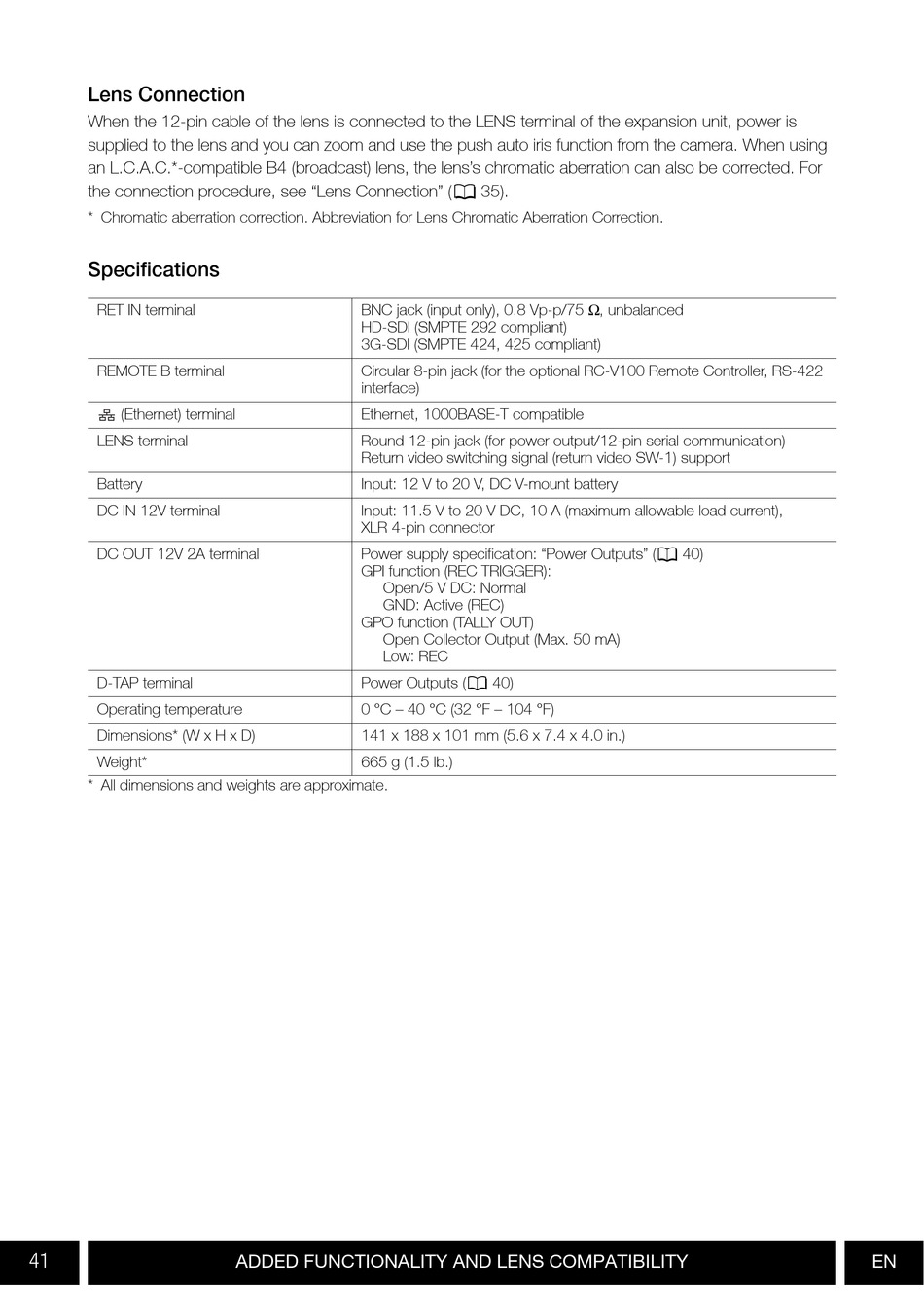

Lens Connection
When the 12-pin cable of the lens is connected to the LENS terminal of the expansion unit, power is
supplied to the lens and you can zoom and use the push auto iris function from the camera. When using
an L.C.A.C.*-compatible B4 (broadcast) lens, the lens's chromatic aberration can also be corrected. For
the connection procedure, see "Lens Connection" (0 35).
* Chromatic aberration correction. Abbreviation for Lens Chromatic Aberration Correction.
Specifications
RET IN terminal
REMOTE B terminal
(Ethernet) terminal
LENS terminal
Battery
DC IN 12V terminal
DC OUT 12V 2A terminal
D-TAP terminal
Operating temperature
Dimensions* (W x H x D)
Weight*
* All dimensions and weights are approximate.
41
BNC jack (input only), 0.8 Vp-p/75 Ω, unbalanced
HD-SDI (SMPTE 292 compliant)
3G-SDI (SMPTE 424, 425 compliant)
Circular 8-pin jack (for the optional RC-V100 Remote Controller, RS-422
interface)
Ethernet, 1000BASE-T compatible
Round 12-pin jack (for power output/12-pin serial communication)
Return video switching signal (return video SW-1) support
Input: 12 V to 20 V, DC V-mount battery
Input: 11.5 V to 20 V DC, 10 A (maximum allowable load current),
XLR 4-pin connector
Power supply specification: "Power Outputs" (0 40)
GPI function (REC TRIGGER):
Open/5 V DC: Normal
GND: Active (REC)
GPO function (TALLY OUT)
Open Collector Output (Max. 50 mA)
Low: REC
Power Outputs (0 40)
0 °C – 40 °C (32 °F – 104 °F)
141 x 188 x 101 mm (5.6 x 7.4 x 4.0 in.)
665 g (1.5 lb.)
ADDED FUNCTIONALITY AND LENS COMPATIBILITY EN
