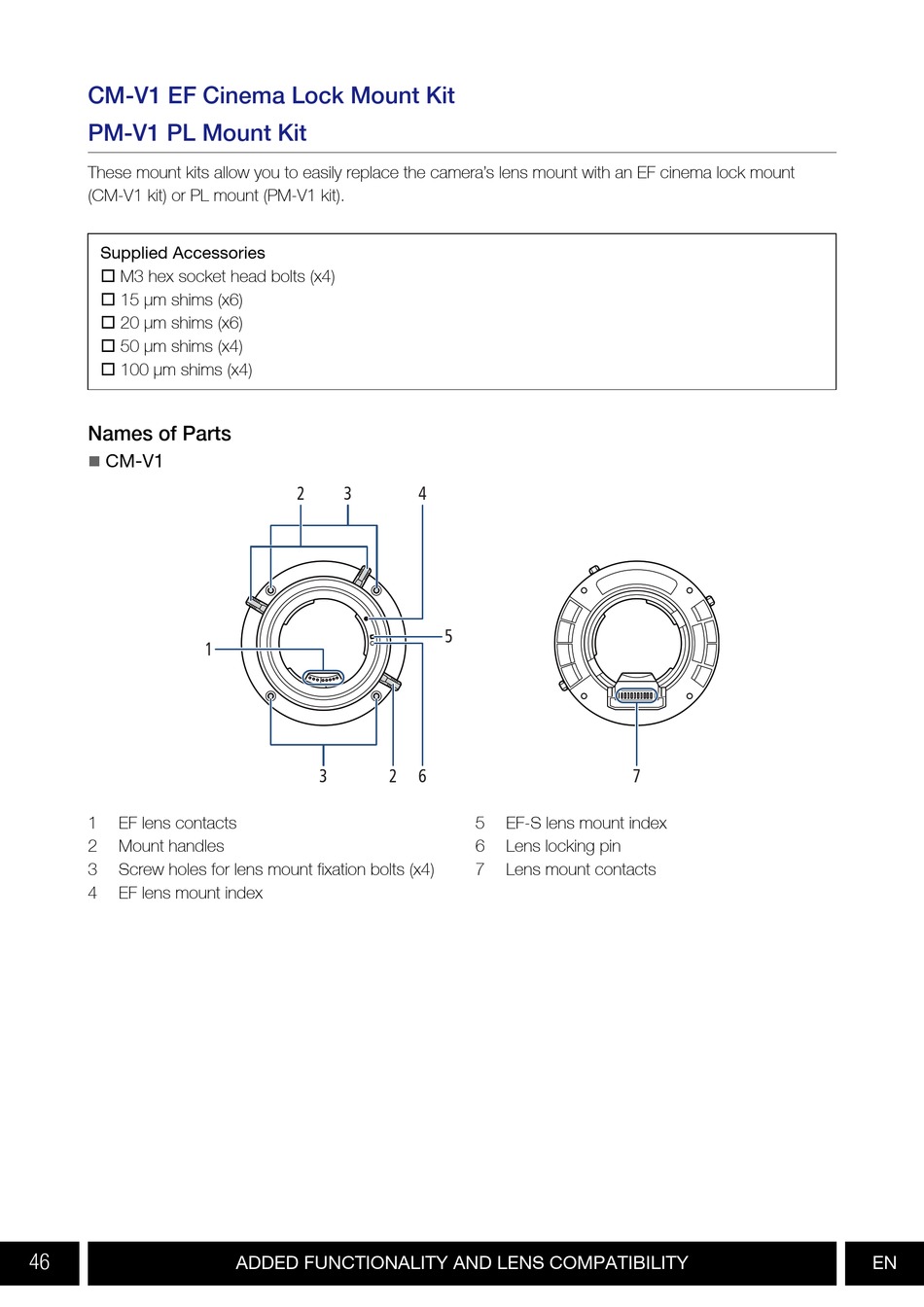

CM-V1 EF Cinema Lock Mount Kit

PM-V1 PL Mount Kit

These mount kits allow you to easily replace the camera's lens mount with an EF cinema lock mount
(CM-V1 kit) or PL mount (PM-V1 kit).
Supplied Accessories
 M3 hex socket head bolts (x4)
 15 μm shims (x6)
 20 μm shims (x6)
 50 μm shims (x4)
 100 μm shims (x4)
Names of Parts

CM-V1
1 EF lens contacts
2 Mount handles
3 Screw holes for lens mount fixation bolts (x4)
4 EF lens mount index
46
2 3
1
3
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
4
5
2 6
5 EF-S lens mount index
6 Lens locking pin
7 Lens mount contacts
7
