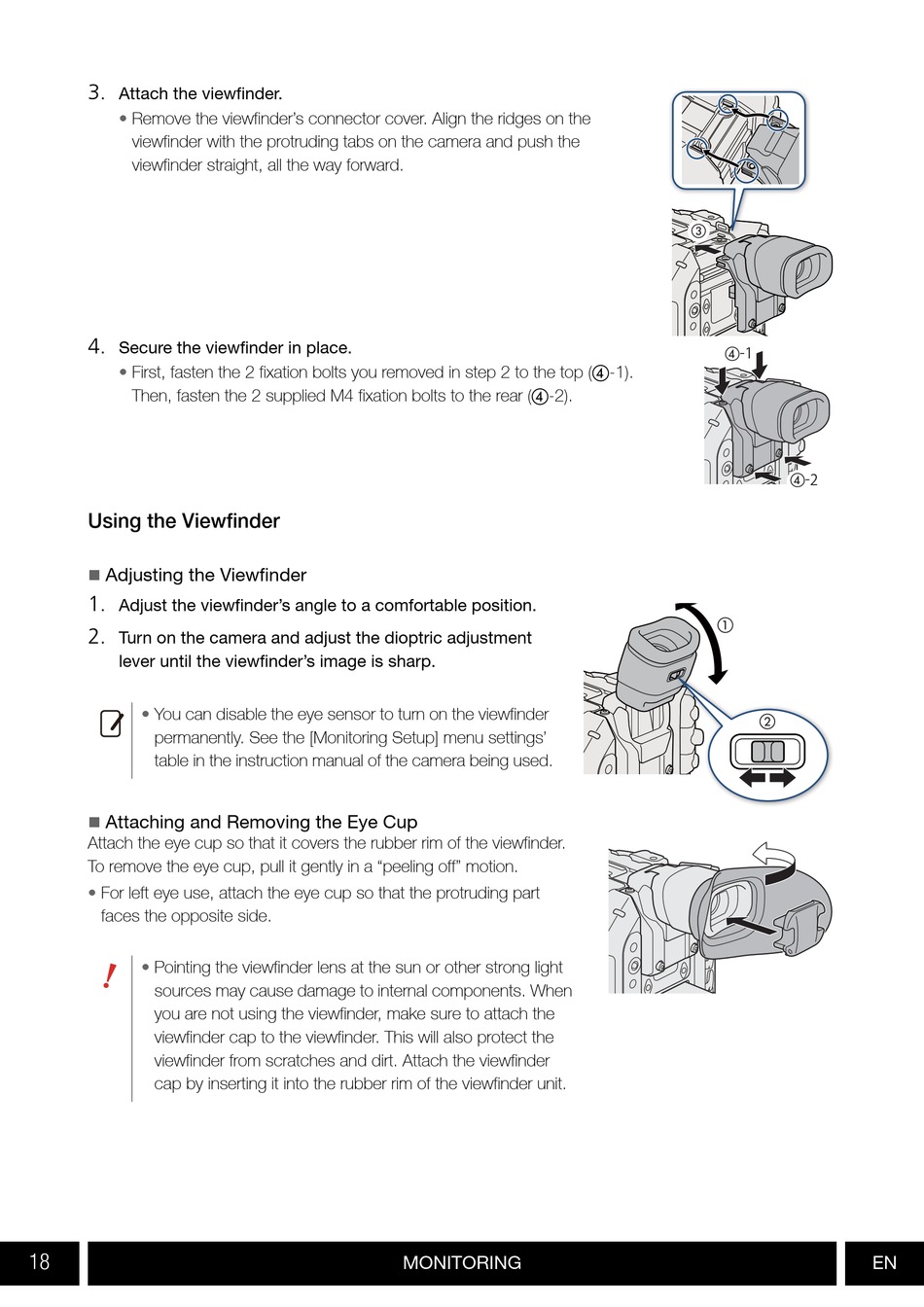

3.
Attach the viewfinder.
• Remove the viewfinder's connector cover. Align the ridges on the
viewfinder with the protruding tabs on the camera and push the
viewfinder straight, all the way forward.
4.
Secure the viewfinder in place.
• First, fasten the 2 fixation bolts you removed in step 2 to the top ( -1).
Then, fasten the 2 supplied M4 fixation bolts to the rear ( -2).

Using the Viewfinder


Adjusting the Viewfinder
1.
Adjust the viewfinder's angle to a comfortable position.
2.
Turn on the camera and adjust the dioptric adjustment
lever until the viewfinder's image is sharp.
• You can disable the eye sensor to turn on the viewfinder
permanently. See the [Monitoring Setup] menu settings'
table in the instruction manual of the camera being used.

Attaching and Removing the Eye Cup
Attach the eye cup so that it covers the rubber rim of the viewfinder.
To remove the eye cup, pull it gently in a "peeling off" motion.
• For left eye use, attach the eye cup so that the protruding part
faces the opposite side.
• Pointing the viewfinder lens at the sun or other strong light
sources may cause damage to internal components. When
you are not using the viewfinder, make sure to attach the
viewfinder cap to the viewfinder. This will also protect the
viewfinder from scratches and dirt. Attach the viewfinder
cap by inserting it into the rubber rim of the viewfinder unit.
