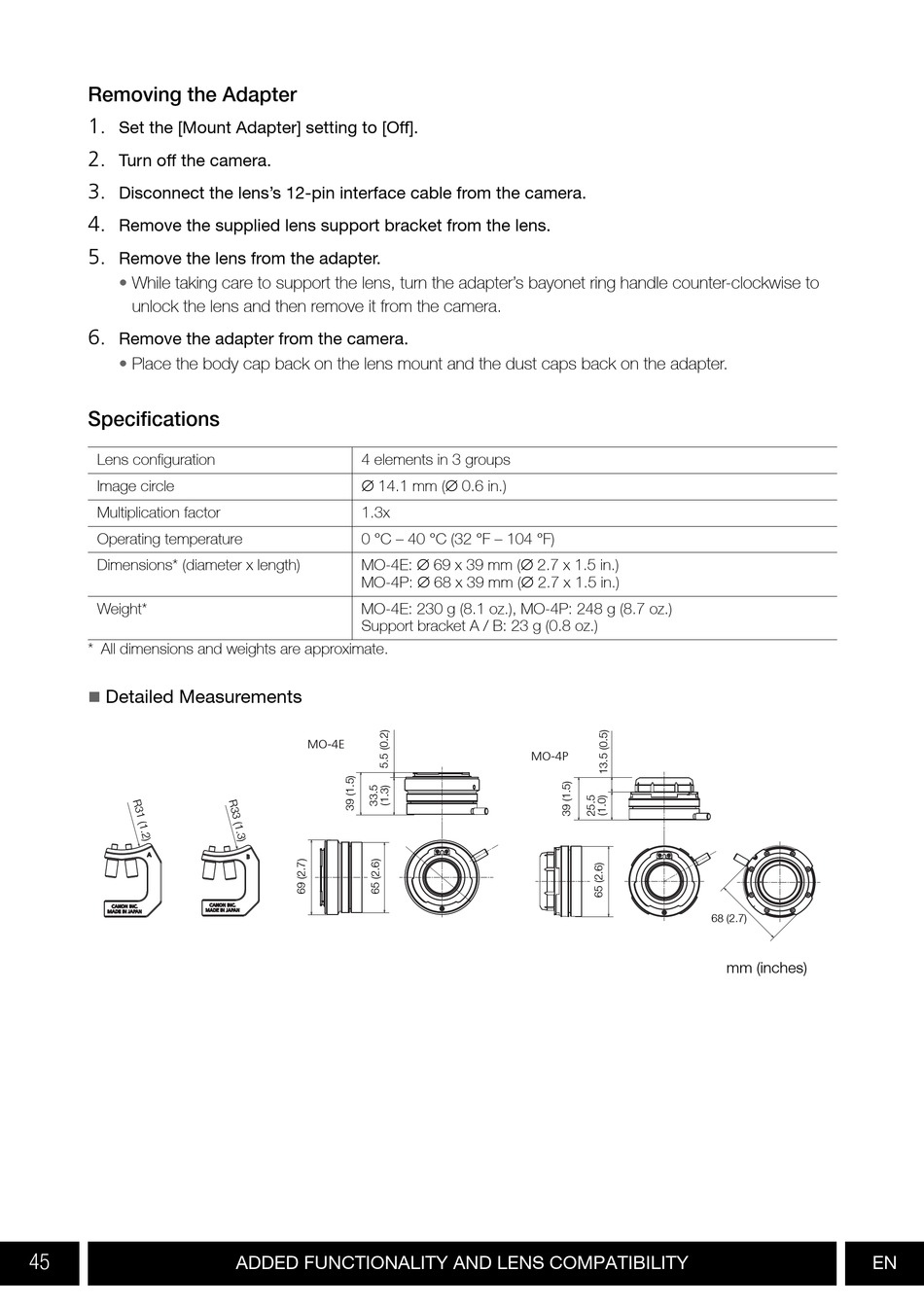

Removing the Adapter
1.
Set the [Mount Adapter] setting to [Off].
2.
Turn off the camera.
3.
Disconnect the lens's 12-pin interface cable from the camera.
4.
Remove the supplied lens support bracket from the lens.
5.
Remove the lens from the adapter.
• While taking care to support the lens, turn the adapter's bayonet ring handle counter-clockwise to
unlock the lens and then remove it from the camera.
6.
Remove the adapter from the camera.
• Place the body cap back on the lens mount and the dust caps back on the adapter.
Specifications
Lens configuration
Image circle
Multiplication factor
Operating temperature
Dimensions* (diameter x length)
Weight*
* All dimensions and weights are approximate.

Detailed Measurements
45
4 elements in 3 groups
∅ 14.1 mm (∅ 0.6 in.)
1.3x
0 °C – 40 °C (32 °F – 104 °F)
MO-4E: ∅ 69 x 39 mm (∅ 2.7 x 1.5 in.)
MO-4P: ∅ 68 x 39 mm (∅ 2.7 x 1.5 in.)
MO-4E: 230 g (8.1 oz.), MO-4P: 248 g (8.7 oz.)
Support bracket A / B: 23 g (0.8 oz.)
MO-4E
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
MO-4P
68 (2.7)
mm (inches)
