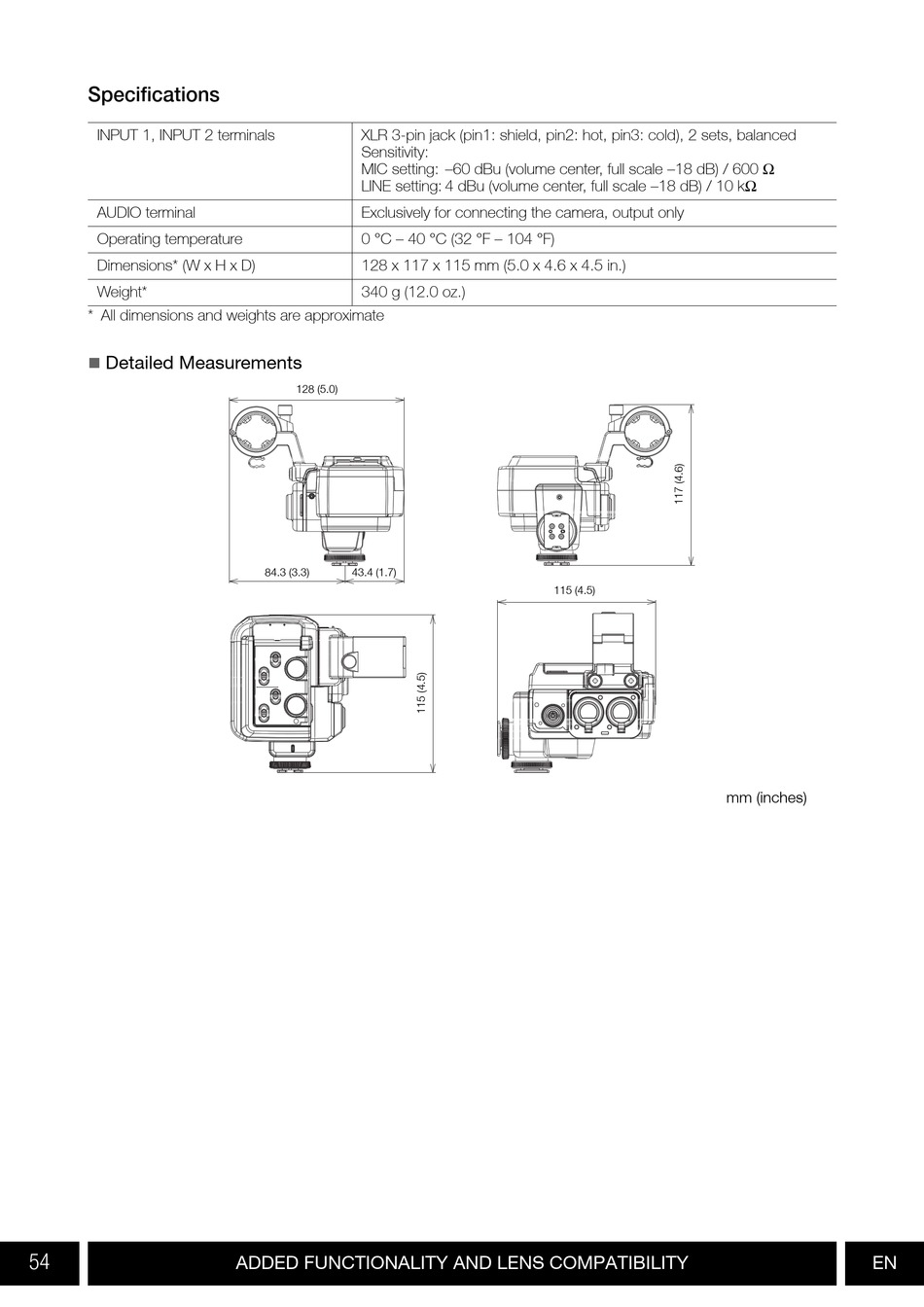

Specifications
INPUT 1, INPUT 2 terminals
AUDIO terminal
Operating temperature
Dimensions* (W x H x D)
Weight*
* All dimensions and weights are approximate

Detailed Measurements
54
XLR 3-pin jack (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
Sensitivity:
MIC setting: –60 dBu (volume center, full scale –18 dB) / 600 Ω
LINE setting: 4 dBu (volume center, full scale –18 dB) / 10 kΩ
Exclusively for connecting the camera, output only
0 °C – 40 °C (32 °F – 104 °F)
128 x 117 x 115 mm (5.0 x 4.6 x 4.5 in.)
340 g (12.0 oz.)
128 (5.0)
84.3 (3.3) 43.4 (1.7)
ADDED FUNCTIONALITY AND LENS COMPATIBILITY
115 (4.5)
mm (inches)
