Startup with a hand switch with 6 function keys

You control the drives using both function keys and the "UP" and "DOWN" keys on the hand
switch.

6.5.1 General

Overview diagram of the hand switch with 6 function keys and display
Figure 9 displays the "Memory position" view on the display of the hand switch. The
display shows that the drives are extended 28%.
By means of the "UP" and "DOWN" keys along with function keys 1 and 2, you
can change settings on the hand switch and the control. Use the function keys for
navigation, confirmation, and cancelling. The "UP" and "DOWN" keys are used for
navigation and setting values.
The functions under the "Control" menu item can be accessed only after entering the
password 13121. Access to the menu items remains active for 30 minutes after the
last action. It is possible to sign off using the "Logout" function, by removing the hand
switch or switching off the control.
MultiControl II duo and MultiControl II quadro assembly instructions
Ensure that nobody is in the vicinity of the drives when they are
moving.
Only use the hand switch if you have visual contact with the drives –
risk of accident!
1 Display
2 Function key 1
3 Function key 2
4 "Up" key
5 "Down" key
"M" key (menu)
6
"F" key (quick menu)
7

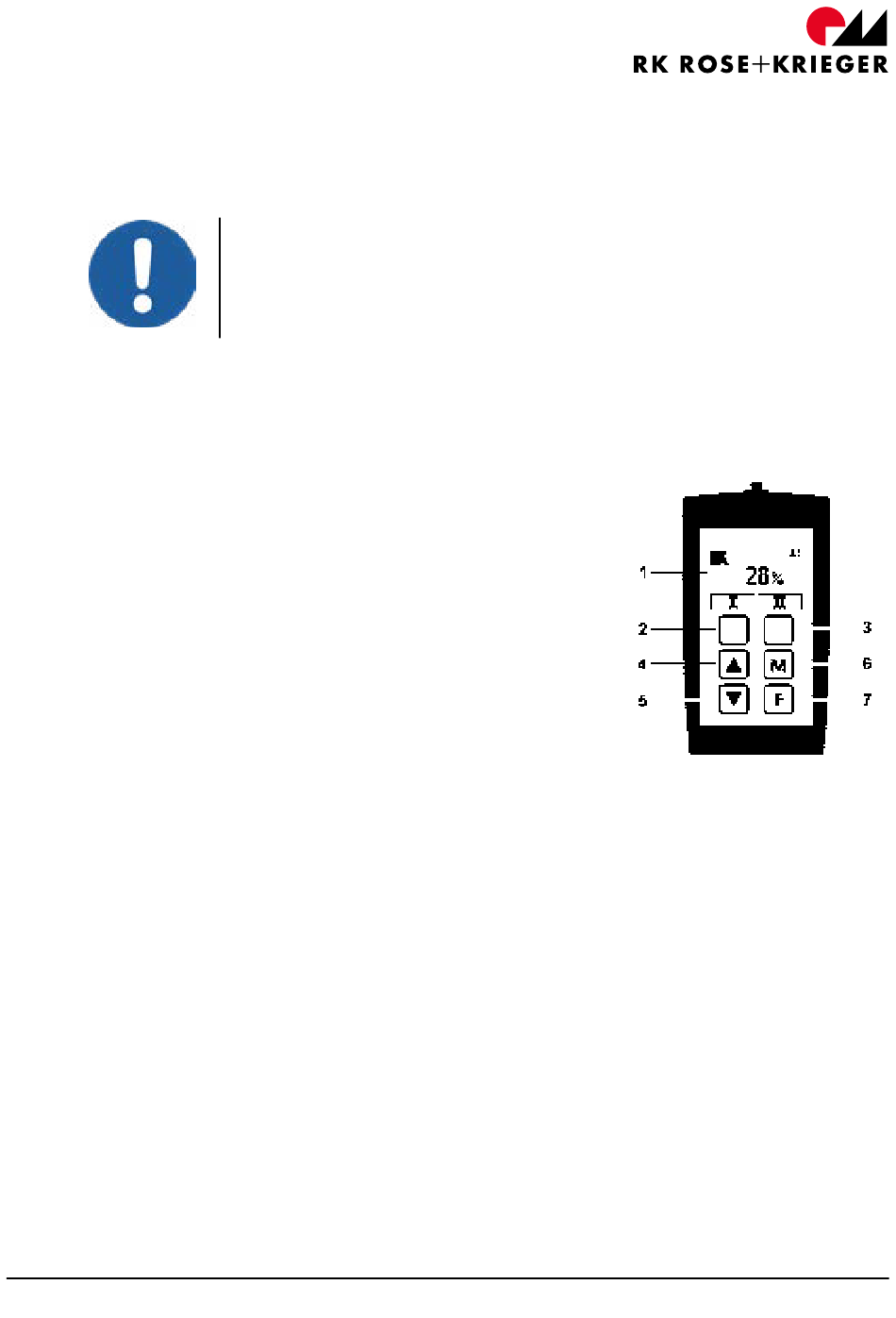

Figure 9 - Hand switch with 6
function keys and display
