6.5.2 Display symbols

The symbols on the display as well as several display views will be explained in the
following.
100

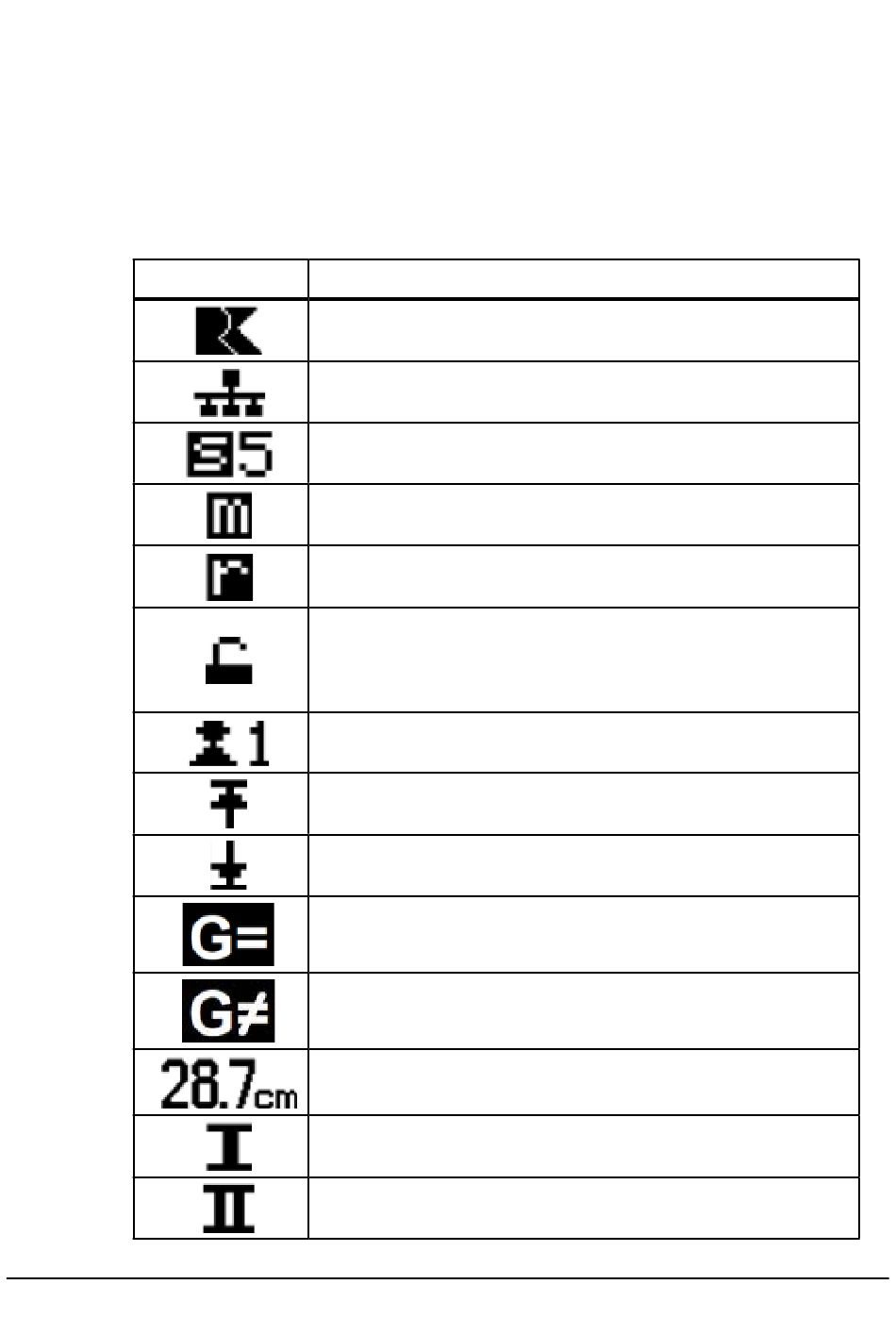

Symbol
RK Rose+Krieger GmbH company logo
Synchronisation bus (Sync-BUS) is activated
Function of the control in the Sync-BUS: s – Slave; 5 – Number of
the slave (1...7)
Function of the control in the Sync-BUS: m – Master (max. 1
master per Sync-BUS)
Reset of the hand switch has been performed, is displayed for 5
seconds
A password has been entered for the functions in the
Control menu. To block the functions or enter a different
password, please use the "Logout" function ("Control" menu
item→"Logout").
Active user (1, 2, or 3)
Upper stroke limit is active
Lower stroke limit is active
Synchronous movement of both drive groups
Parallel movement of both drive groups (non-synchronous)
Current height display with set units
Move to memory position 1 for the active user – Press function
key 1
Move to memory position 2 for the active user – Press function
key 2
