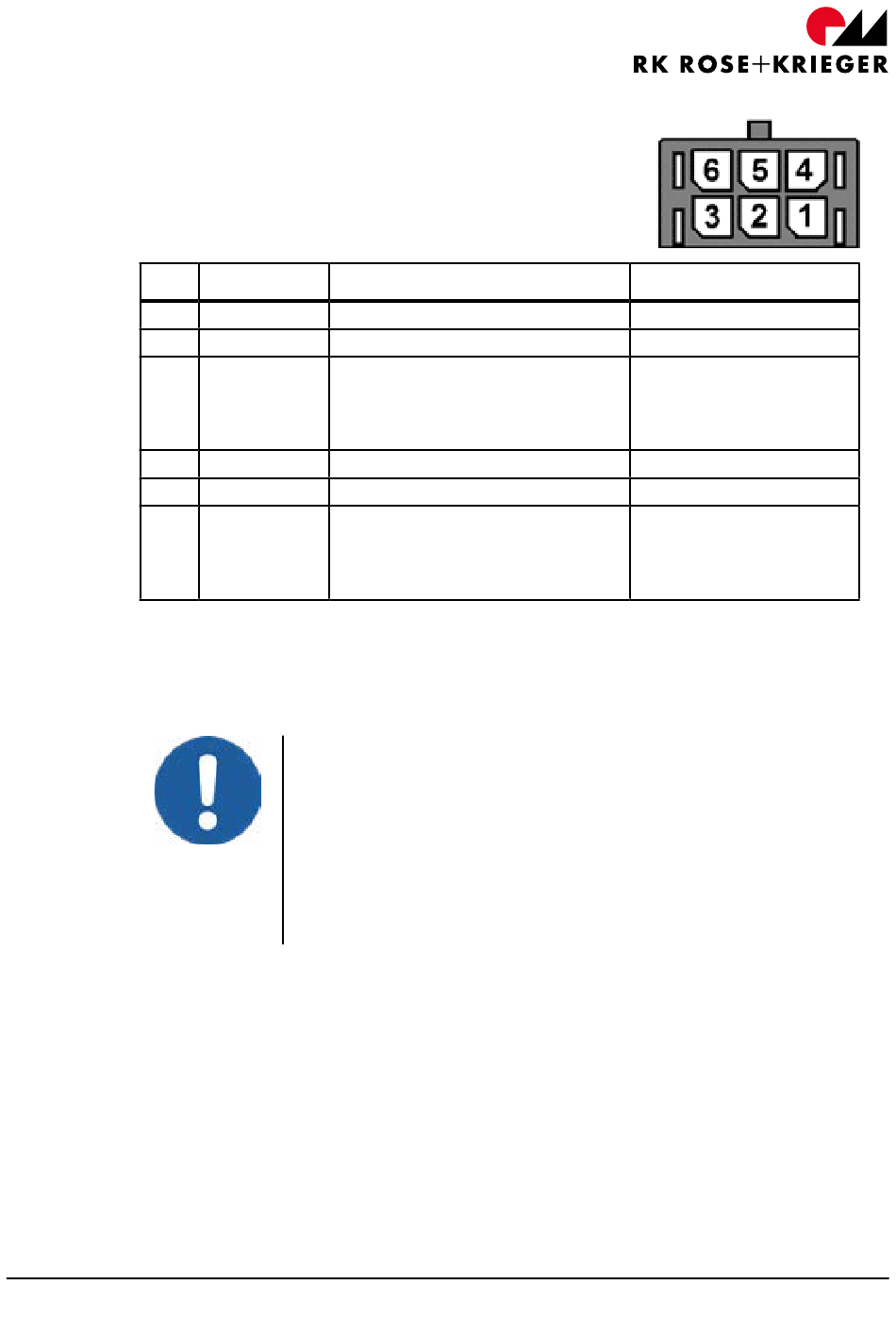

Hand switch interface (HS)
View from the front on the contacts:
Pin
1
2
3
4
5
6
For the purpose of moving the drives, the UP and DOWN inputs can be switched to +12
VDC using the button (not switch).
To establish direct communication of the control, the protocol of the Control BUS
interface is available with a PLC, PC, etc. upon request.
MultiControl II duo and MultiControl II quadro assembly instructions
Function
GND -
RS485 B Control BUS
AUF Signal contact input
Contact type: NO (High active)
Voltage: max.: 12 VDC
12 VDC 12 V ± 10% max. 20 mA
RS485 A Control BUS
AB Signal contact input
Contact type: NO (High active)
Voltage: max.: 12 VDC
To be able to safely stop the drives in a dangerous situation,
only buttons that must be permanently actuated may be used
for controlling the UP and DOWN inputs. When operating
the key, the danger zone of the drives and the system must
be well visible to the operator, to be able to immediately see
dangerous situations and stop the drives by releasing the key.
Description Core colour
brown
Green
white
Pink
yellow
Grey
