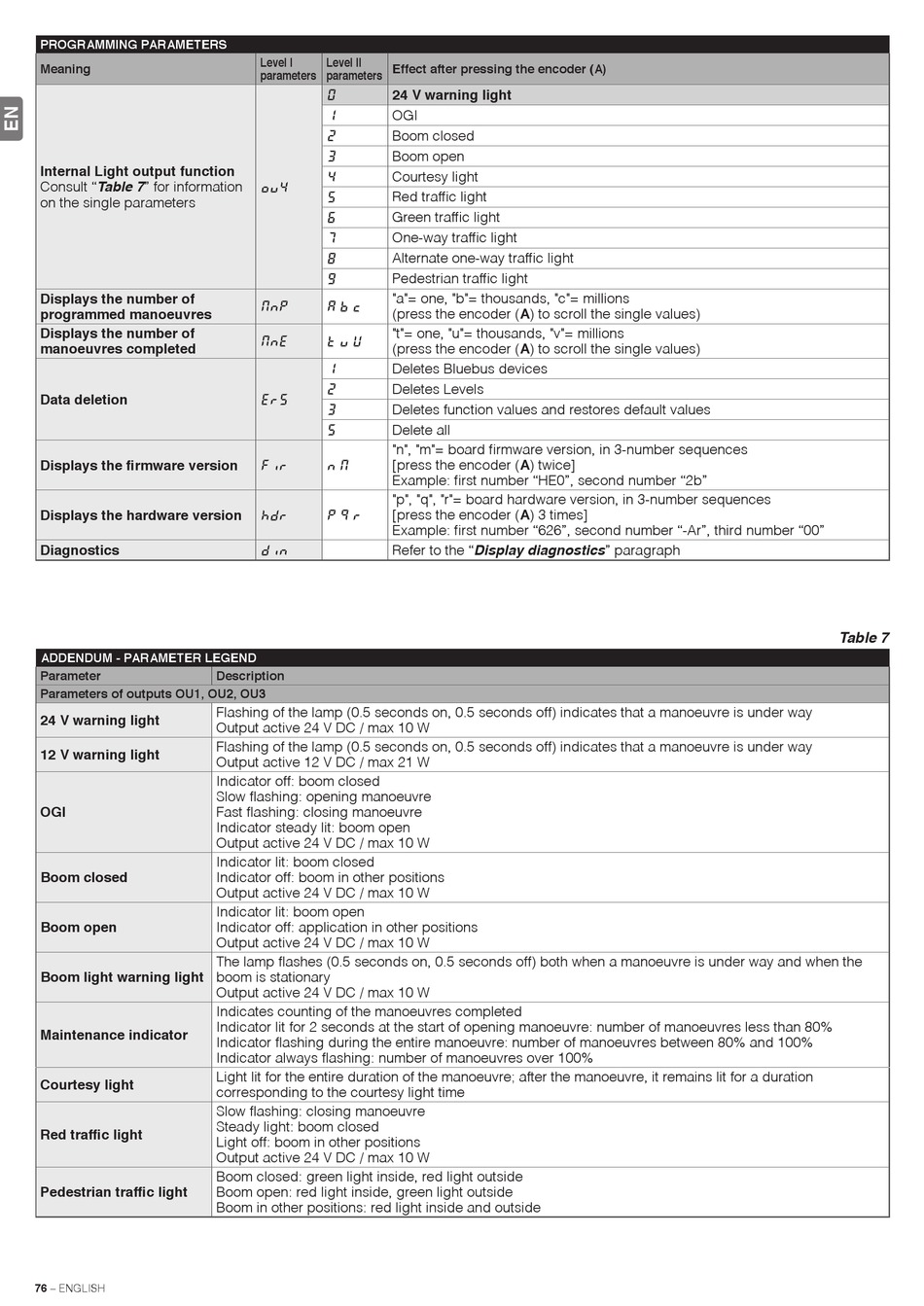

PROGRAMMING PARAMETERS
Meaning
Internal Light output function
Consult "Table 7" for information
on the single parameters
Displays the number of
programmed manoeuvres
Displays the number of
manoeuvres completed
Data deletion
Displays the firmware version
Displays the hardware version
Diagnostics
ADDENDUM - PARAMETER LEGEND
Parameter
Parameters of outputs OU1, OU2, OU3
24 V warning light
12 V warning light
OGI
Boom closed
Boom open
Boom light warning light
Maintenance indicator
Courtesy light
Red traffic light
Pedestrian traffic light
76 – ENGLISH
Level I Level II
parameters parameters
0
1
2
3
4
O U 4
5
6
7
8
9
M n P a b c
M n E t u v
1
2
E r S
3
5
F i r n m
H d r p q r
d i n
Description
Flashing of the lamp (0.5 seconds on, 0.5 seconds off) indicates that a manoeuvre is under way
Output active 24 V DC / max 10 W
Flashing of the lamp (0.5 seconds on, 0.5 seconds off) indicates that a manoeuvre is under way
Output active 12 V DC / max 21 W
Indicator off: boom closed
Slow flashing: opening manoeuvre
Fast flashing: closing manoeuvre
Indicator steady lit: boom open
Output active 24 V DC / max 10 W
Indicator lit: boom closed
Indicator off: boom in other positions
Output active 24 V DC / max 10 W
Indicator lit: boom open
Indicator off: application in other positions
Output active 24 V DC / max 10 W
The lamp flashes (0.5 seconds on, 0.5 seconds off) both when a manoeuvre is under way and when the
boom is stationary
Output active 24 V DC / max 10 W
Indicates counting of the manoeuvres completed
Indicator lit for 2 seconds at the start of opening manoeuvre: number of manoeuvres less than 80%
Indicator flashing during the entire manoeuvre: number of manoeuvres between 80% and 100%
Indicator always flashing: number of manoeuvres over 100%
Light lit for the entire duration of the manoeuvre; after the manoeuvre, it remains lit for a duration
corresponding to the courtesy light time
Slow flashing: closing manoeuvre
Steady light: boom closed
Light off: boom in other positions
Output active 24 V DC / max 10 W
Boom closed: green light inside, red light outside
Boom open: red light inside, green light outside
Boom in other positions: red light inside and outside
Effect after pressing the encoder (A)
24 V warning light
OGI
Boom closed
Boom open
Courtesy light
Red traffic light
Green traffic light
One-way traffic light
Alternate one-way traffic light
Pedestrian traffic light
"a"= one, "b"= thousands, "c"= millions
(press the encoder (A) to scroll the single values)
"t"= one, "u"= thousands, "v"= millions
(press the encoder (A) to scroll the single values)
Deletes Bluebus devices
Deletes Levels
Deletes function values and restores default values
Delete all
"n", "m"= board firmware version, in 3-number sequences
[press the encoder (A) twice]
Example: first number "HE0", second number "2b"
"p", "q", "r"= board hardware version, in 3-number sequences
[press the encoder (A) 3 times]
Example: first number "626", second number "-Ar", third number "00"
Refer to the "Display diagnostics" paragraph
Table 7
