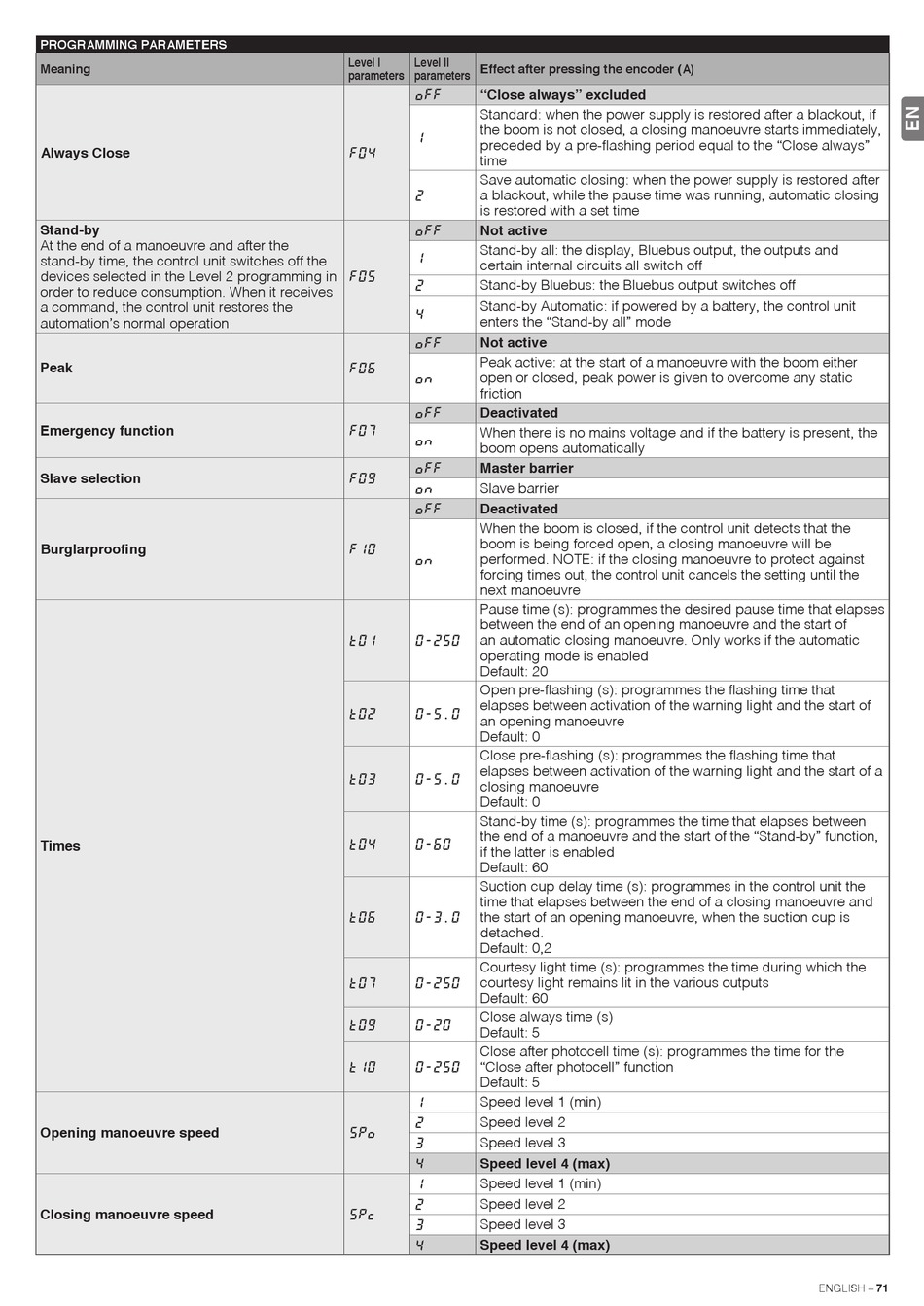

PROGRAMMING PARAMETERS
Meaning
Always Close
Stand-by
At the end of a manoeuvre and after the
stand-by time, the control unit switches off the
devices selected in the Level 2 programming in
order to reduce consumption. When it receives
a command, the control unit restores the
automation's normal operation
Peak
Emergency function
Slave selection
Burglarproofing
Times
Opening manoeuvre speed
Closing manoeuvre speed
Level I Level II
Effect after pressing the encoder (A)
parameters parameters
"Close always" excluded
O F F
Standard: when the power supply is restored after a blackout, if
the boom is not closed, a closing manoeuvre starts immediately,
1
preceded by a pre-flashing period equal to the "Close always"
F 0 4
time
Save automatic closing: when the power supply is restored after
a blackout, while the pause time was running, automatic closing
2
is restored with a set time
Not active
O F F
Stand-by all: the display, Bluebus output, the outputs and
1
certain internal circuits all switch off
F 0 5
Stand-by Bluebus: the Bluebus output switches off
2
Stand-by Automatic: if powered by a battery, the control unit
4
enters the "Stand-by all" mode
Not active
O F F
Peak active: at the start of a manoeuvre with the boom either
F 0 6
open or closed, peak power is given to overcome any static
O n
friction
Deactivated
O F F
When there is no mains voltage and if the battery is present, the
F 0 7
O n
boom opens automatically
Master barrier
O F F
F 0 9
Slave barrier
O n
Deactivated
O F F
When the boom is closed, if the control unit detects that the
boom is being forced open, a closing manoeuvre will be
F 1 0
performed. NOTE: if the closing manoeuvre to protect against
O n
forcing times out, the control unit cancels the setting until the
next manoeuvre
Pause time (s): programmes the desired pause time that elapses
between the end of an opening manoeuvre and the start of
an automatic closing manoeuvre. Only works if the automatic
t 0 1 0 - 2 5 0
operating mode is enabled
Default: 20
Open pre-flashing (s): programmes the flashing time that
elapses between activation of the warning light and the start of
t 0 2 0 - 5 . 0
an opening manoeuvre
Default: 0
Close pre-flashing (s): programmes the flashing time that
elapses between activation of the warning light and the start of a
t 0 3 0 - 5 . 0
closing manoeuvre
Default: 0
Stand-by time (s): programmes the time that elapses between
the end of a manoeuvre and the start of the "Stand-by" function,
t 0 4 0 - 6 0
if the latter is enabled
Default: 60
Suction cup delay time (s): programmes in the control unit the
time that elapses between the end of a closing manoeuvre and
the start of an opening manoeuvre, when the suction cup is
t 0 6 0 - 3 . 0
detached.
Default: 0,2
Courtesy light time (s): programmes the time during which the
courtesy light remains lit in the various outputs
t 0 7 0 - 2 5 0
Default: 60
Close always time (s)
t 0 9 0 - 2 0
Default: 5
Close after photocell time (s): programmes the time for the
"Close after photocell" function
t 1 0 0 - 2 5 0
Default: 5
Speed level 1 (min)
1
Speed level 2
2
S P O
Speed level 3
3
Speed level 4 (max)
4
Speed level 1 (min)
1
Speed level 2
2
S P C
Speed level 3
3
Speed level 4 (max)
4
