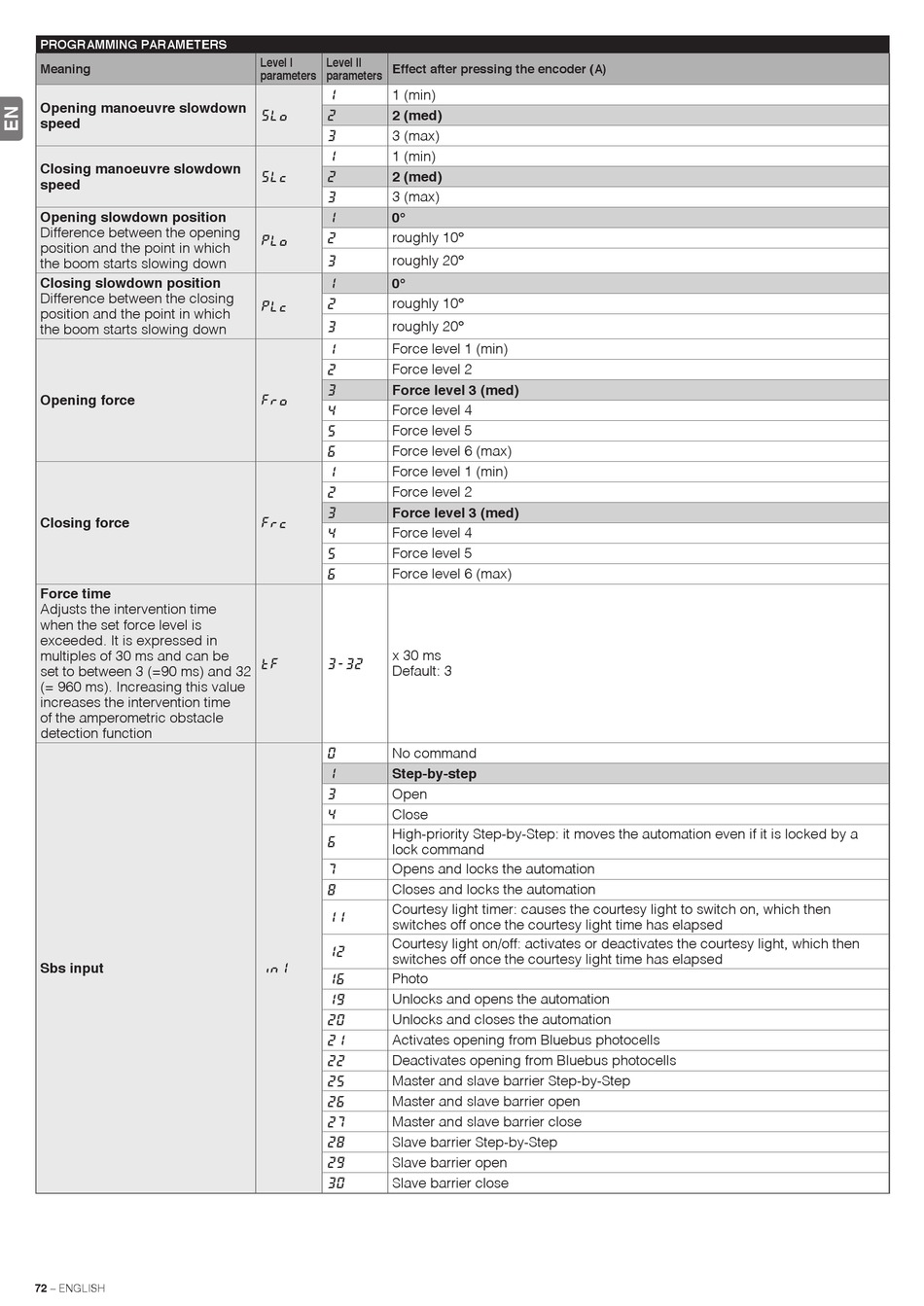

PROGRAMMING PARAMETERS
Meaning
Opening manoeuvre slowdown
speed
Closing manoeuvre slowdown
speed
Opening slowdown position
Difference between the opening
position and the point in which
the boom starts slowing down
Closing slowdown position
Difference between the closing
position and the point in which
the boom starts slowing down
Opening force
Closing force
Force time
Adjusts the intervention time
when the set force level is
exceeded. It is expressed in
multiples of 30 ms and can be
set to between 3 (=90 ms) and 32
(= 960 ms). Increasing this value
increases the intervention time
of the amperometric obstacle
detection function
Sbs input
72 – ENGLISH
Level I Level II
Effect after pressing the encoder (A)
parameters parameters
1 (min)
1
2 (med)
S L O 2
3 (max)
3
1 (min)
1
2 (med)
S L C 2
3 (max)
3
0°
1
roughly 10°
2
P L O
roughly 20°
3
0°
1
roughly 10°
2
P L C
roughly 20°
3
Force level 1 (min)
1
Force level 2
2
Force level 3 (med)
3
F r O
Force level 4
4
Force level 5
5
Force level 6 (max)
6
Force level 1 (min)
1
Force level 2
2
Force level 3 (med)
3
F r C
Force level 4
4
Force level 5
5
Force level 6 (max)
6
x 30 ms
t F 3 - 3 2
Default: 3
No command
0
Step-by-step
1
Open
3
Close
4
High-priority Step-by-Step: it moves the automation even if it is locked by a
6
lock command
Opens and locks the automation
7
Closes and locks the automation
8
Courtesy light timer: causes the courtesy light to switch on, which then
1 1
switches off once the courtesy light time has elapsed
Courtesy light on/off: activates or deactivates the courtesy light, which then
1 2
switches off once the courtesy light time has elapsed
I n 1
1 6
Unlocks and opens the automation
1 9
Unlocks and closes the automation
2 0
Activates opening from Bluebus photocells
2 1
Deactivates opening from Bluebus photocells
2 2
Master and slave barrier Step-by-Step
2 5
Master and slave barrier open
2 6
Master and slave barrier close
2 7
Slave barrier Step-by-Step
2 8
Slave barrier open
2 9
Slave barrier close
3 0
