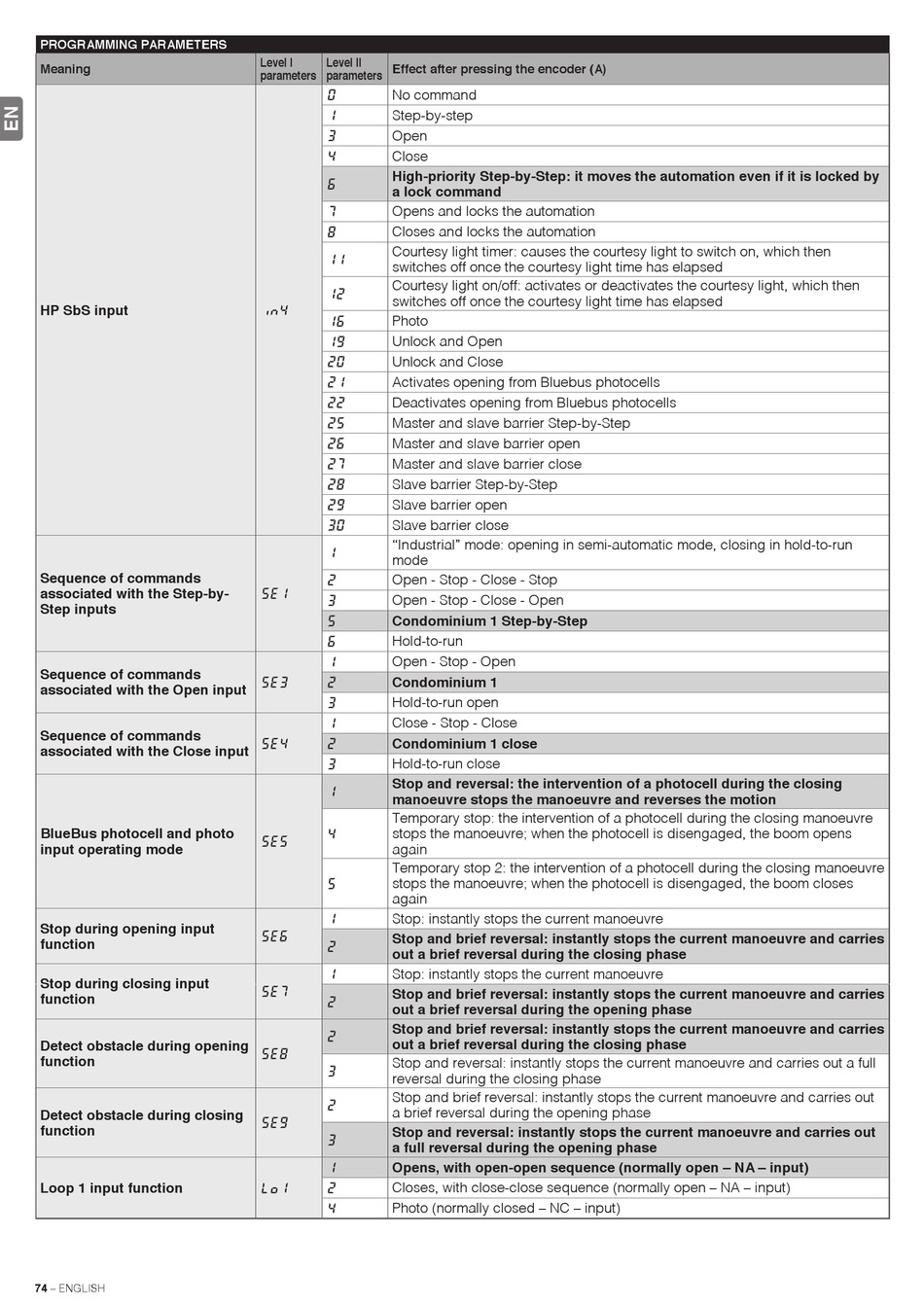

PROGRAMMING PARAMETERS
Meaning
HP SbS input
Sequence of commands
associated with the Step-by-
Step inputs
Sequence of commands
associated with the Open input
Sequence of commands
associated with the Close input
BlueBus photocell and photo
input operating mode
Stop during opening input
function
Stop during closing input
function
Detect obstacle during opening
function
Detect obstacle during closing
function
Loop 1 input function
74 – ENGLISH
Level I Level II
Effect after pressing the encoder (A)
parameters parameters
No command
0
Step-by-step
1
Open
3
Close
4
High-priority Step-by-Step: it moves the automation even if it is locked by
6
a lock command
Opens and locks the automation
7
Closes and locks the automation
8
Courtesy light timer: causes the courtesy light to switch on, which then
1 1
switches off once the courtesy light time has elapsed
Courtesy light on/off: activates or deactivates the courtesy light, which then
1 2
switches off once the courtesy light time has elapsed
I n 4
1 6
Unlock and Open
1 9
Unlock and Close
2 0
Activates opening from Bluebus photocells
2 1
Deactivates opening from Bluebus photocells
2 2
Master and slave barrier Step-by-Step
2 5
Master and slave barrier open
2 6
Master and slave barrier close
2 7
Slave barrier Step-by-Step
2 8
Slave barrier open
2 9
Slave barrier close
3 0
"Industrial" mode: opening in semi-automatic mode, closing in hold-to-run
1
mode
Open - Stop - Close - Stop
2
S E 1 Open - Stop - Close - Open
3
Condominium 1 Step-by-Step
5
Hold-to-run
6
Open - Stop - Open
1
Condominium 1
S E 3 2
Hold-to-run open
3
Close - Stop - Close
1
Condominium 1 close
S E 4 2
Hold-to-run close
3
Stop and reversal: the intervention of a photocell during the closing
1
manoeuvre stops the manoeuvre and reverses the motion
Temporary stop: the intervention of a photocell during the closing manoeuvre
stops the manoeuvre; when the photocell is disengaged, the boom opens
4
S E 5
again
Temporary stop 2: the intervention of a photocell during the closing manoeuvre
stops the manoeuvre; when the photocell is disengaged, the boom closes
5
again
Stop: instantly stops the current manoeuvre
1
Stop and brief reversal: instantly stops the current manoeuvre and carries
S E 6
2
out a brief reversal during the closing phase
Stop: instantly stops the current manoeuvre
1
Stop and brief reversal: instantly stops the current manoeuvre and carries
S E 7
2
out a brief reversal during the opening phase
Stop and brief reversal: instantly stops the current manoeuvre and carries
2
out a brief reversal during the closing phase
S E 8
Stop and reversal: instantly stops the current manoeuvre and carries out a full
3
reversal during the closing phase
Stop and brief reversal: instantly stops the current manoeuvre and carries out
2
a brief reversal during the opening phase
S E 9
Stop and reversal: instantly stops the current manoeuvre and carries out
3
a full reversal during the opening phase
Opens, with open-open sequence (normally open – NA – input)
1
Closes, with close-close sequence (normally open – NA – input)
L O 1 2
Photo (normally closed – NC – input)
4
