NOTE Once you are satisfied with the setting and performance of the new mag head,
re-lock the azimuth and zenith by turning the M.2 x 8 socket patch screws.
TIP Use a tone test film with as high a frequency as possible, 10kHz is preferable.
Capture and review the .wav waveform and FFT in Resolve, using the 'Frequency
Analyser' tool set in Fairlight. Alternatively you can use a third party live analyser tool
if available via the headphone output port or the Desktop Video audio device for
the Scanner.

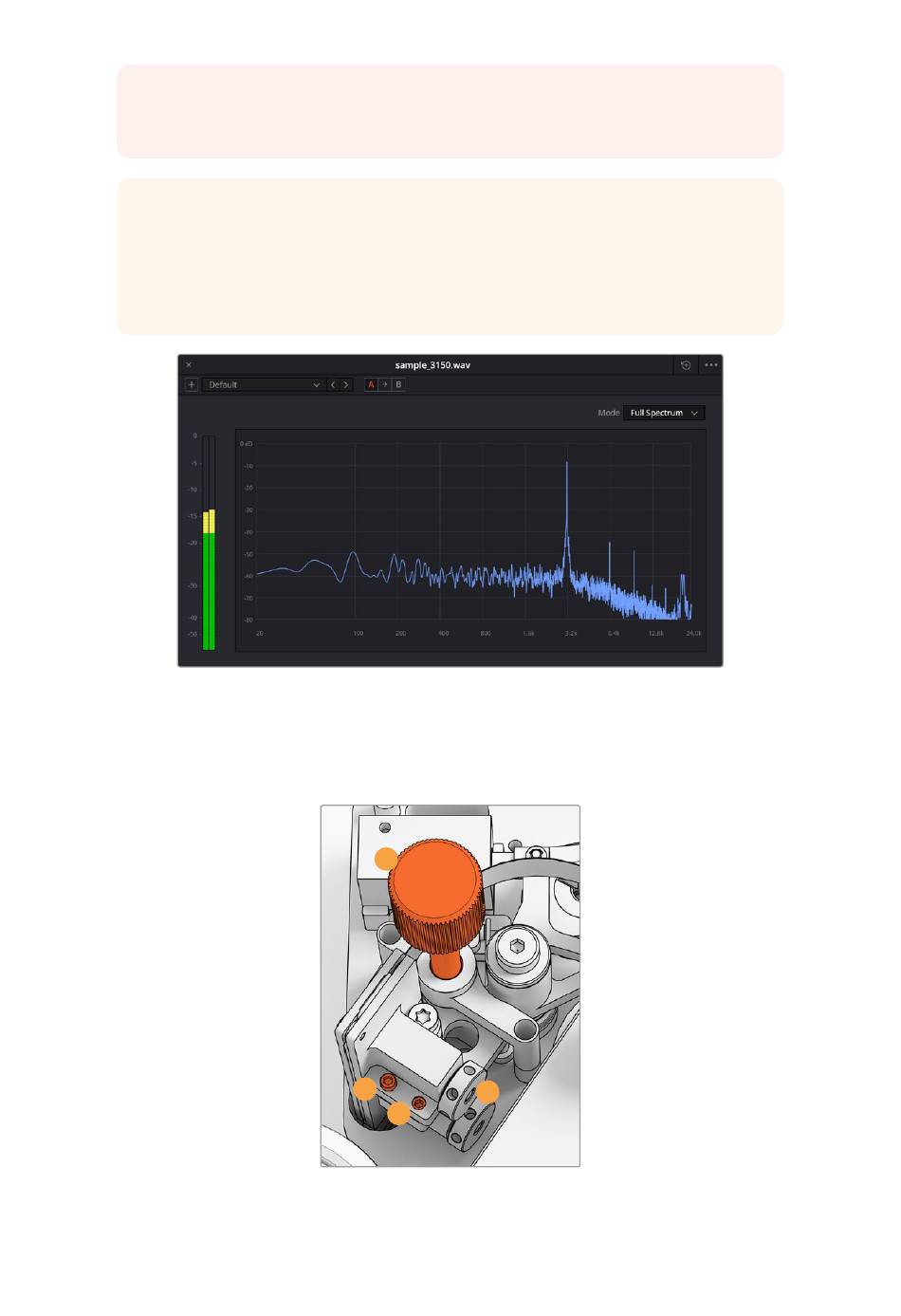

Frequency analyser 3.15kHz W&F track example
Verifying Optical Block Alignment
Ensure the optical audio block is operating properly by verifying the alignment of the optical
audio lenses.
1
2
3
1. Tracking adjust knob 2.
3. Azimuth lock M3 screw
4
Azimuth adjust M2 screw
4. Optical audio lenses
Magnetic Head Replacement 72
