Image Stabilization Enable/Disable Control
The dot to the left of the 'image stabilization' title bar lets you enable or disable your scanner's
hardware-based image stabilization altogether. While hardware stabilization is typically
desirable when you have high quality perforations, you may want to turn this option off if
the condition of the perforations is poor and you decide to use DaVinci's software based
stabilization instead.
When image stabilization is enabled, a horizontal X axis detection overlay is displayed in the
viewer, highlighting the edge of the film perforation that will be used as the reference for
stabilization. This overlay is automatically hidden when recording. Image stabilization is enabled
by default.
Enable X and Y Checkboxes
Enable X and enable Y lets you choose whether to use hardware image stabilization to fix
horizontal gate weave and vertical gate hop respectively. If the results are unsatisfactory with
both axes enabled, you can turn off the axis that's causing issues with stabilization and utilise
DaVinci Resolve's software based stabilization tools instead.
Horizontal Position Slider
Your Cintel scanner attempts to automatically place the stabilization detection overlay at the
best location, with reference to the perforation shown on the currently loaded frame, for the
best stabilization result.
You will notice a thin transparent line in the blue alignment overlay. For optimum stabilization,
this line should touch the edge of the perforation. If the automatic positioning is not ideal, you
can manually move the overlay to a more ideal position, either by dragging it in the viewer with
your mouse, or by using the horizontal slider.
Ideal placement of the stabilization overlay should position the clear line in the alignment
overlay on the edge of the perforation, as shown in the example image. With the overlay
correctly positioned, this enables hardware stabilization of gate weave along the X axis.
Image stabilization automatically manages vertical gate hop when you select the 'enable y'
checkbox. It needs no further adjustment and works in conjunction with horizontal stabilization.

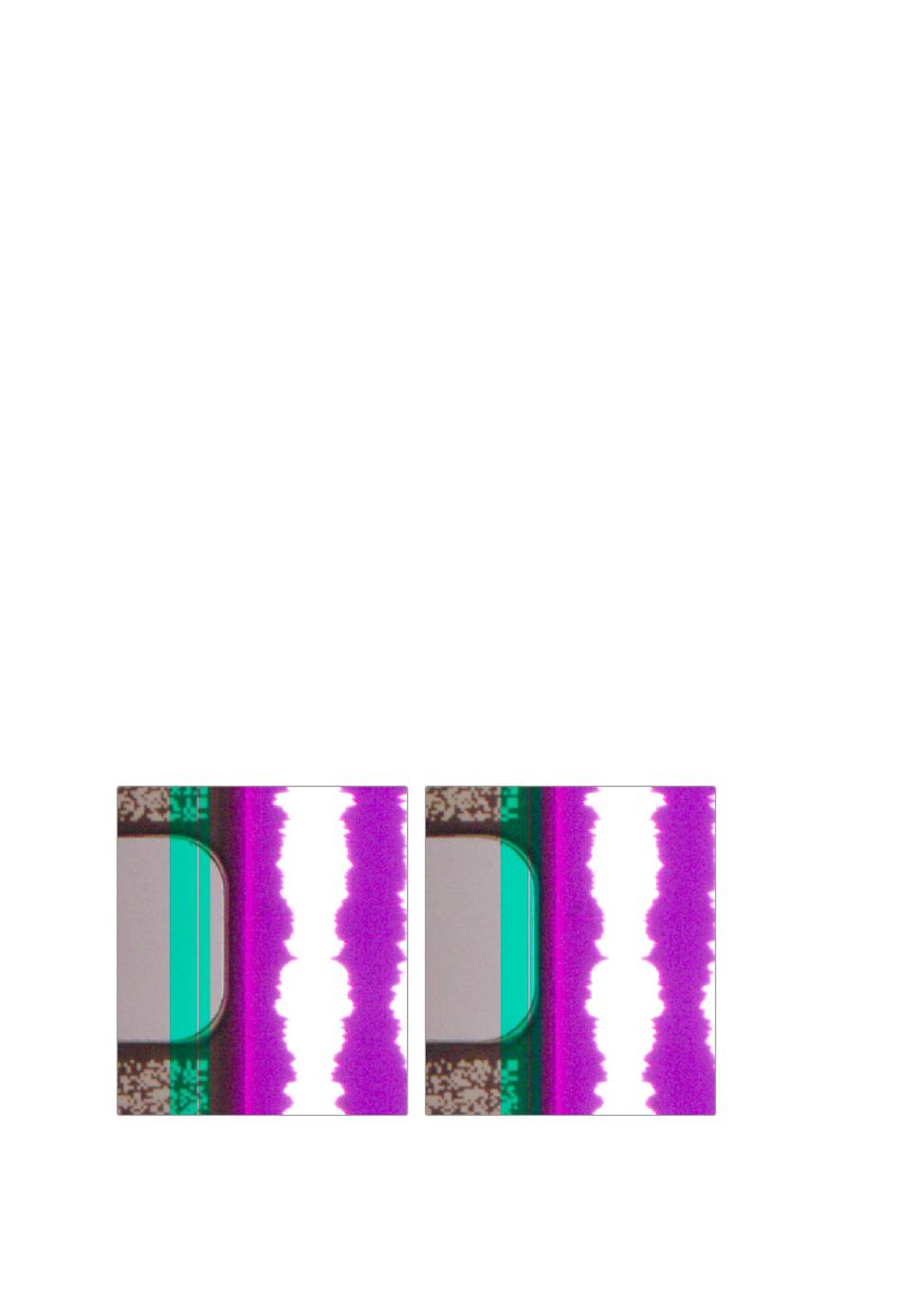

Incorrect 35mm setup. Adjusting the horizontal
position of the stabilization overlay. The overlay
is not aligned to the edge of the perforation.
Correct 35mm setup. The hardware stabilization
control correctly positioned over a perforation in the
viewer. The transparent stripe in the stabilization
overlay touches the edge of the perforation.
