4 Remove the four M4 screw plugs from your Cintel scanner using a 2mm Allen key.
The correct screws are the top left screw, and bottom two screws located beneath the left
options interface XLR connector.
5 Mount the reader to your scanner by plugging its male XLR connector into the female XLR
left options interface connector on your Cintel scanner.
6 Fasten the Audio and KeyKode Reader to your scanner using the 3 x captive M3 screws,
ensuring it is seated flat to the deckplate before tightening.

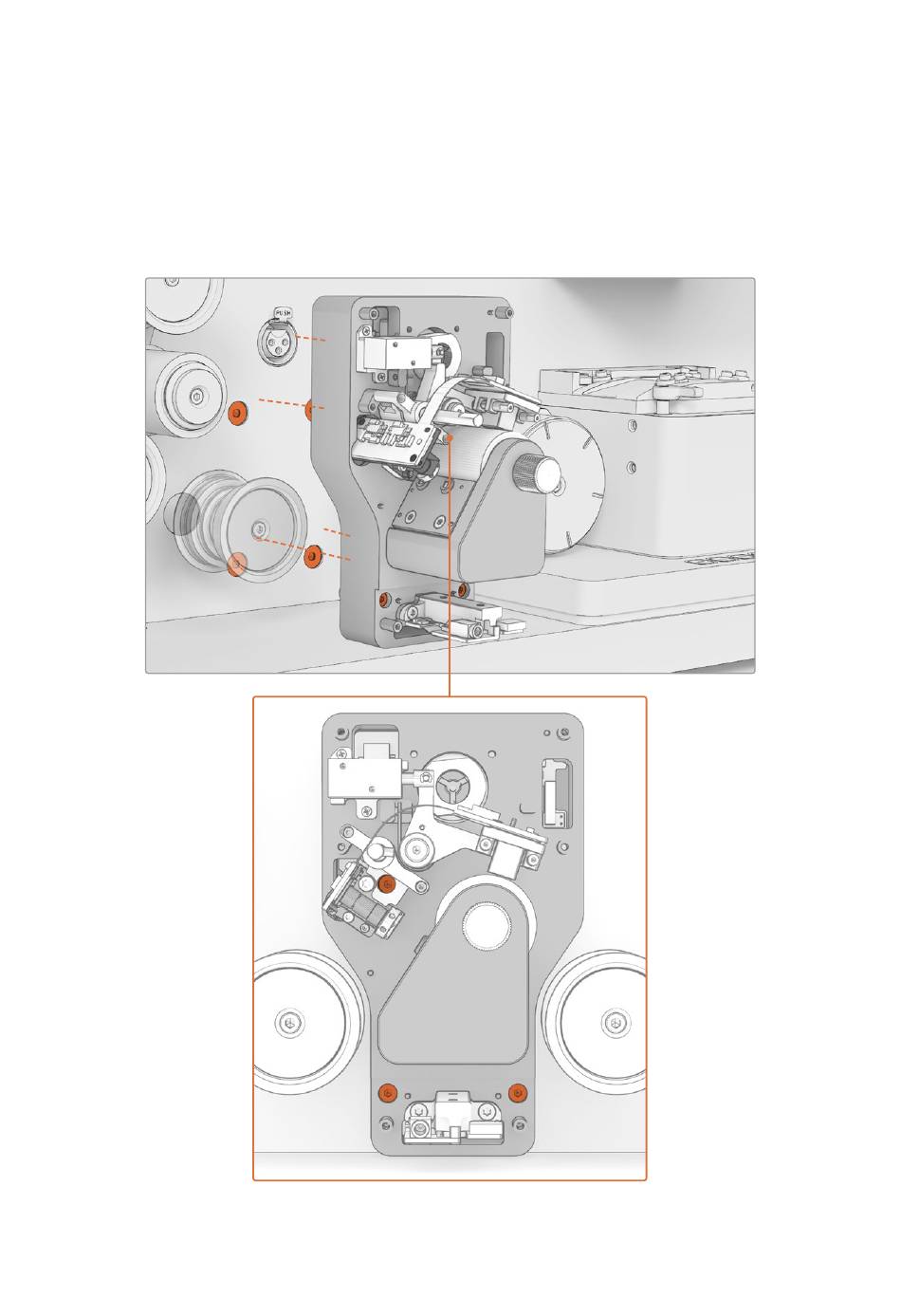

Plug the reader into the left options interface XLR connector and fasten
the reader to your Cintel scanner using the three captive M3 screws
