External Audio

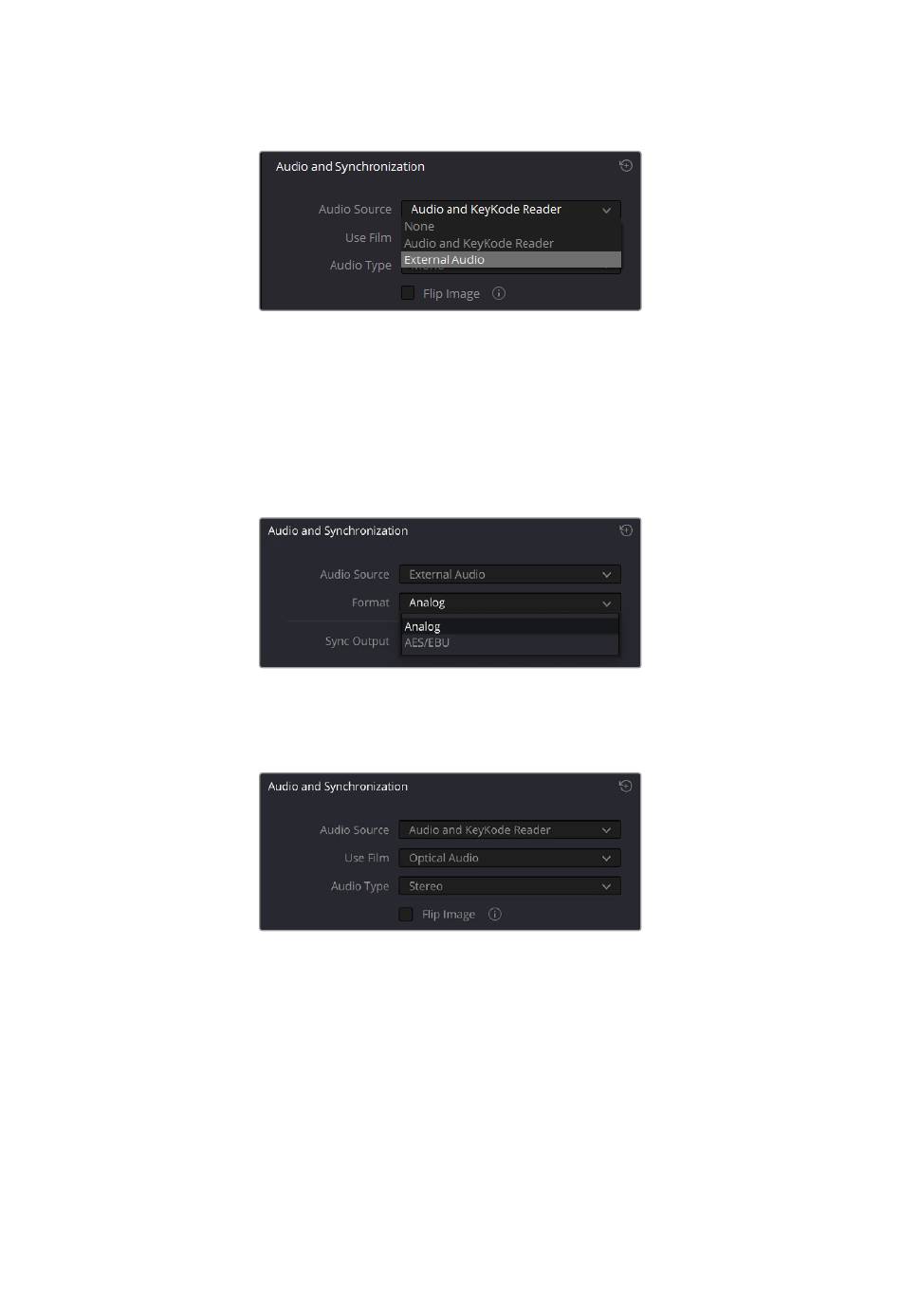

From audio source, click on the pull down menu and select 'external audio'.
When 'external audio' is selected, the XLR audio inputs on the side panel of Cintel Scanner
can accept analog audio or AES/EBU digital audio. Select an appropriate option from the
'format' menu:
Analog
Choose this setting if you are using balanced analog audio.
AES/EBU
Use this option to receive AES/EBU audio, also known as AES3.
Flip Image
If the image is reversed when scanning audio from negative film types, tick the
'flip image' checkbox.
Enable the 'flip image' option to mirror the frame
Optional Audio and KeyKode Reader 53
