Correct alignment leads to a balanced
wear pattern.

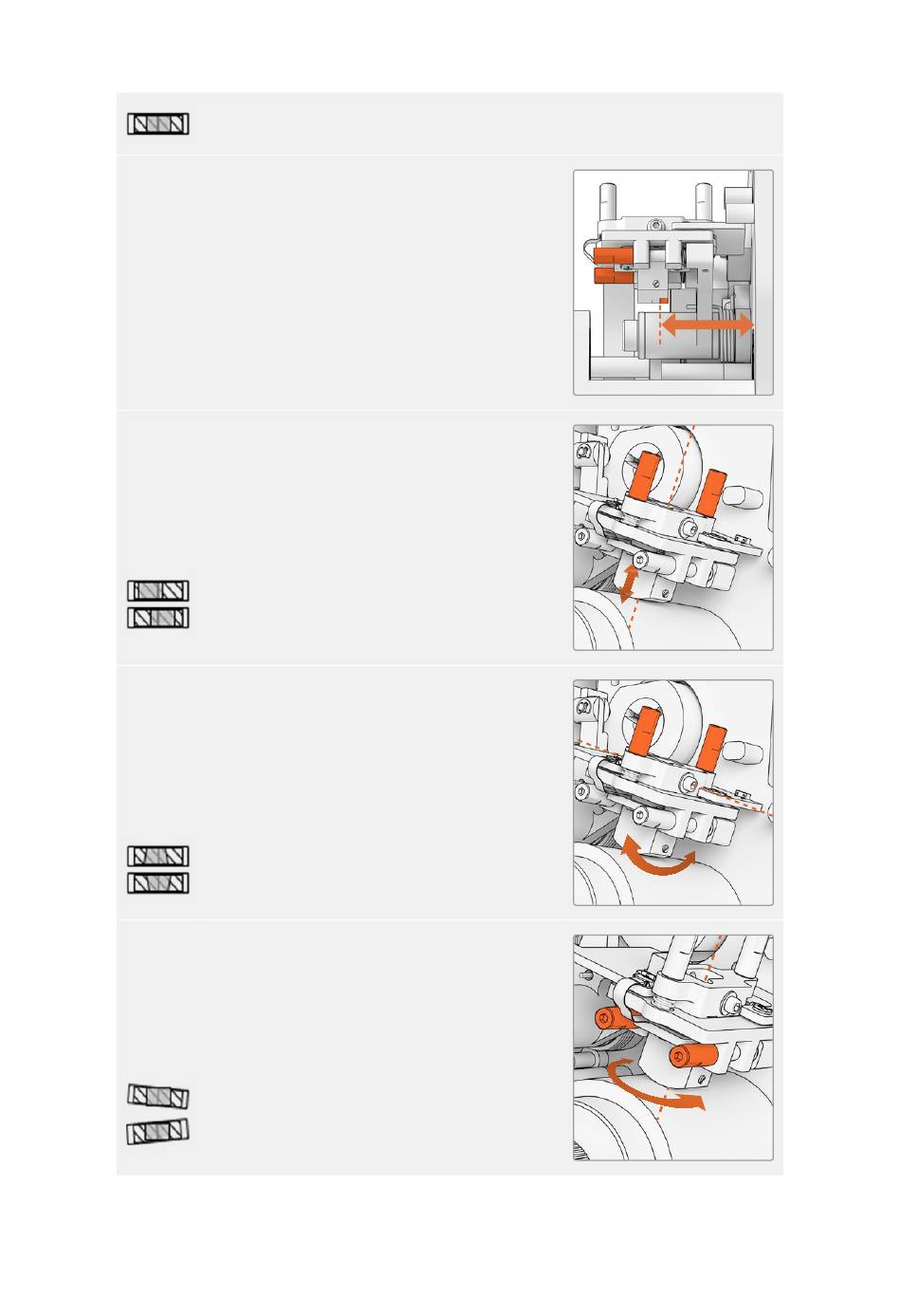

Tracking
Use the horizontal azimuth A1 and A2 screws to physically
align the head to a 16mm SepMag track. As measured before
the build, you should aim to have the distance between the
mag head face edge and reader base set to approximately
23.5mm. Note that all adjuster screws are sprung and grease
damped, therefore do not need to be torqued.
Height
To adjust the mag head height, turn the vertical B1 and B2
screws equally. Examine the height of the head with respect
to the alignment to film. This helps to make sure the wear
pattern is centered with the gap in the mag head.
Incorrect height leads to an unbalanced
wear pattern.
Zenith
To adjust the zenith, also known as the tilt, turn the vertical
B1 and B2 screws individually. Examine the angle of the
tangent of the head with respect to the alignment to film.
This helps to make sure the wear caused by contact with the
gap is even.
Incorrect zenith leads to an unbalanced
wear pattern.
Azimuth
The horizontal A1 and A2 screws for azimuth adjustment set
the perpendicular position of the head. Adjust Azimuth A1
and A2 screws for maximum signal modulation and phase
linearity.
Incorrect azimuth leads to an unbalanced wear
pattern and poor high frequency response.
Magnetic Head Replacement 71
