The 8mm gate features adjustable aperture shutters
To help make adjustments, there are white reference lines on the top face of the gate indicating
the alignment for each film gauge. These reference lines are for guidance as film can have
shrinkage or camera aperture variations, final refinement can be performed by loading a film
sample and monitoring the local HDMI display or DaVinci Resolve preview.
To adjust the aperture shutters:

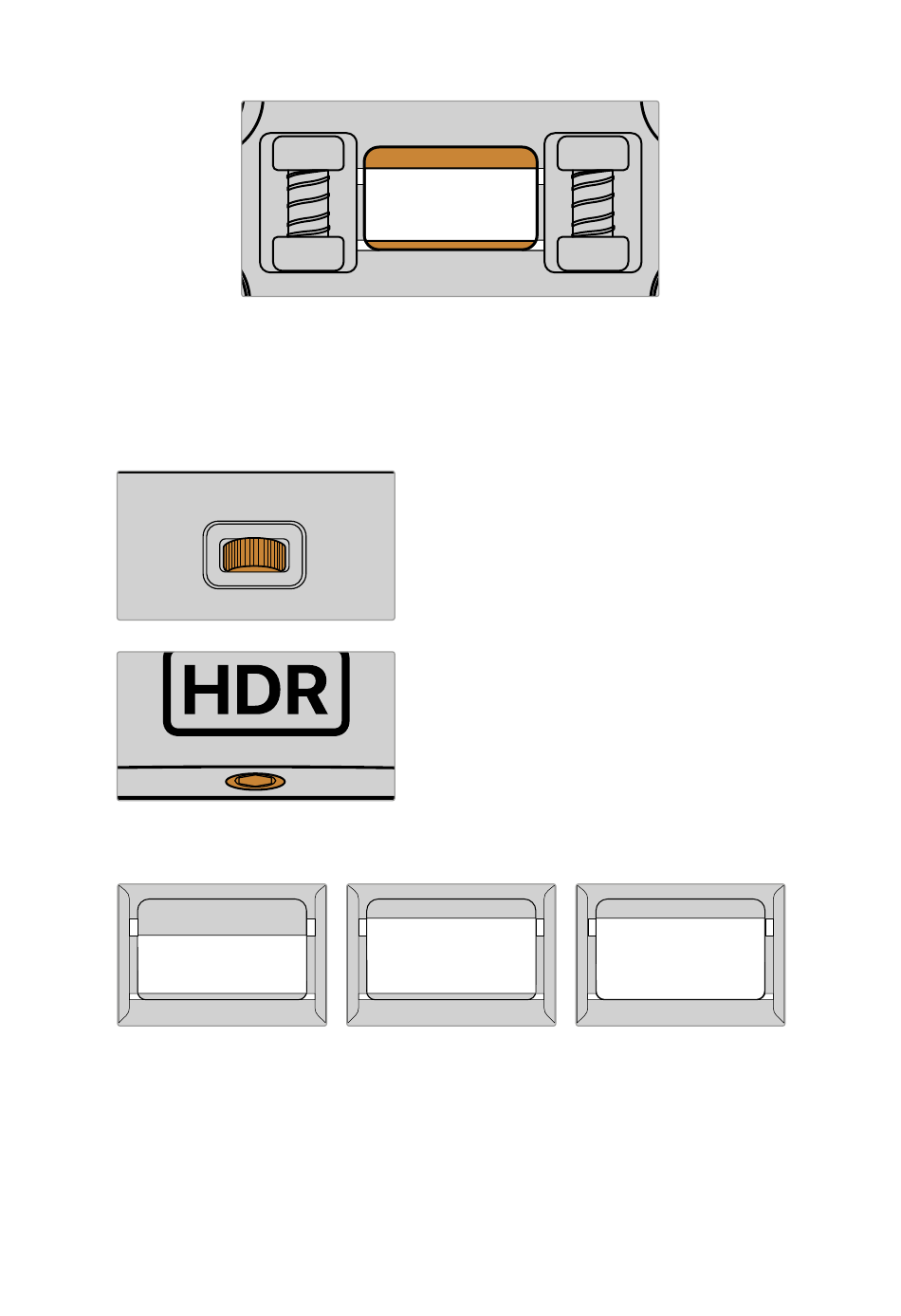

The illustrations below show the aperture shutters adjusted for Standard 8mm, Super 8mm and
Max 8mm film:
Standard 8mm
Use the thumb wheel towards the back of the gate
to adjust the upper perforation side shutter. This
allows you to switch between Standard 8mm and
Super 8mm film.
Using a 2mm Allen key, turn the center screw on
the front of the gate to adjust the lower, offside
shutter. Adjusting this shutter allows you to switch
between Super 8mm and Max 8mm film.
Super 8mm Max 8mm
