Attaching the Audio and KeyKode Reader

The reader is powered by your scanner's left options interface, which is the 6 pin accessory
XLR connector underneath the feeding spool.
To attach the Audio and KeyKode Reader to your Cintel Scanner:
1 First make sure power is disconnected from your Cintel scanner.
2 On the reader's upper adjustment knob, you'll find a small retention screw recessed into
one side. Use a 1.5mm Allen key to loosen this screw and slide the knob off its spindle.
This lets you remove the reader's upper cover.

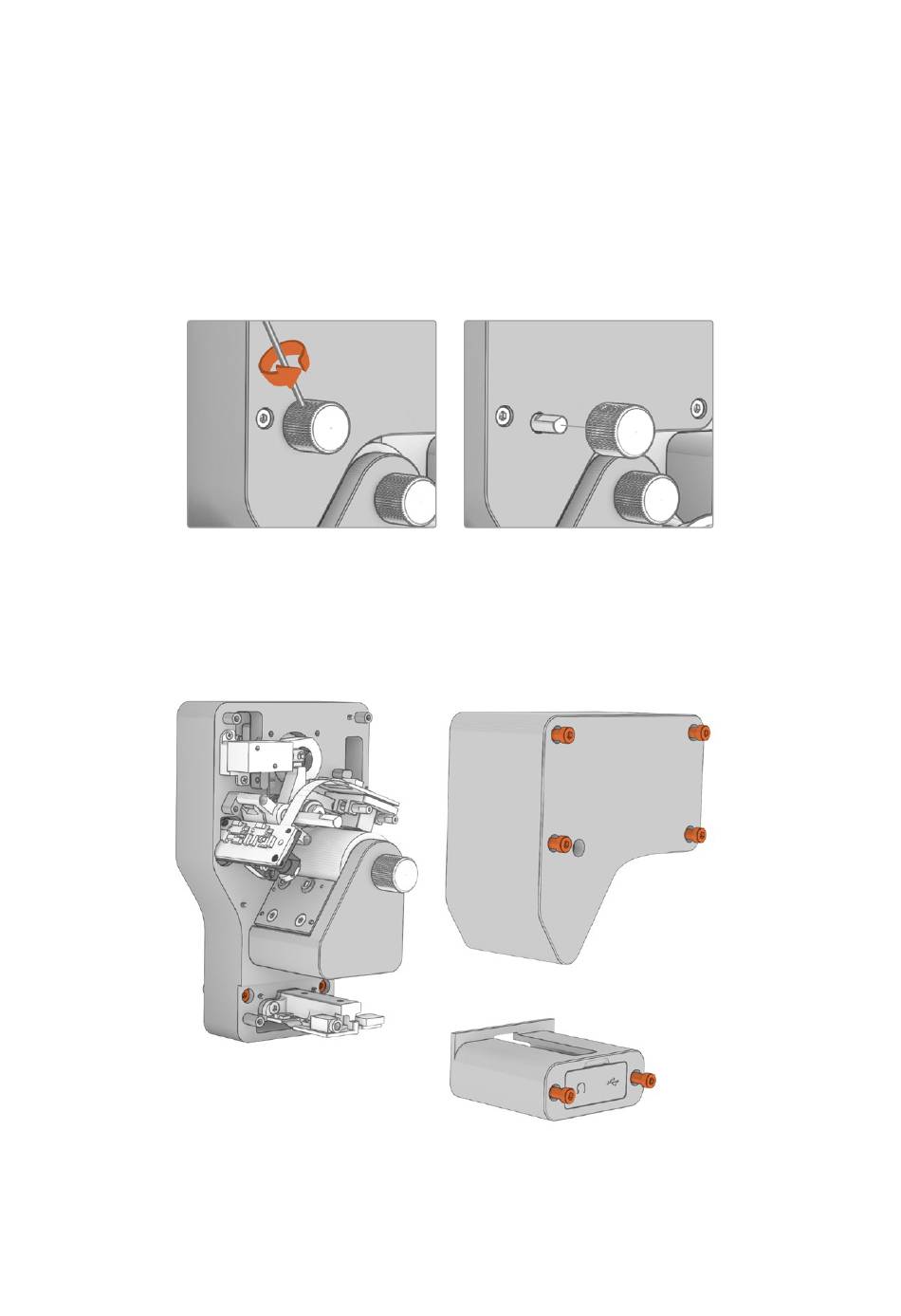

Use a 1.5mm allen key to loosen the adjustment knob's retention
screw, then remove the knob from its spindle
3 Remove the upper and lower covers from the Audio and KeyKode Reader by unscrewing
the 6 x M3 screws with a 2.5mm Allen key. The screws are 'captive' so they remain attached
to the reader. Removing the covers gives you access to the captive screws needed to
attach the reader to your Cintel scanner.
Remove the upper and lower covers from the reader by unscrewing the six M3
cover screws. As they are captive screws, you only need to unscrew them a
short distance until they release contact, as shown in the image above.
