5.4
Connecting the pump, oil tank and hookloader valve block
Note:
Consult the hydraulic diagram of the TITAN (article code HHY00116)
for more information on the hydraulics. This is attached as appendix.

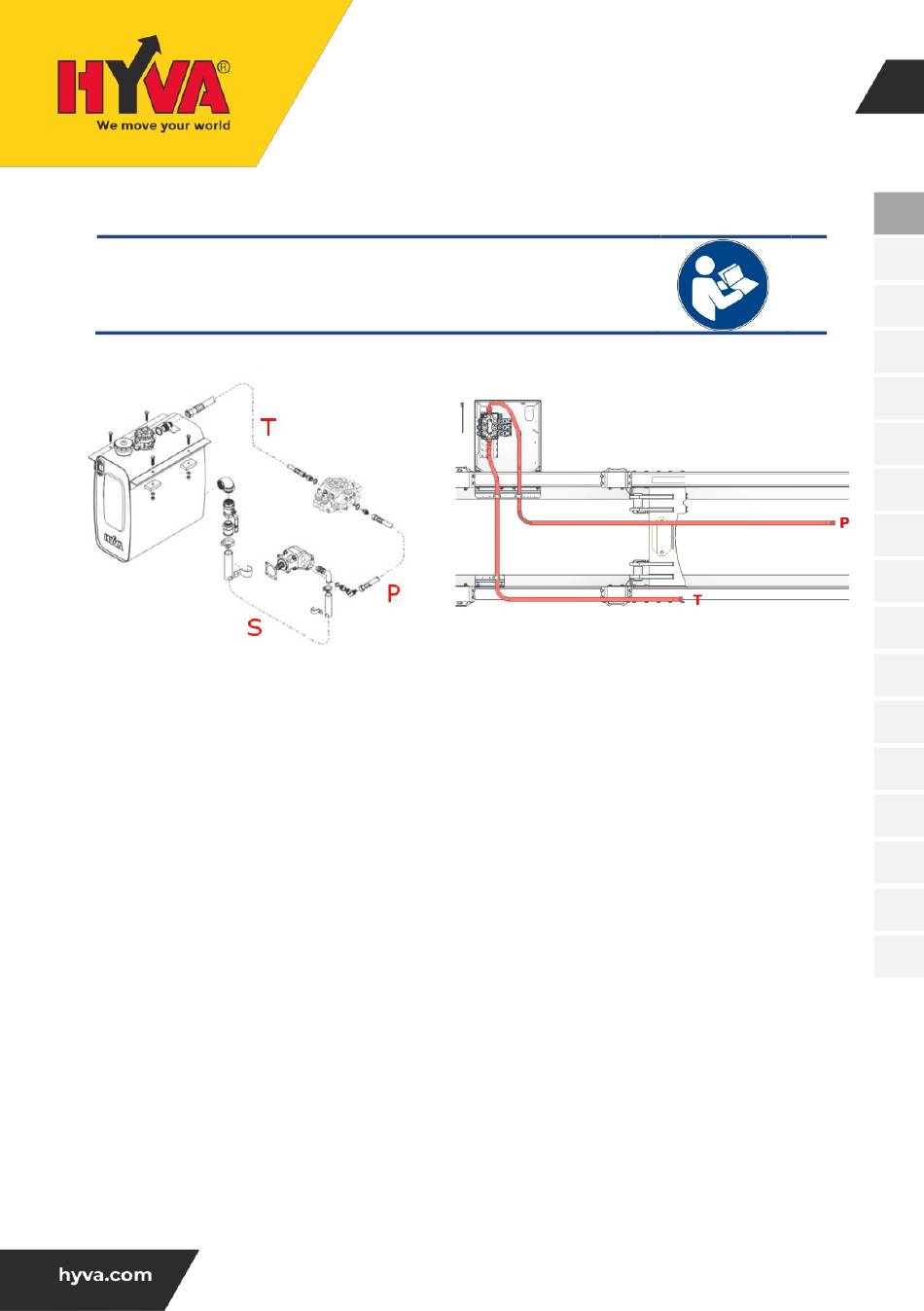

Figure 5.2 Hydraulic loop overview
1.
CONNECT THE PUMP TO THE TANK
1.1. Take the suction hose S supplied with the system;
1.2. Cut it to length;
1.2.1. Bridge the difference between the tank and the pump
1.2.2. Avoid tights bends in order to prevent stresses on the pump housing and fittings
1.3. Deburr the edges and clean out the hose by pulling a cloth through the hose;
1.4. Attach the hose to the LP adapters on the pump and on the oil tank side;
2.
CONNECT THE PUMP TO THE HOOKLOADER
2.1. Run the high pressure P line of the hookloader to the pump
2.2. Support the hose
2.2.1. Take care not to run the hose over hot or sharp surfaces/ edges
2.3. Connect the HP connection of the pump to the hose.
3.
CONNECT THE TANK TO THE HOOKLOADER
3.1. Run the T low pressure line of the hookloader to the tank;
3.2. Attach the hose where necessary to the hookloader;
3.2.1. Take care not to run the hose over hot or sharp surfaces/ edges;
3.3. Attach the hose to the tank filter
Subject to change without notice
TITAN HOOKLOADER
INSTALLATION MANUAL
Figure 5.3 Pressure and relief hose routing
25
OH-E HKL-0002 / 25-05-2020 / RV AB
