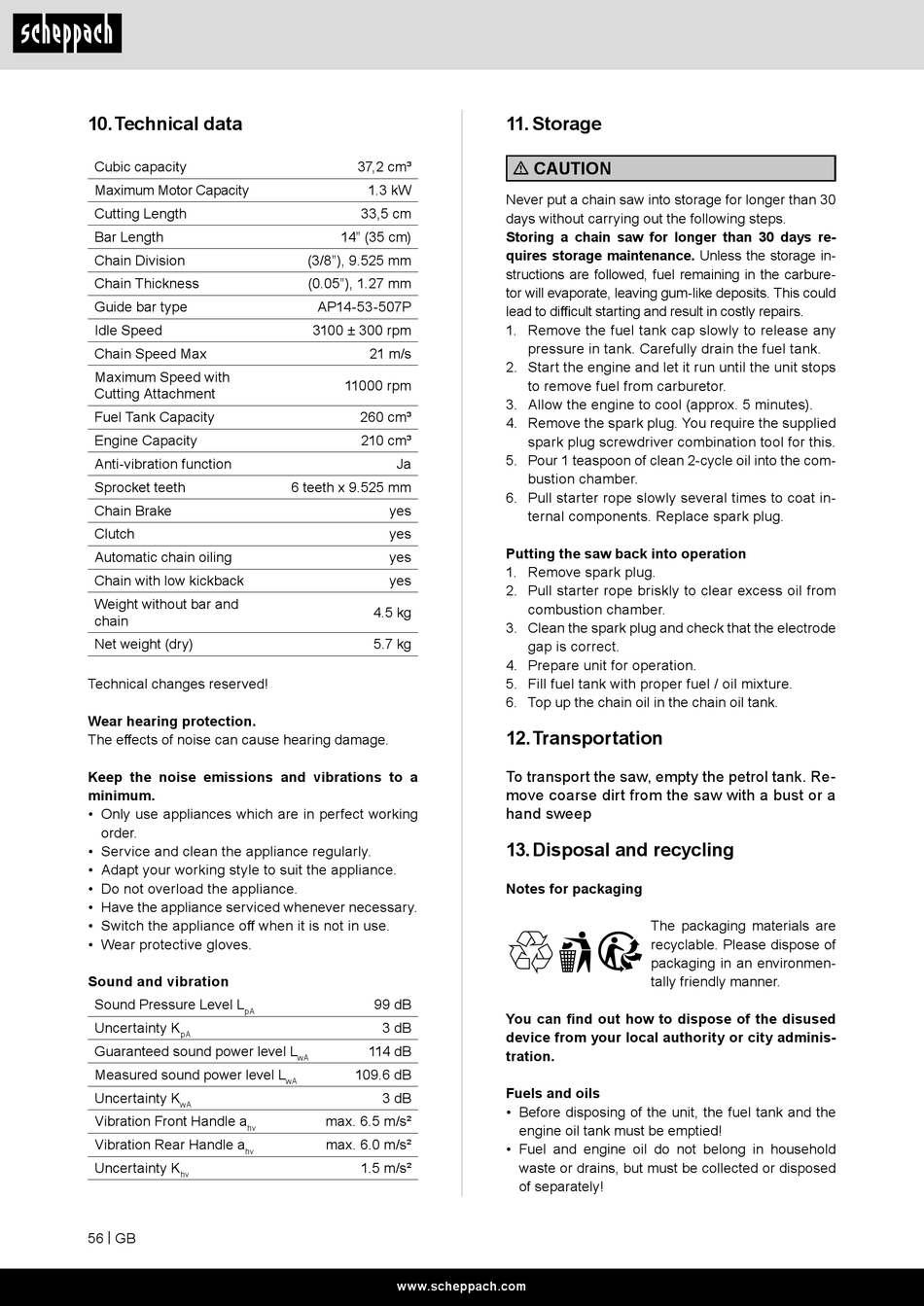

Scheppach PCS38 Originalbetriebsanleitung Seite 56

10. Technical data
Cubic capacity
Maximum Motor Capacity
Cutting Length
Bar Length
Chain Division
Chain Thickness
Guide bar type
Idle Speed
Chain Speed Max
Maximum Speed with
Cutting Attachment
Fuel Tank Capacity
Engine Capacity
Anti-vibration function
Sprocket teeth
Chain Brake
Clutch
Automatic chain oiling
Chain with low kickback
Weight without bar and
chain
Net weight (dry)
Technical changes reserved!
Wear hearing protection.
The effects of noise can cause hearing damage.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Sound and vibration
Sound Pressure Level L
pA
Uncertainty K
pA
Guaranteed sound power level L
Measured sound power level L
Uncertainty K
wA
Vibration Front Handle a
hv
Vibration Rear Handle a
hv
Uncertainty K
hv
56 | GB
37,2 cm³
1.3 kW
33,5 cm
14" (35 cm)
(3/8"), 9.525 mm
(0.05"), 1.27 mm
AP14-53-507P
3100 ± 300 rpm
21 m/s
11000 rpm
260 cm³
210 cm³
Ja
6 teeth x 9.525 mm
yes
yes
yes
yes
4.5 kg
5.7 kg
99 dB
3 dB
114 dB
wA
109.6 dB
wA
3 dB
max. 6.5 m/s²
max. 6.0 m/s²
1.5 m/s²
www.scheppach.com
11. Storage
m CAUTION
Never put a chain saw into storage for longer than 30
days without carrying out the following steps.
Storing a chain saw for longer than 30 days re-
quires storage maintenance. Unless the storage in-
structions are followed, fuel remaining in the carbure-
tor will evaporate, leaving gum-like deposits. This could
lead to difficult starting and result in costly repairs.
1. Remove the fuel tank cap slowly to release any
pressure in tank. Carefully drain the fuel tank.
2. Start the engine and let it run until the unit stops
to remove fuel from carburetor.
3. Allow the engine to cool (approx. 5 minutes).
4. Remove the spark plug. You require the supplied
spark plug screwdriver combination tool for this.
5. Pour 1 teaspoon of clean 2-cycle oil into the com-
bustion chamber.
6. Pull starter rope slowly several times to coat in-
ternal components. Replace spark plug.
Putting the saw back into operation
1. Remove spark plug.
2. Pull starter rope briskly to clear excess oil from
combustion chamber.
3. Clean the spark plug and check that the electrode
gap is correct.
4. Prepare unit for operation.
5. Fill fuel tank with proper fuel / oil mixture.
6. Top up the chain oil in the chain oil tank.
12. Transportation
To transport the saw, empty the petrol tank. Re-
move coarse dirt from the saw with a bust or a
hand sweep
13. Disposal and recycling
Notes for packaging
The packaging materials are
recyclable. Please dispose of
packaging in an environmen-
tally friendly manner.
You can find out how to dispose of the disused
device from your local authority or city adminis-
tration.
Fuels and oils
• Before disposing of the unit, the fuel tank and the
engine oil tank must be emptied!
• Fuel and engine oil do not belong in household
waste or drains, but must be collected or disposed
of separately!
