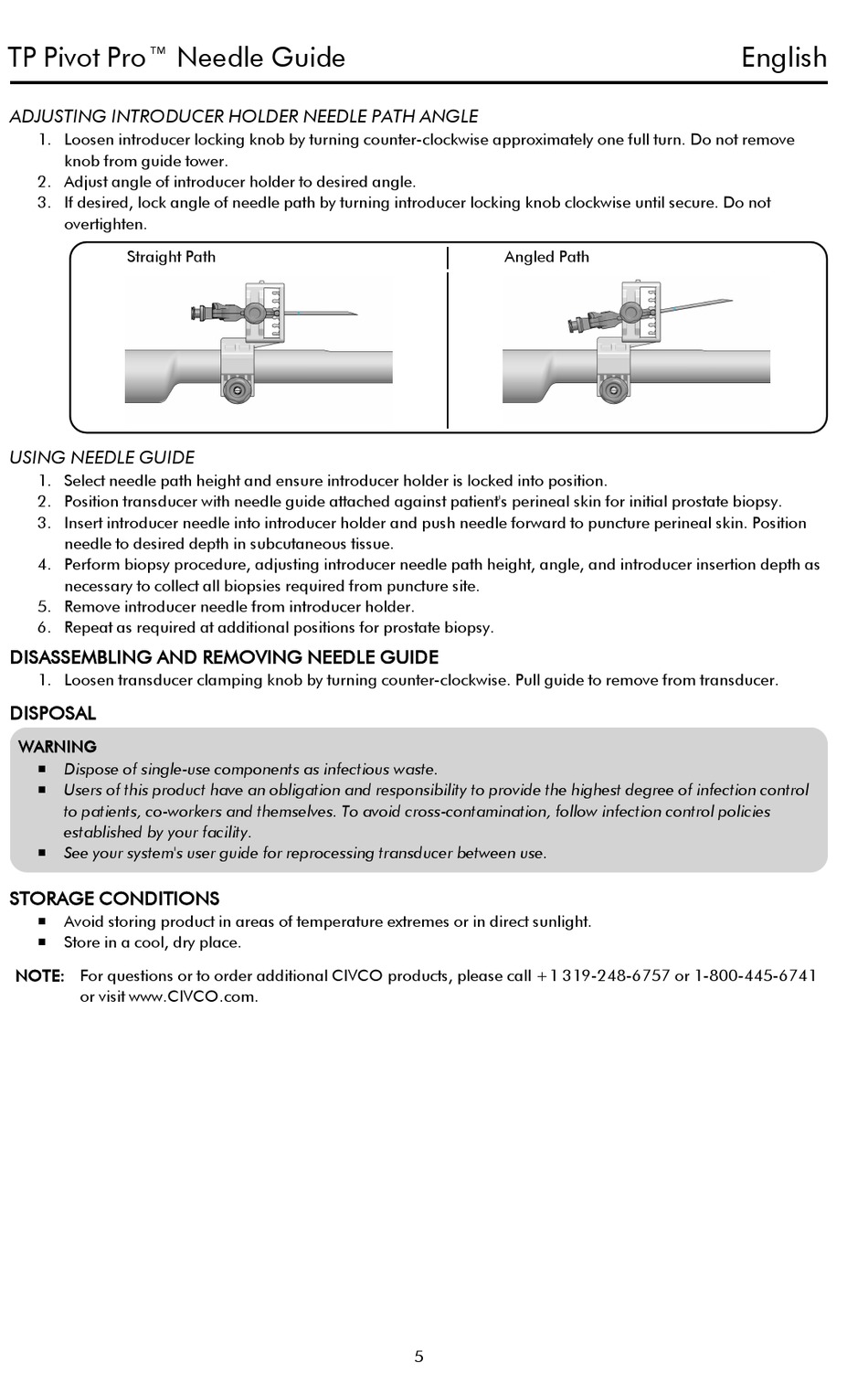

TP Pivot Pro™ Needle Guide
ADJUSTING INTRODUCER HOLDER NEEDLE PATH ANGLE
1. Loosen introducer locking knob by turning counter-clockwise approximately one full turn. Do not remove
knob from guide tower.
2. Adjust angle of introducer holder to desired angle.
3. If desired, lock angle of needle path by turning introducer locking knob clockwise until secure. Do not
overtighten.
Straight Path
USING NEEDLE GUIDE
1. Select needle path height and ensure introducer holder is locked into position.
2. Position transducer with needle guide attached against patient's perineal skin for initial prostate biopsy.
3. Insert introducer needle into introducer holder and push needle forward to puncture perineal skin. Position
needle to desired depth in subcutaneous tissue.
4. Perform biopsy procedure, adjusting introducer needle path height, angle, and introducer insertion depth as
necessary to collect all biopsies required from puncture site.
5. Remove introducer needle from introducer holder.
6. Repeat as required at additional positions for prostate biopsy.
DISASSEMBLING AND REMOVING NEEDLE GUIDE
1. Loosen transducer clamping knob by turning counter-clockwise. Pull guide to remove from transducer.
DISPOSAL
WARNING
Dispose of single-use components as infectious waste.
n
Users of this product have an obligation and responsibility to provide the highest degree of infection control
n
to patients, co-workers and themselves. To avoid cross-contamination, follow infection control policies
established by your facility.
See your system's user guide for reprocessing transducer between use.
n
STORAGE CONDITIONS
Avoid storing product in areas of temperature extremes or in direct sunlight.
n
Store in a cool, dry place.
n
NOTE: For questions or to order additional CIVCO products, please call +1 319-248-6757 or 1-800-445-6741
or visit www.CIVCO.com.
Angled Path
5
English
