Multi-Purpose Workstation™ Stabilizer

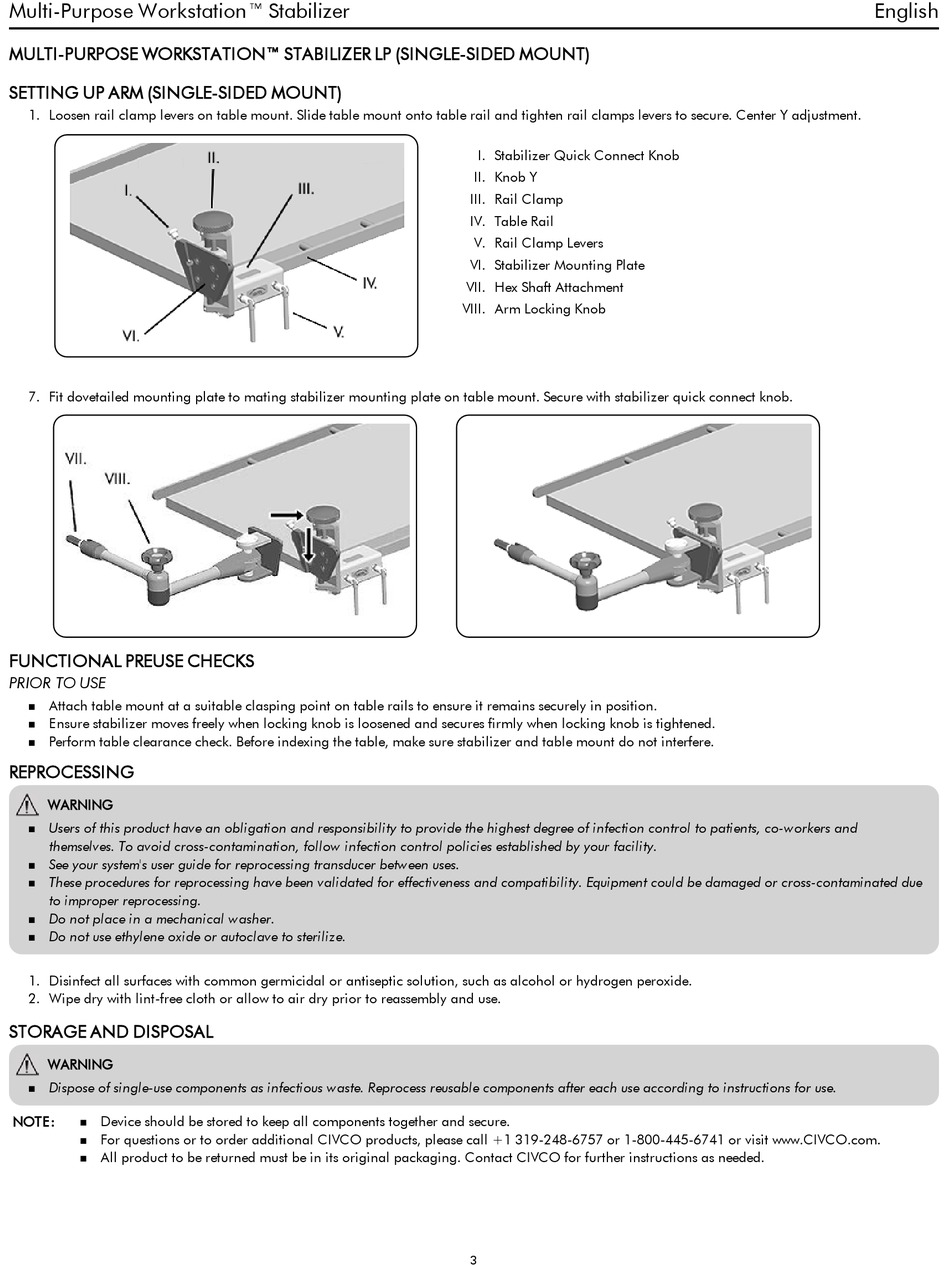

MULTI-PURPOSE WORKSTATION™ STABILIZER LP (SINGLE-SIDED MOUNT)
SETTING UP ARM (SINGLE-SIDED MOUNT)
1. Loosen rail clamp levers on table mount. Slide table mount onto table rail and tighten rail clamps levers to secure. Center Y adjustment.
7. Fit dovetailed mounting plate to mating stabilizer mounting plate on table mount. Secure with stabilizer quick connect knob.
FUNCTIONAL PREUSE CHECKS
PRIOR TO USE
Attach table mount at a suitable clasping point on table rails to ensure it remains securely in position.
n
Ensure stabilizer moves freely when locking knob is loosened and secures firmly when locking knob is tightened.
n
Perform table clearance check. Before indexing the table, make sure stabilizer and table mount do not interfere.
n
REPROCESSING
WARNING
Users of this product have an obligation and responsibility to provide the highest degree of infection control to patients, co-workers and
n
themselves. To avoid cross-contamination, follow infection control policies established by your facility.
See your system's user guide for reprocessing transducer between uses.
n
These procedures for reprocessing have been validated for effectiveness and compatibility. Equipment could be damaged or cross-contaminated due
n
to improper reprocessing.
Do not place in a mechanical washer.
n
Do not use ethylene oxide or autoclave to sterilize.
n
1. Disinfect all surfaces with common germicidal or antiseptic solution, such as alcohol or hydrogen peroxide.
2. Wipe dry with lint-free cloth or allow to air dry prior to reassembly and use.
STORAGE AND DISPOSAL
WARNING
Dispose of single-use components as infectious waste. Reprocess reusable components after each use according to instructions for use.
n
NOTE:
Device should be stored to keep all components together and secure.
n
For questions or to order additional CIVCO products, please call +1 319-248-6757 or 1-800-445-6741 or visit www.CIVCO.com.
n
All product to be returned must be in its original packaging. Contact CIVCO for further instructions as needed.
n
I. Stabilizer Quick Connect Knob
II. Knob Y
III. Rail Clamp
IV. Table Rail
V. Rail Clamp Levers
VI. Stabilizer Mounting Plate
VII. Hex Shaft Attachment
VIII. Arm Locking Knob
3
