Installation instructions, only for experts
4. The front panel of the control panel is inserted with slight pressure into the
housing. Ensure that the lower catches engage noticeably.
5. Connect the 4-pin plug to the RJ11 socket on the control panel.
Installing the control panel

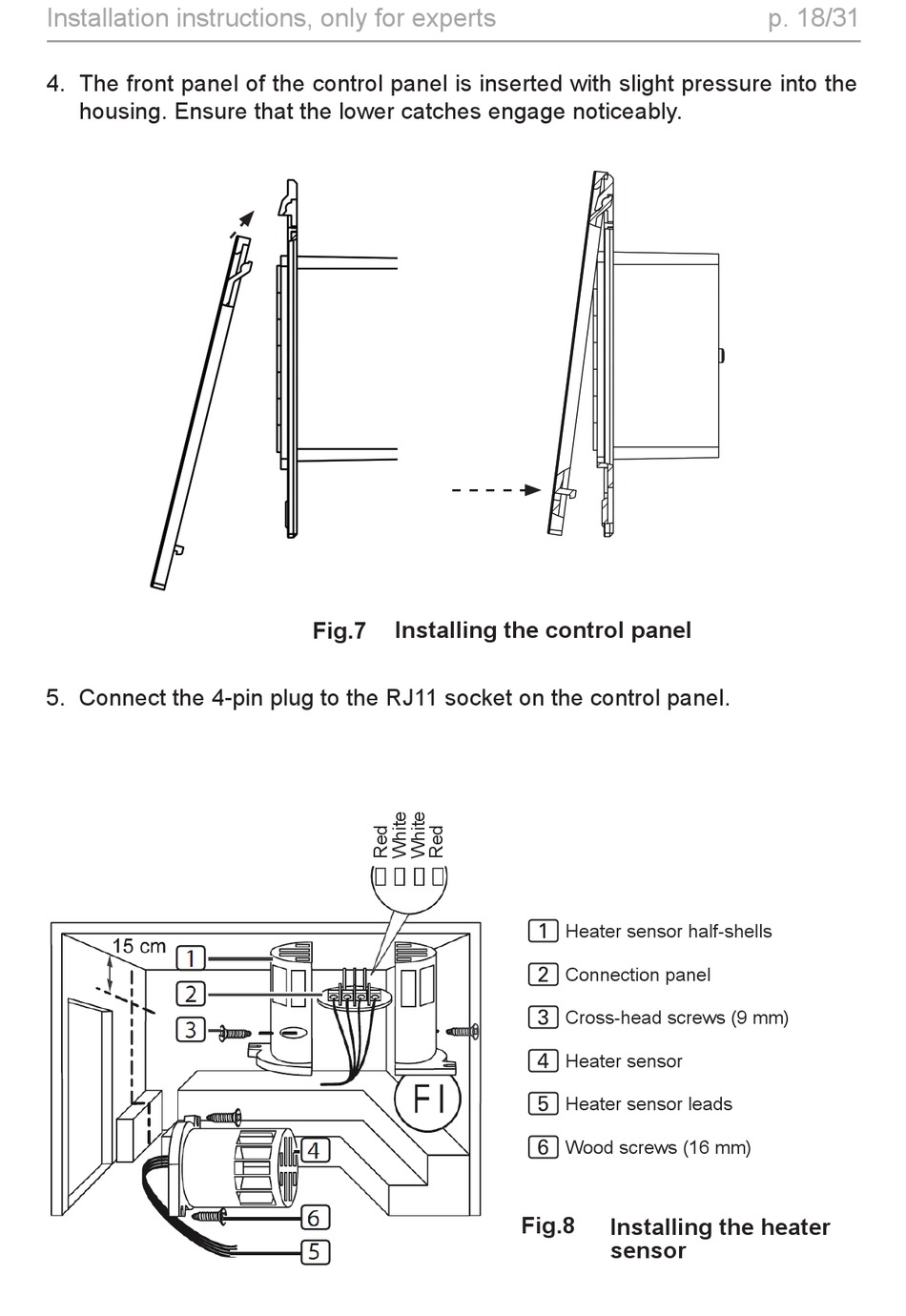

Fig.7
Heater sensor half-shells
1
Connection panel
2
Cross-head screws (9 mm)
3
Heater sensor
4
Heater sensor leads
5
Wood screws (16 mm)
6
Fig.8
Installing the heater
sensor
