Instructions for use for the user

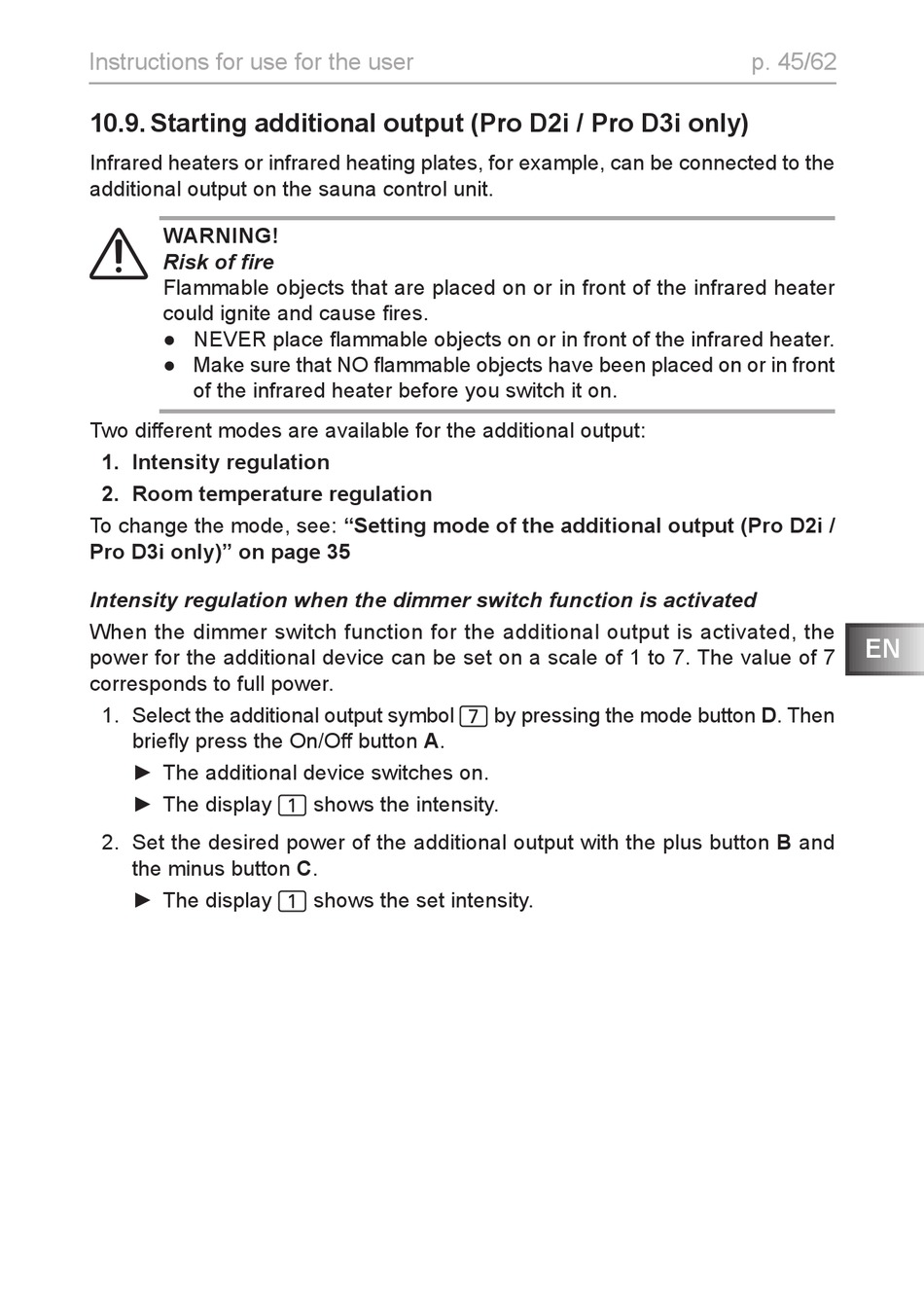

10.9. Starting additional output (Pro D2i / Pro D3i only)

Infrared heaters or infrared heating plates, for example, can be connected to the
additional output on the sauna control unit.
WARNING!
Risk of fire
Flammable objects that are placed on or in front of the infrared heater
could ignite and cause fires.
● NEVER place flammable objects on or in front of the infrared heater.
● Make sure that NO flammable objects have been placed on or in front
of the infrared heater before you switch it on.
Two different modes are available for the additional output:
1. Intensity regulation
2. Room temperature regulation
To change the mode, see: "Setting mode of the additional output (Pro D2i /
Pro D3i only)" on page 35
Intensity regulation when the dimmer switch function is activated
When the dimmer switch function for the additional output is activated, the
power for the additional device can be set on a scale of 1 to 7. The value of 7
corresponds to full power.
1. Select the additional output symbol 7 by pressing the mode button D. Then
briefly press the On/Off button A.
► The additional device switches on.
► The display 1 shows the intensity.
2. Set the desired power of the additional output with the plus button B and
the minus button C.
► The display 1 shows the set intensity.
p. 45/62
EN
