Installation instructions, only for experts

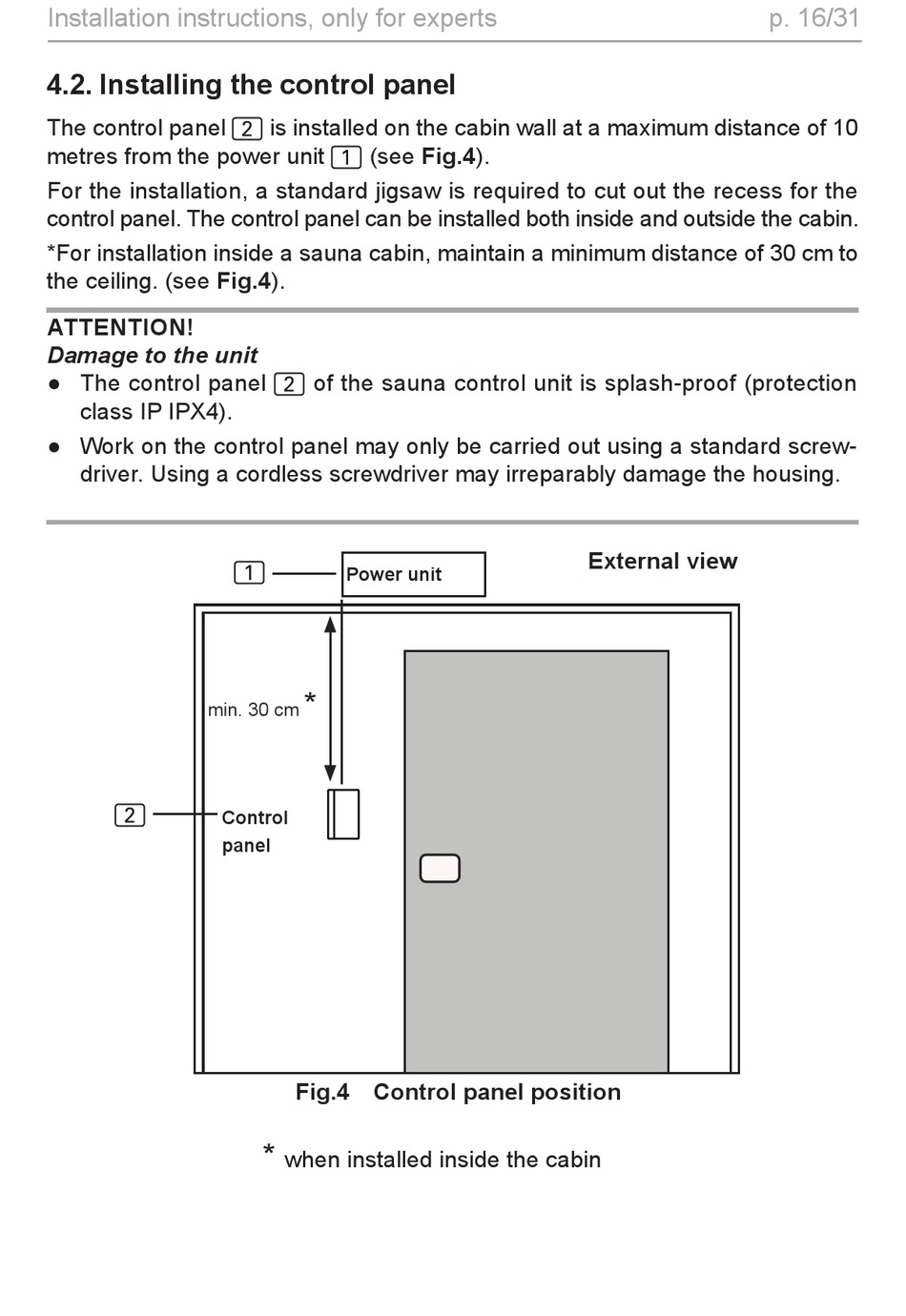

4.2. Installing the control panel

The control panel 2 is installed on the cabin wall at a maximum distance of 10
metres from the power unit 1 (see Fig.4).
For the installation, a standard jigsaw is required to cut out the recess for the
control panel. The control panel can be installed both inside and outside the cabin.
*For installation inside a sauna cabin, maintain a minimum distance of 30 cm to
the ceiling. (see Fig.4).
ATTENTION!
Damage to the unit
● The control panel 2 of the sauna control unit is splash-proof (protection
class IP IPX4).
● Work on the control panel may only be carried out using a standard screw-
driver. Using a cordless screwdriver may irreparably damage the housing.
min. 30 cm
2
1 Power unit
*
Control
panel
Fig.4 Control panel position
*
when installed inside the cabin
External view
p. 16/31
