Instructions for use for the user

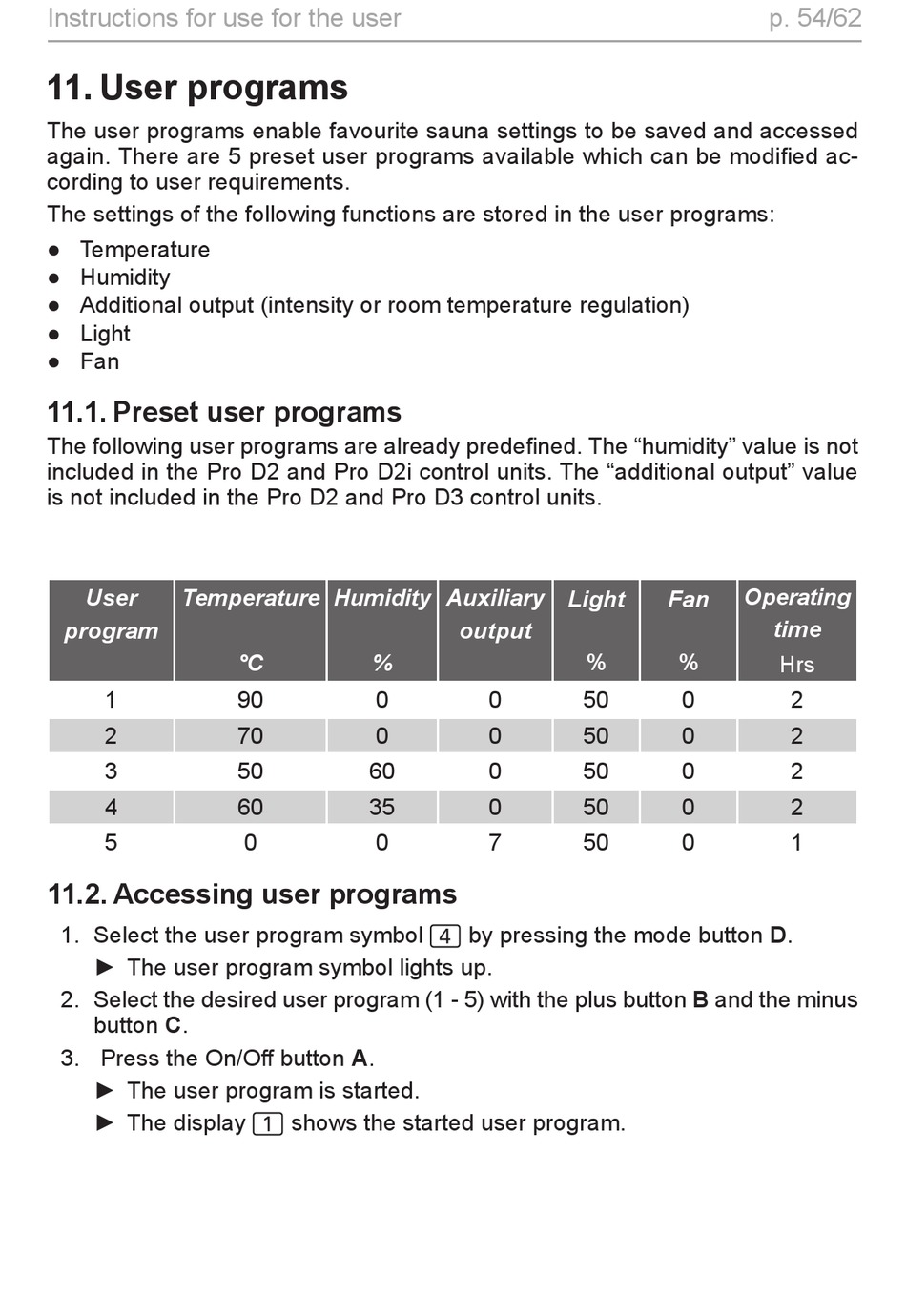

11. User programs

The user programs enable favourite sauna settings to be saved and accessed
again. There are 5 preset user programs available which can be modified ac-
cording to user requirements.
The settings of the following functions are stored in the user programs:
● Temperature
● Humidity
● Additional output (intensity or room temperature regulation)
● Light
● Fan

11.1. Preset user programs

The following user programs are already predefined. The "humidity" value is not
included in the Pro D2 and Pro D2i control units. The "additional output" value
is not included in the Pro D2 and Pro D3 control units.
User Temperature
program
1
2
3
4
5

11.2. Accessing user programs

1. Select the user program symbol 4 by pressing the mode button D.
► The user program symbol lights up.
2. Select the desired user program (1 - 5) with the plus button B and the minus
button C.
3. Press the On/Off button A.
► The user program is started.
► The display 1 shows the started user program.
Humidity
°C %
90 0
70 0
50 60
60 35
0 0
Auxiliary
Light
output
%
0 50
0 50
0 50
0 50
7 50
p. 54/62
Operating
Fan
time
%
Hrs
0 2
0 2
0 2
0 2
0 1
