Installation instructions, only for experts

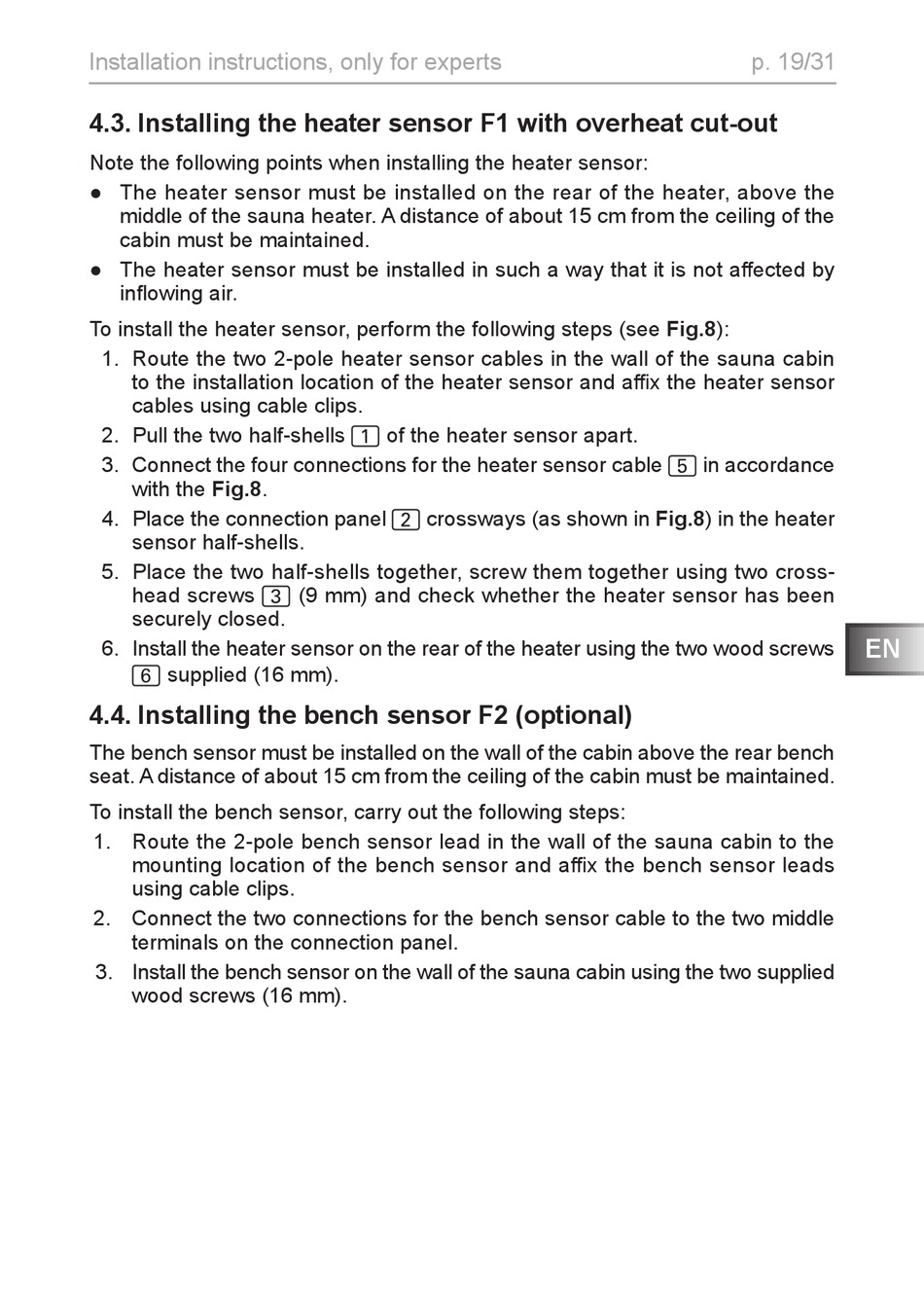

4.3. Installing the heater sensor F1 with overheat cut-out

Note the following points when installing the heater sensor:
● The heater sensor must be installed on the rear of the heater, above the
middle of the sauna heater. A distance of about 15 cm from the ceiling of the
cabin must be maintained.
● The heater sensor must be installed in such a way that it is not affected by
inflowing air.
To install the heater sensor, perform the following steps (see Fig.8):
1. Route the two 2-pole heater sensor cables in the wall of the sauna cabin
to the installation location of the heater sensor and affix the heater sensor
cables using cable clips.
2. Pull the two half-shells 1 of the heater sensor apart.
3. Connect the four connections for the heater sensor cable 5 in accordance
with the Fig.8.
4. Place the connection panel 2 crossways (as shown in Fig.8) in the heater
sensor half-shells.
5. Place the two half-shells together, screw them together using two cross-
head screws 3 (9 mm) and check whether the heater sensor has been
securely closed.
6. Install the heater sensor on the rear of the heater using the two wood screws
6 supplied (16 mm).

4.4. Installing the bench sensor F2 (optional)

The bench sensor must be installed on the wall of the cabin above the rear bench
seat. A distance of about 15 cm from the ceiling of the cabin must be maintained.
To install the bench sensor, carry out the following steps:
1. Route the 2-pole bench sensor lead in the wall of the sauna cabin to the
mounting location of the bench sensor and affix the bench sensor leads
using cable clips.
2. Connect the two connections for the bench sensor cable to the two middle
terminals on the connection panel.
3. Install the bench sensor on the wall of the sauna cabin using the two supplied
wood screws (16 mm).
