Installation instructions, only for experts

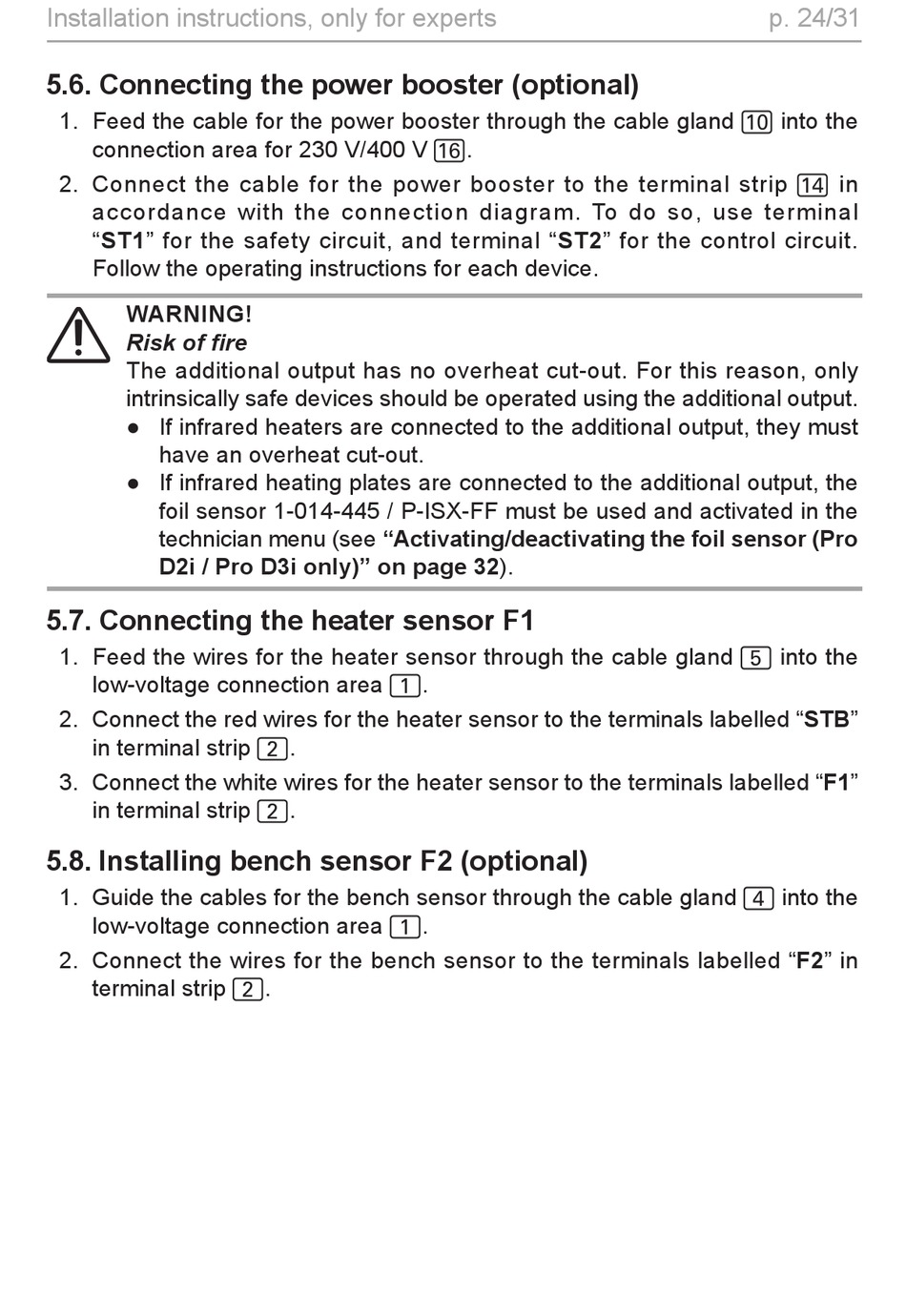

5.6. Connecting the power booster (optional)

1. Feed the cable for the power booster through the cable gland a into the
connection area for 230 V/400 V g.
2. Connect the cable for the power booster to the terminal strip e in
accordance with the connection diagram. To do so, use terminal
"ST1" for the safety circuit, and terminal "ST2" for the control circuit.
Follow the operating instructions for each device.
WARNING!
Risk of fire
The additional output has no overheat cut-out. For this reason, only
intrinsically safe devices should be operated using the additional output.
● If infrared heaters are connected to the additional output, they must
have an overheat cut-out.
● If infrared heating plates are connected to the additional output, the
foil sensor 1-014-445 / P-ISX-FF must be used and activated in the
technician menu (see "Activating/deactivating the foil sensor (Pro
D2i / Pro D3i only)" on page 32).

5.7. Connecting the heater sensor F1

1. Feed the wires for the heater sensor through the cable gland 5 into the
low-voltage connection area 1.
2. Connect the red wires for the heater sensor to the terminals labelled "STB"
in terminal strip 2.
3. Connect the white wires for the heater sensor to the terminals labelled "F1"
in terminal strip 2.

5.8. Installing bench sensor F2 (optional)

1. Guide the cables for the bench sensor through the cable gland 4 into the
low-voltage connection area 1.
2. Connect the wires for the bench sensor to the terminals labelled "F2" in
terminal strip 2.
