4. Identification

4.1 Nameplate

The nameplate states the operating data and
approvals applying to the pump. The nameplate is
fixed with rivets to the side of the stator housing
opposite the electronic unit.
Fix the additional nameplate supplied with the pump
close to the pit.

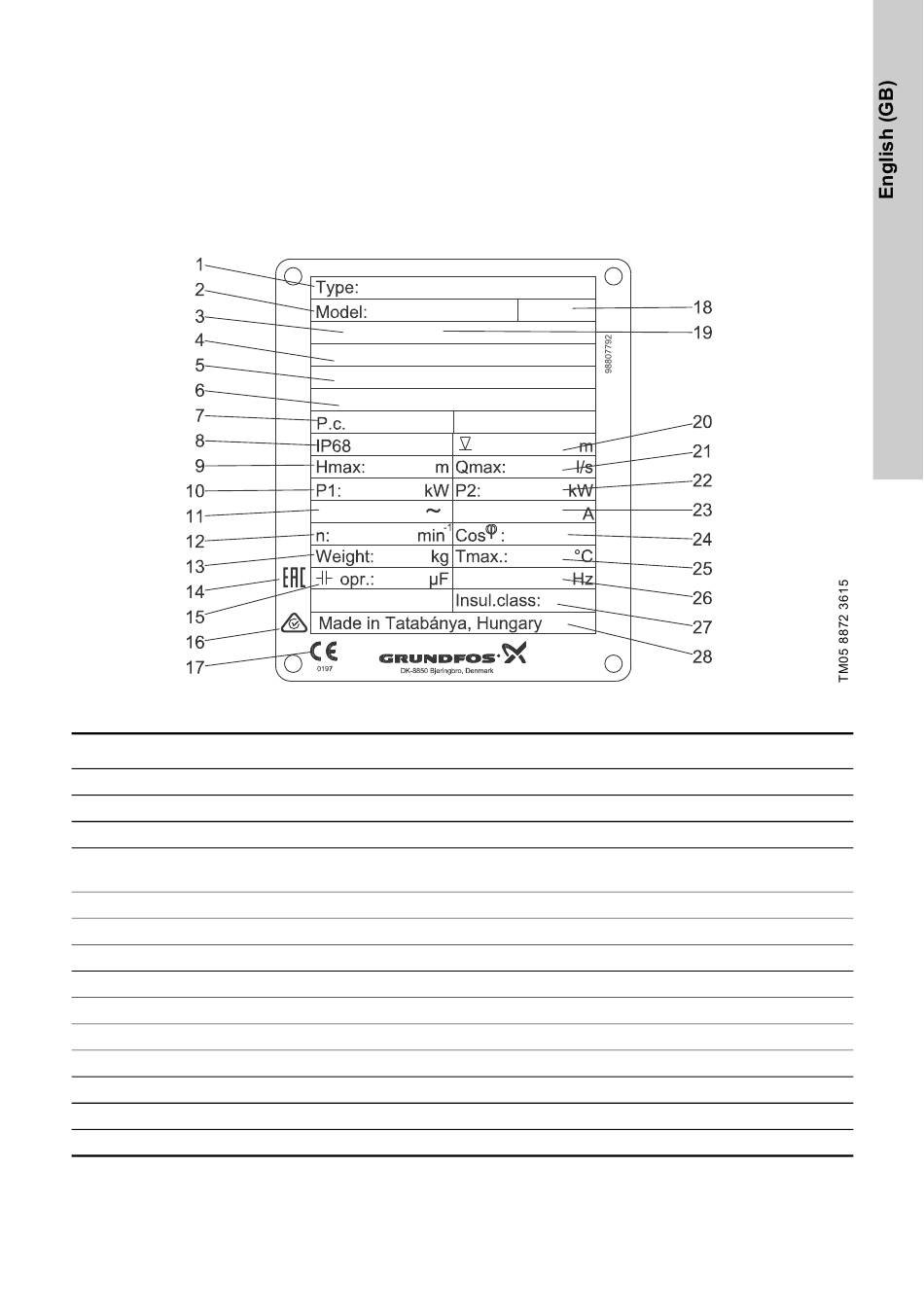

Fig. 3 SEG AUTO
ADAPT
Pos. Description
1 Type designation
2 Product number
3 Approval
4 ATEX certificate number
5 IEC Ex description
6 IEC Ex certificate number
7 Production code (year/week)
8 Enclosure class to IEC
9 Maximum head [m]
10 Rated input power [kW]
11 Rated voltage
12 Speed [rpm]
13 Net weight [kg]
14 EAC approval*
* For Russia only.
** For Australia only.
nameplate
Pos. Description
15 Run capacitor [µF]
16 C-tick approval**
17 CE mark

Installation and operating instructions,

18
publication number
19 Ex description
20 Maximum installation depth [m]
21 Maximum flow rate [l/s]
22 Rated power output [kW]
23 Maximum current [A]
Cos φ, 1/1 load
24
25 Maximum liquid temperature [°C]
26 Frequency [Hz]
27 Insulation class/temperature rise
28 Production country
