2. General description

SEG AUTO pumps are ideal for use in sparsely
ADAPT
populated areas where gravity sewage systems are
not available.
SEG AUTO pumps are designed with a grinder
ADAPT
system which grinds solid particles into small pieces
so that they can be led away through discharge
pipes of a relatively small diameter.
Warning
Special conditions for safe use of SEG
explosion-proof pumps:
• Bolts used for replacement must be
class A2-70 or better according to EN/
ISO 3506-1.
• The thermal protector in the stator
windings has a nominal switch
temperature of 150 °C and must
guarantee the disconnection of the
power supply. The power supply must
be reset manually.

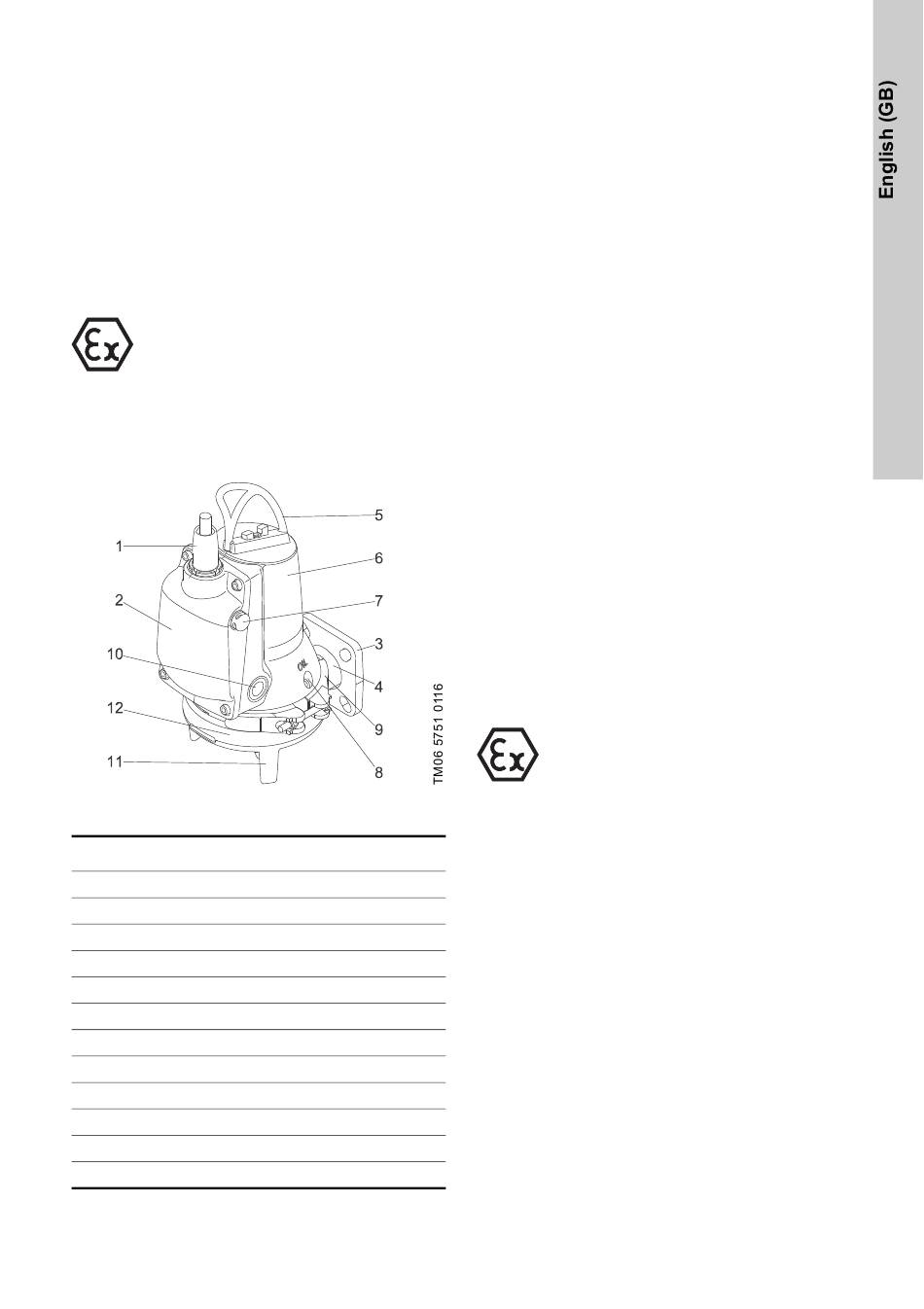

Fig. 1 SEG AUTO
ADAPT
Pos. Description
1 Cable plug
2 Electronic unit
3 Discharge flange DN 40
4 Discharge port
5 Lifting bracket
6 Stator housing
7 Level sensor
8 Oil screw
9 Clamp
10 Dry-running sensors
11 Pump foot
12 Pump housing

2.1 Applications

SEG AUTO pumps are designed for pumping
ADAPT
these liquids:
• domestic wastewater with discharge from toilets
• sewage from restaurants, hotels, camping sites,
etc.
The compact design makes the pumps suitable for
both temporary and permanent installation. The
pumps can be installed on an auto-coupling system
or stand freely on the bottom of a pit.

2.2 Operating conditions

SEG AUTO pumps are designed for
ADAPT
intermittent operation (S3). When completely
submerged, the pumps can also operate
continuously (S1). See section
modes.
Installation depth
Maximum 10 metres below liquid level.
Operating pressure
Maximum 6 bar.
Number of starts per hour
Maximum 30.
pH value
Pumps in permanent installations can be used for
pumping liquids with a pH value between 4 and 10.
Liquid temperature
0-40 °C.
For short periods (maximum 10 minutes), a
temperature of up to 60 °C is permissible (standard
versions only).
Warning
Explosion-proof pumps must never pump
liquids with a temperature higher than 40
°C.
Density of pumped liquid
3
Maximum 1000 kg/m .
In case of higher values, see Grundfos Product
Center on www.grundfos.com or contact Grundfos.
