5.3 Installing the roof flue
WARNING
WARNING
VARNING
WARNING VARNING
Fire/explosion hazard
The exhaust temperature from the LPG burner can be up to 200 °C.
Never place flammable materials and fluids near the flue.
The boiler must only be fitted with an original flue from Alde. The flue must never be blocked.
The roof flue must be installed on a level surface (roof incline of max. 30° can be acceptable).
• Objects must not be installed on the roof within a radius of 200 mm from the flue.
• Lateral distance to the ventilation intake must be at least 300 mm.
• Mark the centre of the point where the flue is to be installed, and drill a 76 mm hole through the roof.
• Pass the flue up through the ceiling. Seal using the collar (Fig. 4, item 1) and roof (Fig. 4, item 2)
use a bodywork sealant and 6 self-tapping screws to secure the flue.

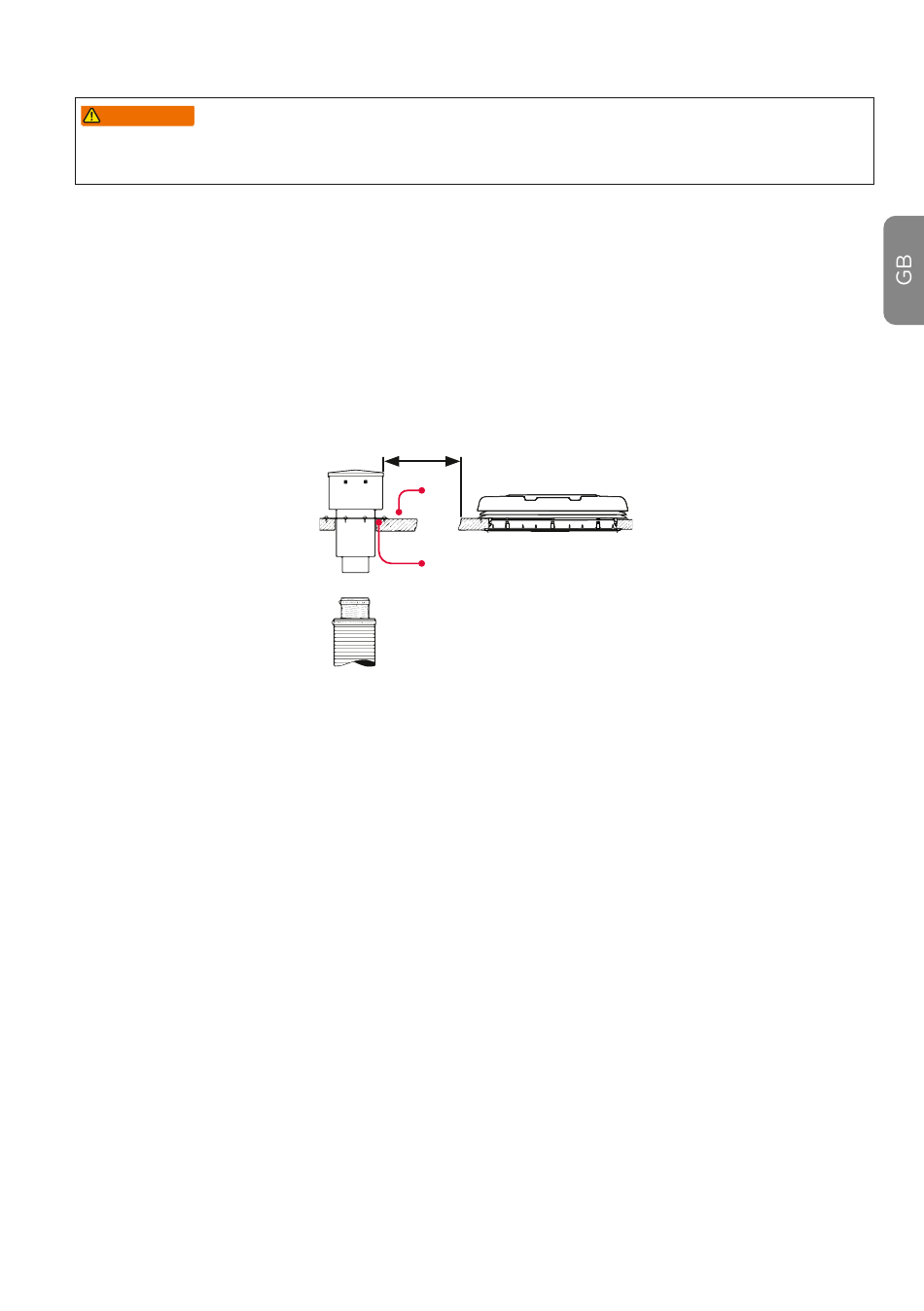

Fig. 4, Installing a roof flue
300 mm
2
1
