3. Technical data
Dimensions/weight/gas
Height x depth x width:
Weight:
Gas:
Output 1:
- Consumption:
Output 2:
- Consumption:
Pressure:
Volume/pressure/temperature
Fluid volume, radiator water:
Fluid volume, tank hot water:
Maximum pressure radiator water:
Maximum pressure tank hot water:
Maximum system temperature
230-240 VAC
Output element (2 or 3 kW):
12 V DC
Actual consumption
Fuse
CAUTION
Hot surfaces
Always take care with hot surfaces marked in red,
see Fig. 1, when the system is in use.

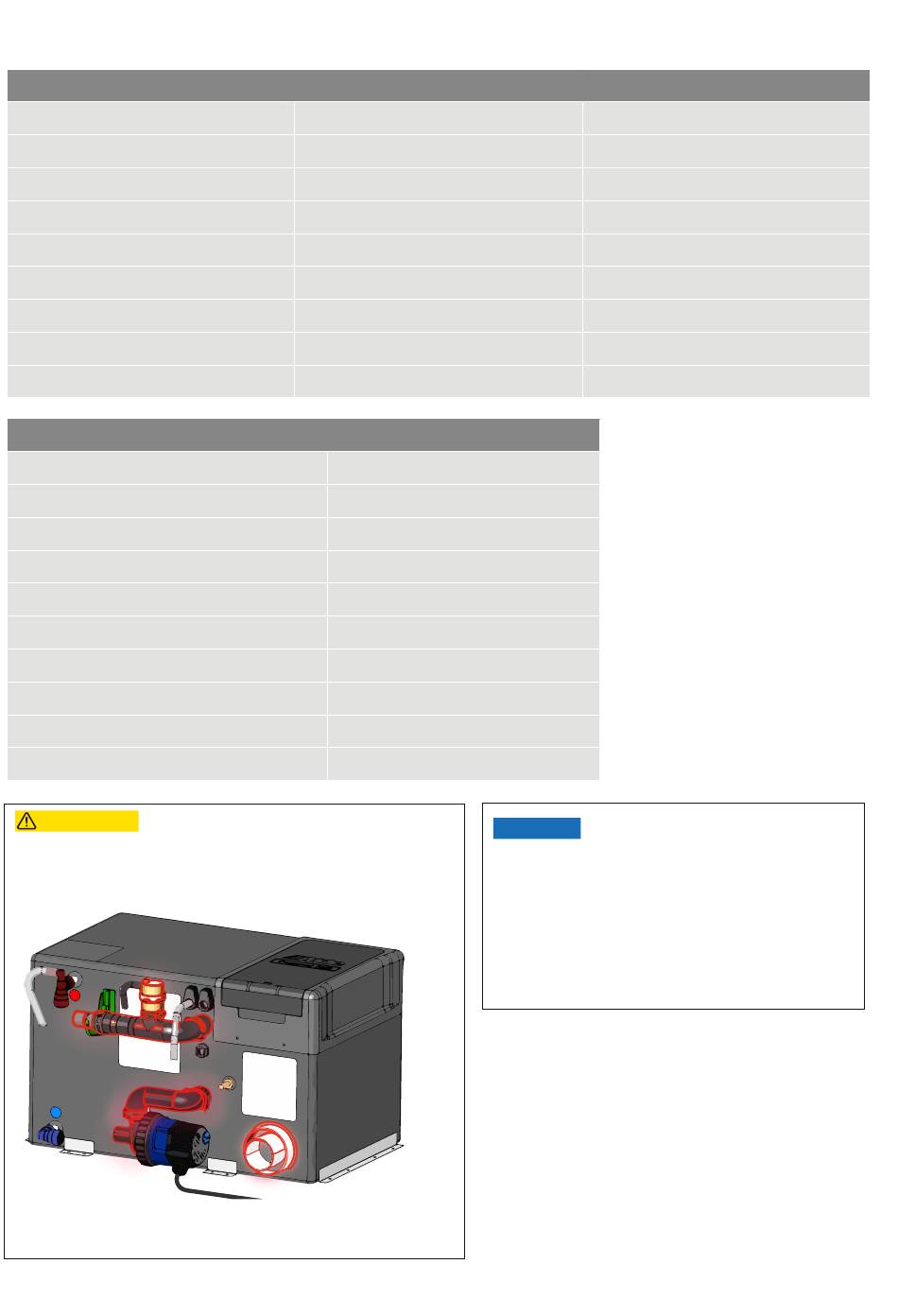

Fig. 1, Alde Compact Boiler 3030/3030 Plus
36
310 x 340 x 510 mm
14 kg (without fluid)
Propane
3.3 kW
245 g/h
5.5 kW
405 g/h
I 28–30/37 mbar
3+
3.5 L
10 L
0.05 MPa (0.5 bar)
0.3 MPa (3.0 bar)
80 °c
1x 1050 W, 1 x 2100 W
Max. 1.9 A
3.15 A
Butane
3.8 kW
275 g/h
6.4 kW
460 g/h
I 30 mbar
3B/P
NOTICE
For system construction and use
of 16 mm pipes/hoses for single pipe
system, the system must have a max.
length of 20 m and max. 10 bends
in each zone loop.
