104 | ORBEA

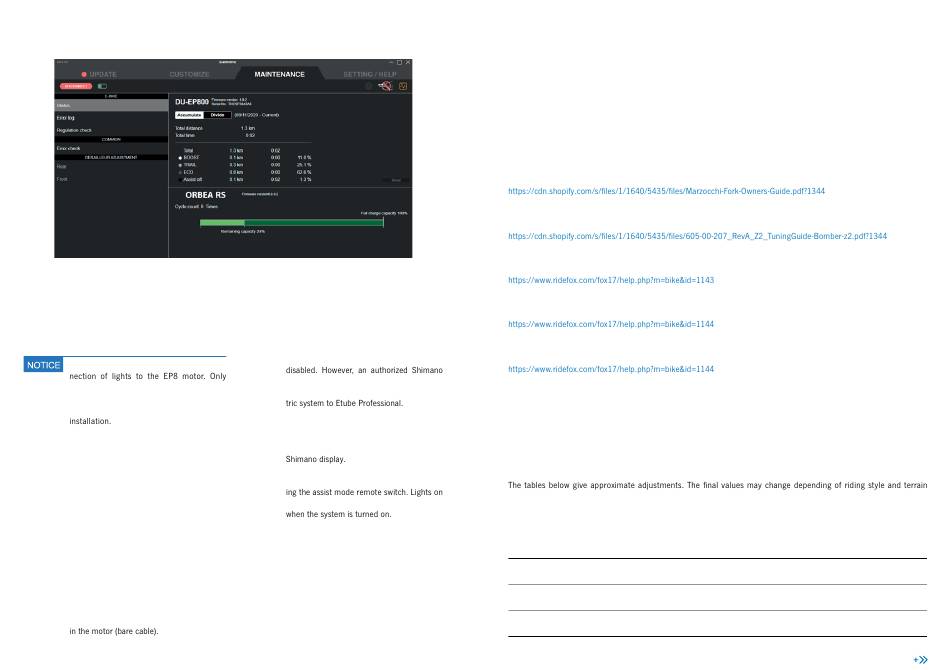

CONNECTION OF LIGHTS
TO THE EP8 RS SYSTEM
Rise is not designed to allow for the con-
the user and/or the Shimano dealer that
decide to install lights to the EP8 motor on
Rise are responsible for the results of this
IMPORTANT: Installing ligths to the EP8
motor can considerably reduce the avail-
able range.
IMPORTANT: The cable managing solutions
on Rise are not designed or tested to allow
for an extra cable to be run through the
frame ports. Damages to the components
derived from installing extra cables on
Rise are not covered by the warranty con-
ditions. Only the user and/or the Shimano
dealer that decide to install lights to the
EP8 motor on Rise are responsible for
the results of this installation.
The Shimano EP8 motor allows for the con-
nection of lights to the dedicated connector
TECHNICAL MANUAL
Rise leaves Orbea with the light connector
dealer can activate these connectors using
the SM-PCE02 interface to connect the elec-
It is possible to choose whether the lights will
activate on as soon as the system is turned
on or that the user turns them on through the
It is not possible to turn the lights on only us-
models without a display should be activated
IMPORTANT: Laws in some countries may
make compulsory that an ebike automati-
cally reserves a certain percentage of the
battery charge to power the lights for a
given ammount of time when the battery
has a low remaining charge, disabling the
motor assist to power only the lights. Al-
ways follow the laws of the territory you
are using your bike at.
B LUE PAP ER R I SE · H YD R O 2022

1 4 S US PE NS I ONS

FOX AND MARZOCCHI FORKS SETTINGS

MANUFACTURER´S MANUALS
MARZOCCHI FORKS USER MANUAL:
MARZOCCHI BOMBER Z2 SETTINGS GUIDE:
FOX 34 FACTORY FIT4 3 POSITIONS SETTINGS GUIDE:
FOX 36 PERFORMANCE GRIP SETTINGS GUIDE:
FOX 36 FACTORY GRIP2 SETTINGS GUIDE:
FOX AND MARZOCCHI FORKS RECOMMENDED SAG
AND AIR PRESSURE GUIDE:
conditions:
RECOMMENDED SAG
MARZOCCHI BOMBER Z2
FOX 34 FLOAT
FOX 36 FLOAT
ORBEA | 105
E N
Fork´s total 15% SAG 20% SAG
travel (Firm) (Soft)
140mm 21mm 28mm
140mm 21mm 28mm
150mm 23mm 30mm
