110 | ORBEA
F OX SH O CKS
A DJ USTME N TS
MANUFACTURER´S MANUALS
FOX FLOAT DPS AND FLOAT X SHOCKS MANUAL:
-
FOX FLOAT DPS AND FLOAT X SHOCKS
AIR PRESSURE RECOMMENDATIONS
values may change depending of riding style and terrain
conditions:
RECOMMENDED SAG MEASUREMENT 25% - 30%
SAG 25% on 210x55 shock.
13.75 mm
Equivalence in mm
SAG 30% on 210x55 shock.
16.5 mm
Equivalence in mm
Adjust the shock´s air pressure until the desired SAG is
Once the desired SAG is achieved, adjust the Rebound
TECHNICAL MANUAL

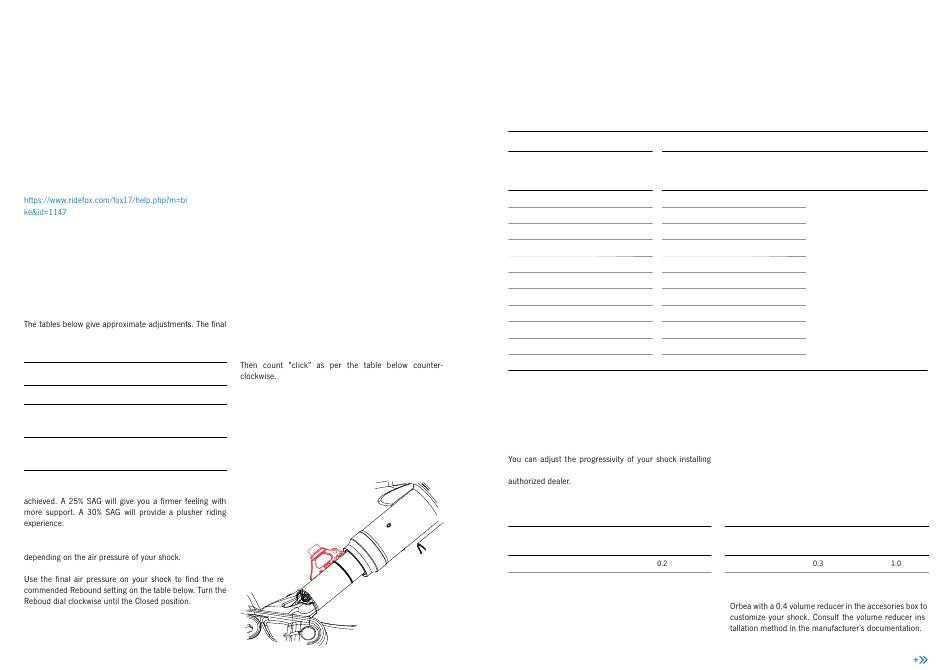

You can use the integrated SAG measurement on the
linkage preload tool to measure a 30% SAG.
-
B LUE PAP ER R I SE · H YD R O 2022
FOX FLOAT DPS AND FLOAT X SHOCKS SUGGESTED COMPRESSION
AND REBOUND ADJUSTMENTS
SUGGESTED COMPRESSION AND REBOUND SETTINGS: Based on air pressure once the target SAG has been reached
FOX FLOAT DPS
Recommended
Air pressure Air pressure
rebound
(psi)
setting (clicks)
<100 Open
100-120 11 100-120
120-140 10 120-140
140-160 9 140-160
160-180 8 160-180
180-200 7 180-200
200-220 6 200-220
220-240 5 220-240
240-260 4 240-260
260-280 3 260-280
280-300 Close 280-300
AIR VOLUMEN REDUCERS
ON FOX SHOCKS
air volume reducers, which you can purchase from a Fox
FOX FLOAT DPS VOLUME REDUCER CONFIGURATION
Reducers volume installed
Shock size
from factory
210x55
FOX FLOAT X
Recommended
rebound Low speed compression LSC
(psi)
setting (clicks)
<100 10
10
9
8
7
Turn the dial clockwise
for more compression (Firm)
6
and counter-clockwise for
less compression (Soft)
5
4
3
2
1
FOX FLOAT X VOLUME REDUCER CONFIGURATION
Reducers volume Maximum reducers
Shock size
installed from factory
210x55
* The Float X Factory Kashima shocks are delivered from
ORBEA | 111
E N
volume
-
